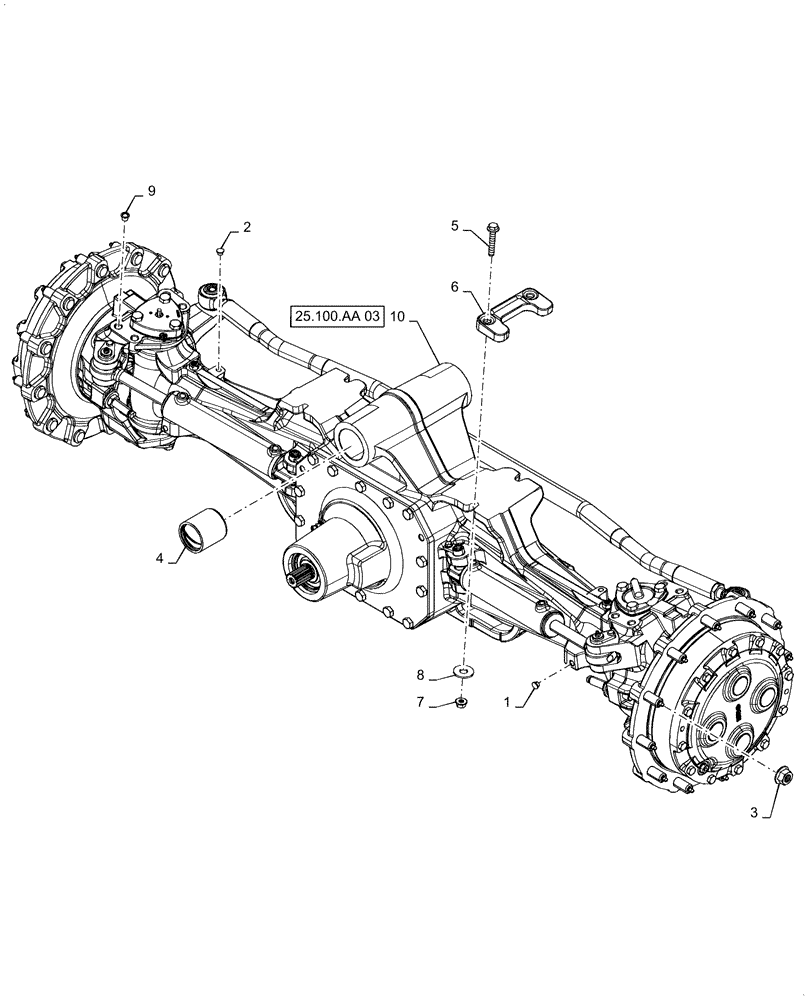

Запчасти Case IH MAGNUM 180 (25.100.AA[02]) - VAR - 429327 - AXLE COMPONENTS - CL 4 (25) - FRONT AXLE SYSTEM

1

1533637C1

PLUG

12.5 OD x 7.5 ID

6шт.

2

87644289

PLUG

.485 OD x .357 ID. TAPERED CAP BLK

2шт.

3

253212A1

NUT,M20 x 1.5, Class 10

M20-1.5 HX x FLG CL 10

24шт.

4

87433501

BUSHING,60.46mm ID x 74.97mm OD x 75.78mm L

MFD Axle Pivot Pin

2шт.

5

844-12070

BOLT,Hvy Hex, M12 x 70mm, Cl 8.8

4шт.

6

297333A2

BLOCK ASSY.

Oscillation Stop

2шт.

7

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

4шт.

8

495-21069

WASHER,5/8"

4шт.

9

353-77

PLUG,Cap, .576" OD

8шт.

10

47438136

STEERING AXLE

Front, CL 4

1шт.
