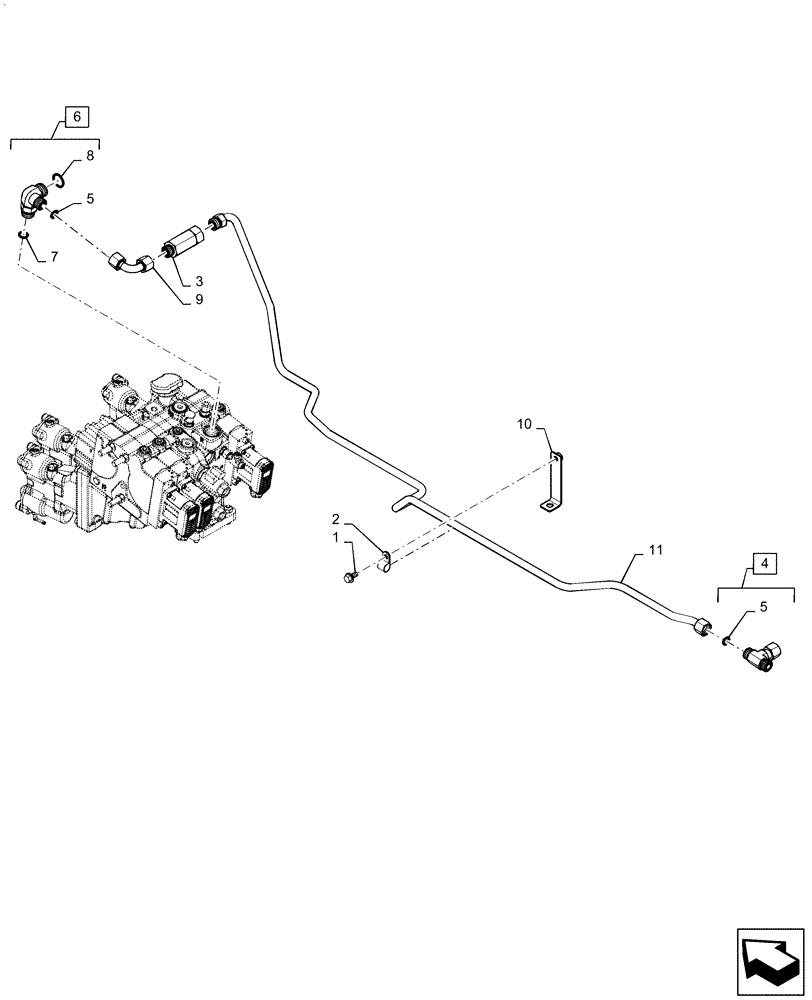

Запчасти Case IH MAGNUM 180 (21.506.BC[02]) - VAR - 420104, 420105 - TRANSMISSION OIL COOLER, PIPES & SUPPORTS - CVT - BSN - ZERH08099 (21) - TRANSMISSION

1

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

2

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

84197114

FILTER

Hyd Oil, w/Check Valve

1шт.

4

5197110

TEE,1"-14 UNS

Incl 5

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

6

87519151

HYD CONNECTOR,1"3/16-12 x M27 x 2 x 1"14

Incl 5, 7 - 8

1шт.

7

14438185

O-RING,24mm ID x 3mm

1шт.

8

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

9

84546907

TUBE

Lube Pipe From Remote

1шт.

10

84359294

BRACKET

PTD

1шт.

11

47397033

TUBE

Lube Pipe From Remote

1шт.
