Запчасти Case IH MAGNUM 180 (21.506.AI[02]) - VAR- 420104, 420105 - HYDRAULIC LINES, TRANSMISSION CONTROL - CVT (21) - TRANSMISSION

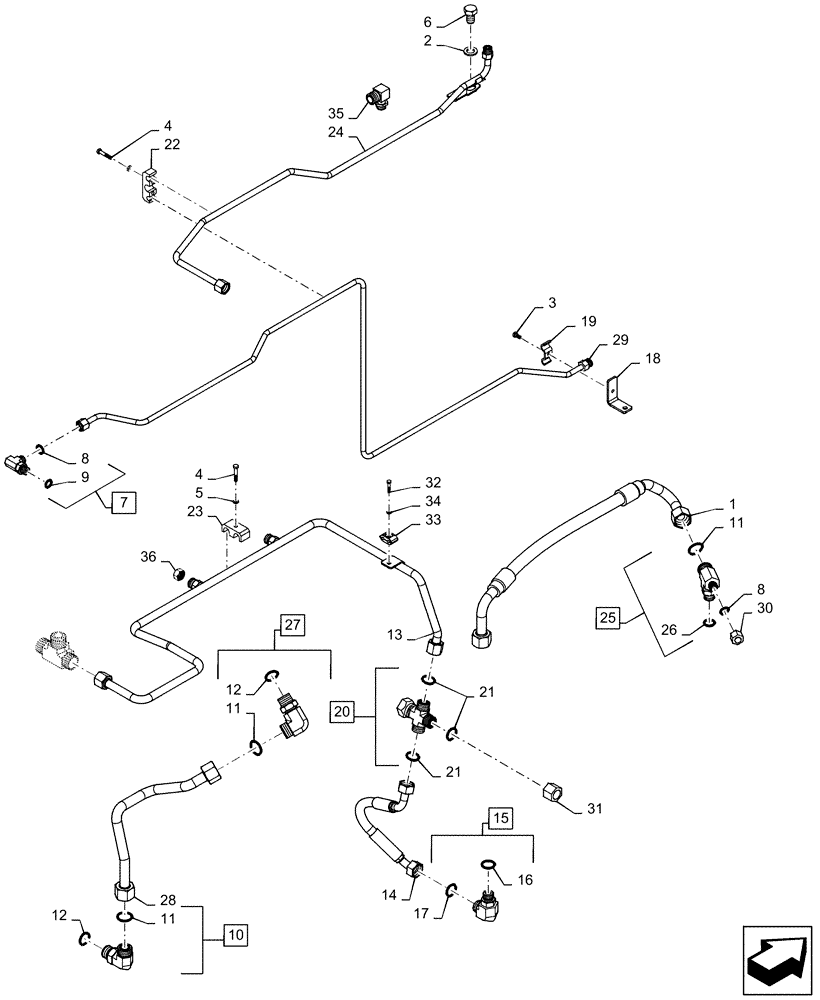

Схема запчастей Case IH MAGNUM 180 - (21.506.AI[02]) - VAR- 420104, 420105 - HYDRAULIC LINES, TRANSMISSION CONTROL - CVT (21) - TRANSMISSION
4
17
12
20
21
12
3
34
2
21
6
29
27
30
13
11
7
19
15
26
36
11
32
8
24
18
11
16
5
33
8
14
1
31
9
4
35
23
25
10
28
22

Артикул

Название

Примечание

Количество

1

84606700

HYD TUBE

Supply Oil To Transmission

1шт.

2

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

3

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

4

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

3шт.

5

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

6

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

1шт.

7

5195456

HYD CONNECTOR

Incl 8, 9, Serial Range: -ZERH08099

1шт.

7

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

Incl 8, 9, Start Serial: ZERH08100

1шт.

8

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

, Serial Range: -ZERH08099

2шт.

8

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

, Start Serial: ZERH08100

1шт.

9

14437885

O-RING,13.30mm ID x 2.40mm

, Serial Range: -ZERH08099

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

, Start Serial: ZERH08100

1шт.

10

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

Incl 11, 12

1шт.

11

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

3шт.

12

14438185

O-RING,24mm ID x 3mm

2шт.

13

47567884

PIPE

Supply To Services

1шт.

14

84467620

HOSE,12.7mm ID x 405mm L, SAE 100R1

Supply To Wave Block

1шт.

15

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 16, 17

1шт.

16

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

87567663

BRACKET

1шт.

19

87567664

CLAMP BRACKET

1шт.

20

87608130

HYD CONNECTOR

Incl 21

1шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

22

87608152

CLAMP BRACKET

1шт.

23

87608306

CLAMP BRACKET

1шт.

24

47439672

PIPE

Inlet, Booster Brakes, Serial Range: -ZERH08099

1шт.

24

47439672

PIPE

Inlet, Booster Brakes, Start Serial: ZERH08100

1шт.

25

87687885

HYD CONNECTOR

Incl 8, 11, 26

1шт.

26

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

27

87722754

HYD CONNECTOR,M27 x 2

Incl 11, 12

1шт.

28

87722757

HYD TUBE

1шт.

29

87758497

HYD TUBE

Front Diff. Lock

1шт.

30

9625546

CAP,11/16" - 16 ORFS

1шт.

31

9840576

CAP,1" - 14 ORFS

1шт.

32

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

, Serial Range: -ZFRH05000

1шт.

33

87738904

CLAMP BRACKET

, Serial Range: -ZFRH05000

1шт.

34

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

, Serial Range: -ZFRH05000

1шт.

35

82037643

HYD CONNECTOR

To Oil Cooler Line

1шт.

36

9840575

CAP,13/16" - 16 ORFS

, Start Serial: ZERH08100

1шт.

Выбрано товаров: 40
