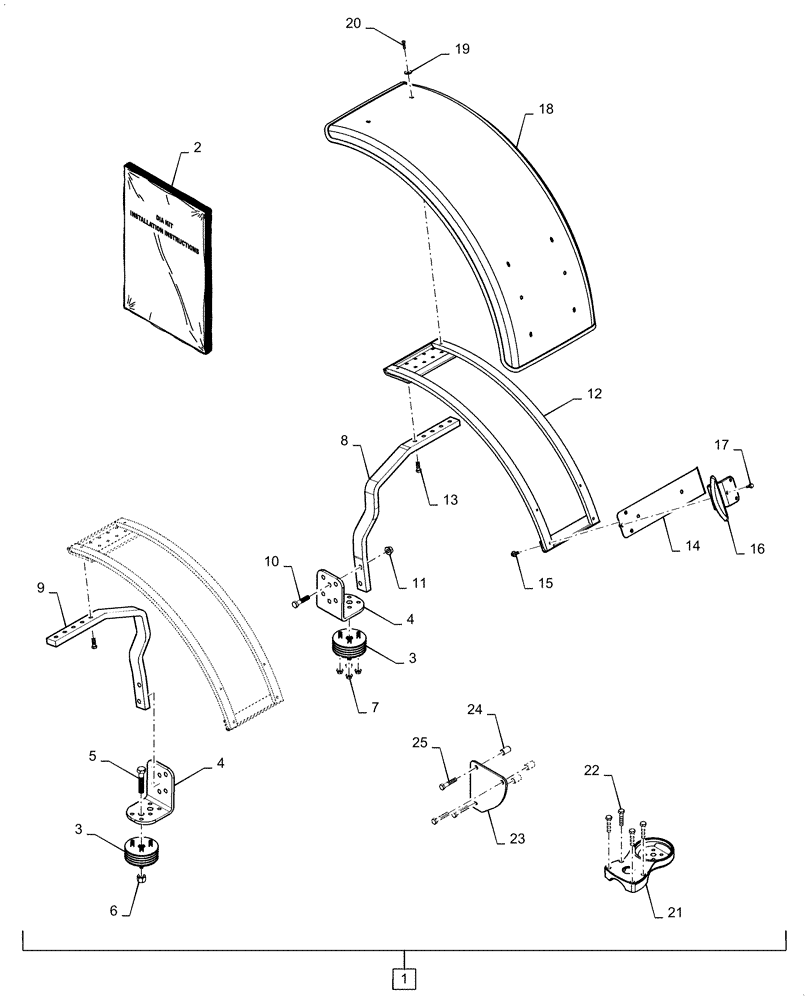

Запчасти Case IH MAGNUM 180 (88.100.90[10]) - DIA KIT, TRACTOR, FENDERS, NARROW - CL 4.75 (88) - ACCESSORIES

1

47808589

DIA KIT, TRACTOR

Fenders, Narrow - CL 4.75; Incl 2 - 25

1шт.

2

47808576

INSTRUCTION

Fenders, Narrow - CL 4.75

1шт.

3

226690A2

RUBBER BUMPER

Fender Mount

2шт.

4

84546385

SUPPORT

Fender, Upper

2шт.

5

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

6

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

7

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

8

47796421

SUPPORT

RH, Fender Bar

1шт.

9

47796426

SUPPORT

LH, Fender Bar

1шт.

10

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

11

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

12

87411717

FRAME

Fender Support

2шт.

13

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

6шт.

14

47357515

SUPPORT

Fender Bumper Bar

2шт.

15

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

16

84546378

BUMPER

Fender

2шт.

17

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

18

84283483

FENDER

Narrow, 540mm

2шт.

19

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

8шт.

20

9849829

SCREW,M8 x 1.25 x 30mm

8шт.

21

84573070

BRACKET

Fender, Lower

2шт.

22

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

8шт.

23

47535226

PAD

Fender, Stop

1шт.

24

84580679

SPACER

Fender Bumper Plate

1шт.

25

9843612

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.
