Запчасти Case IH MAGNUM 180 (88.100.35[06]) - DIA KIT, TRACTOR, MID MOUNT VALVES 1ST AND 2ND SECTIONS, CVT (88) - ACCESSORIES

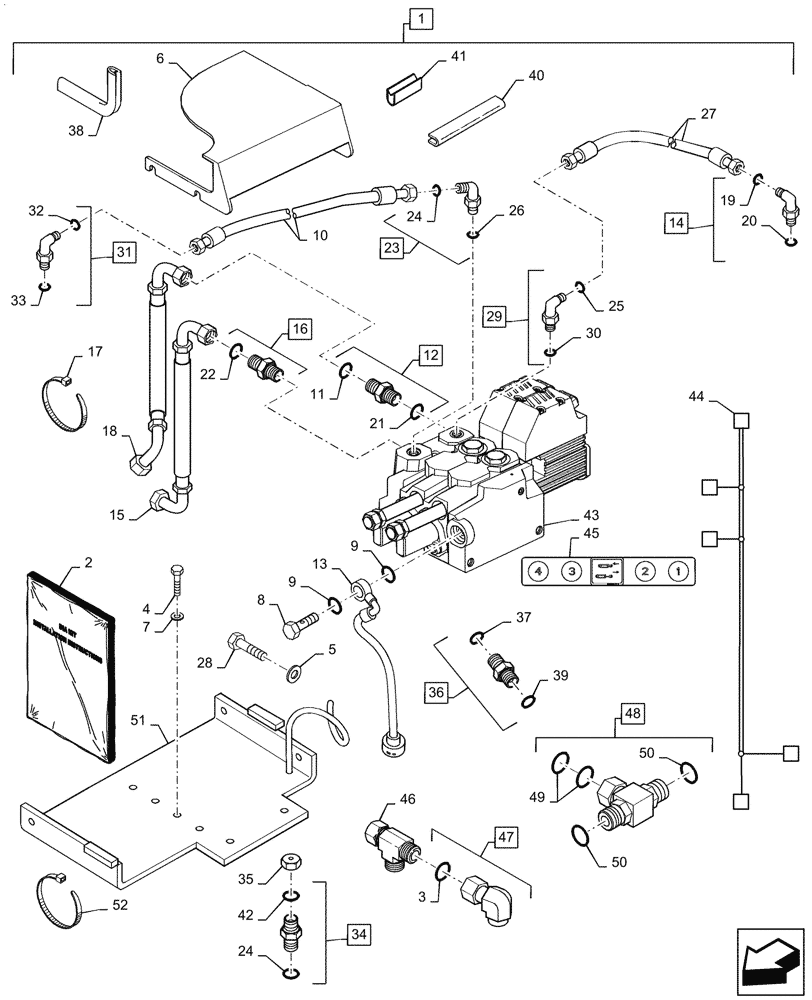

Схема запчастей Case IH MAGNUM 180 - (88.100.35[06]) - DIA KIT, TRACTOR, MID MOUNT VALVES 1ST AND 2ND SECTIONS, CVT (88) - ACCESSORIES
38
7
31
23
41
52
50
29
6
48
11
43
36
26
5
27
30
24
49
2
45
21
10
20
34
9
4
46
17
44
19
22
14
35
39
9
40
16
28
24
51
3
1
32
13
25
18
42
47
8
33
15
50
37
12

Артикул

Название

Примечание

Количество

1

47463297

DIA KIT, TRACTOR

Mid Mount Valve 1st and 2nd Sections CVT Incl 2 -

1шт.

2

47731799

INSTRUCTION

Mid Mount Valve 1st and 2nd Sections CVT , Serial Range: -`0

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

5

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

6

87736308

COVER ASSY

1шт.

7

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

10

87616561

HOSE

Length 1200 mm, Pressure Supply

1шт.

11

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

Inc. 11, 21

1шт.

13

87736301

HOSE ASSY.,15.88mm ID x 800mm L, SAE 100R3

Return

1шт.

14

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

Inc. 19, 20

1шт.

15

87616565

HOSE

Length 1430 mm, Load Sense

1шт.

16

5185045

HYD CONNECTOR

Inc. 22

1шт.

17

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

3шт.

18

84231195

HOSE

Length 690 mm, Servo Supply

1шт.

19

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

20

14438185

O-RING,24mm ID x 3mm

1шт.

21

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

22

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

23

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

Inc. 24, 26

1шт.

24

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

25

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

26

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

27

87616564

HOSE

Length 540 mm, Pilot Return

1шт.

28

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

29

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

Inc. 25, 30

1шт.

30

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

31

5194728

90 ELBOW

Inc. 32, 33

1шт.

32

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

33

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

34

5196844

HYD CONNECTOR

Inc. 42, 43

1шт.

35

82016749

PLUG,11/16-16 ORFS

Power Steering

1шт.

36

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Inc. 37, 39

1шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

83964601

MOLDING,164mm L

1шт.

39

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

40

82036856

MOLDING,355mm L

Length 355 mm

1шт.

41

82869674

MOLDING,88.5mm L

Length 88.5 mm

1шт.

42

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

43

84214464

CONTROL VALVE

EH Mid Mount 2 Slice

1шт.

43

84214464R

REMAN-HYD VALVE

Reman EH Mid Mount 2 Slice

1шт.

43

84214464C

CORE-VALVE HYD

Core Return Number

1шт.

44

47650203

WIRE HARNESS

Mid Mount Valves

1шт.

45

82029712

DECAL

1шт.

46

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

Use With Suspended Axle

1шт.

47

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

Use With Suspended Axle, Inc. 3

1шт.

48

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

Incl 49, 50

1шт.

49

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

50

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

51

87598923

SUPPORT

1шт.

52

86566989

CABLE TIE,208mm L

6шт.

Выбрано товаров: 54
