Запчасти Case IH MAGNUM 180 (55.640.BH[03]) - WIRE HARNESS, ISOBUS, MOUNTING PARTS (55) - ELECTRICAL SYSTEMS

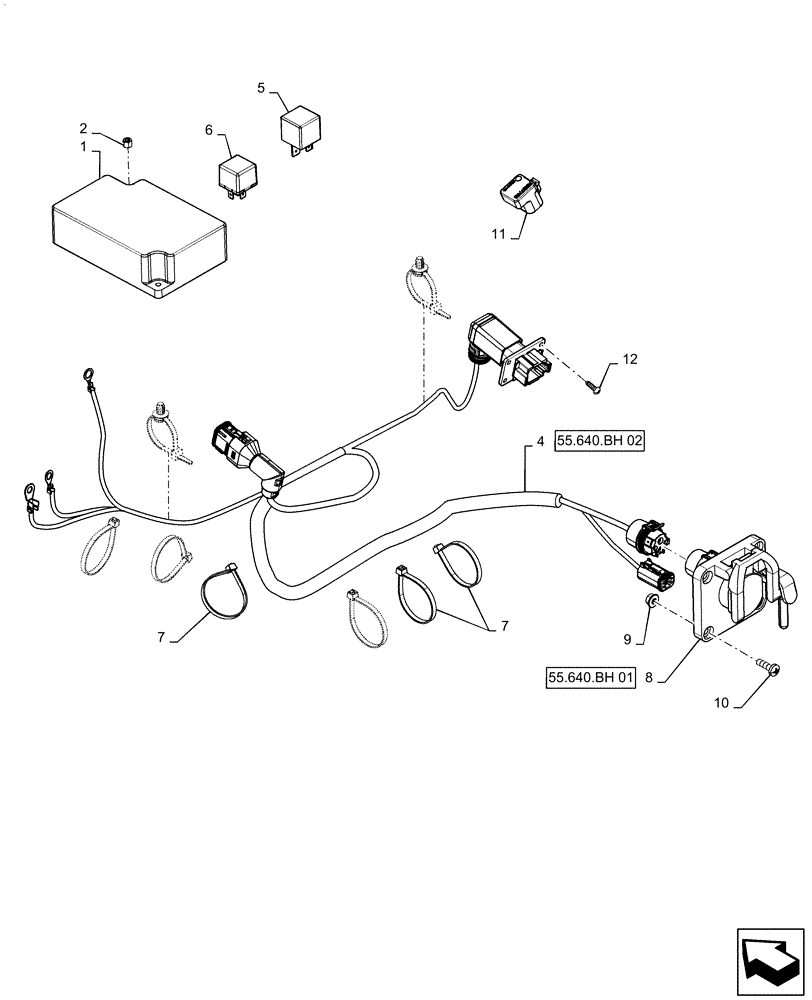

Схема запчастей Case IH MAGNUM 180 - (55.640.BH[03]) - WIRE HARNESS, ISOBUS, MOUNTING PARTS (55) - ELECTRICAL SYSTEMS
55.640.bh 02
12
11
6
55.640.bh 01
7
7
4
8
7
5
10
9
1
2

Артикул

Название

Примечание

Количество

1

47416082

MODULE

Tractor ECU, TECU, Serial Range: -ZERH08099

1шт.

1

47748854

ECU

Tractor ECU, TECU, Start Serial: ZERH08100

1шт.

2

832-10405

NUT,M5 x .8, Cl 8

2шт.

3

87544769

HARNESS

Display Jumper, Not Illustrated

1шт.

4

47699133

WIRE HARNESS

ISO Bus

1шт.

5

84539290

RELAY,12V, 50A

Plug-in, Maxi, SPST

1шт.

6

84543666

RELAY,12V, 40A, Mini

Plug-in, Mini, SPDT

1шт.

7

86566989

CABLE TIE,208mm L

6шт.

8

87522416

ELEC CONNECTOR,Female, 5 Cavities

ISO Bus Breakaway, Rear

1шт.

9

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

10

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

11

87601142

ELEC CONNECTOR,Female, 6 Cavities

ECU Miniature CAN TBC

1шт.

12

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

4шт.

Выбрано товаров: 13
