Запчасти Case IH MAGNUM 180 (10.206.AF) - FUEL FILTER/WATER SEPARATOR (10) - ENGINE

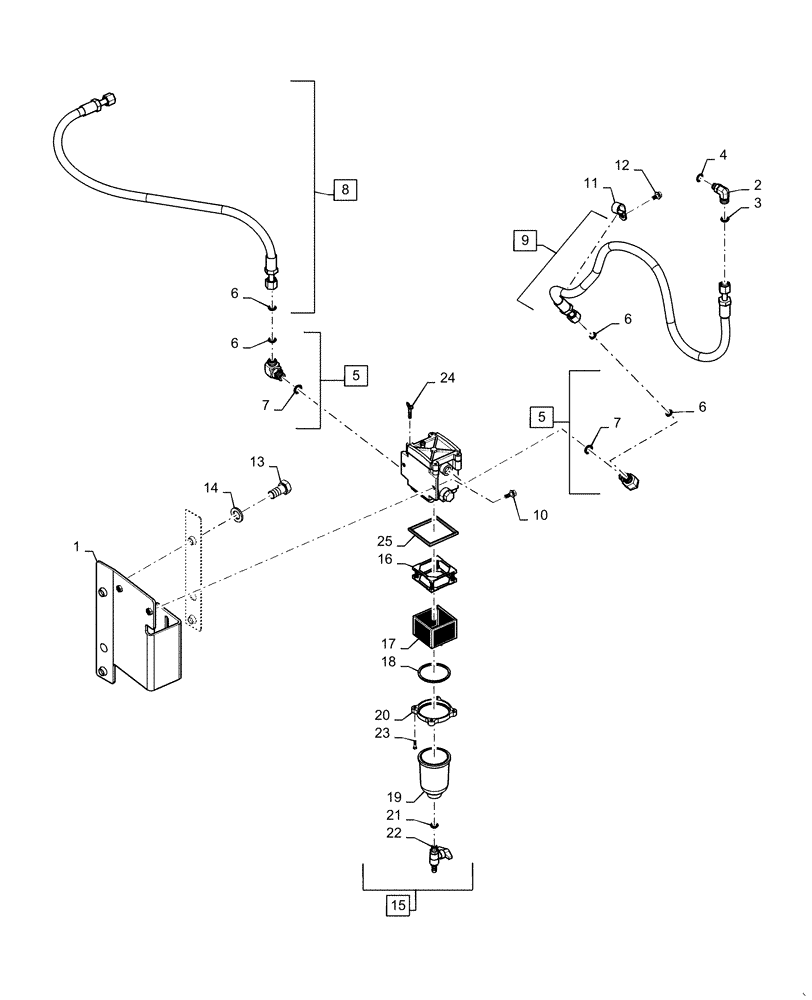

Схема запчастей Case IH MAGNUM 180 - (10.206.AF) - FUEL FILTER/WATER SEPARATOR (10) - ENGINE
12
6
16
15
24
9
18
14
10
23
5
6
7
19
20
25
6
5
6
21
22
7
3
8
2
11
4
17
1
13

Артикул

Название

Примечание

Количество

1

84211781

BRACKET

Fuel/Water Separator

1шт.

2

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

90 M14X1.5 ORB 13/16-16 ORFS; Incl 2, 3

1шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

4

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

5

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

Incl 6, 7

2шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

47410605

FUEL HOSE

Tank to Separator; Incl 6

1шт.

9

47411305

FUEL HOSE

Separator to Pre-Filter; Incl 6

1шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

12

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

13

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

2шт.

14

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

15

87346728

FUEL FILTER

Water Separator; Incl 16 - 25

1шт.

16

336431A1

FRAME

Filter Spring

1шт.

17

336430A1

FUEL FILTER

30 Micron Strainer

1шт.

18

336433A1

SEAL,70mm ID x 78mm OD x 3mm Thk

Bowl Fuel Strainer

1шт.

19

369842A1

FILTER BOWL

Housing

1шт.

20

369841A1

RETAINER

Spearator Filter

1шт.

21

369843A1

O-RING,2.5mm Thk x 10.5mm ID

1шт.

22

369844A1

DRAINCOCK/TAP SUPPLY

1шт.

23

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

4шт.

24

87625617

THUMB SCREW

M5 x 30 ST-A2C DIN316

4шт.

25

336432A1

GASKET

Top Lid Fuel Strainer

1шт.

Выбрано товаров: 25
