Запчасти Case IH MAGNUM 180 (55.510.BP[03]) - WIRE HARNESS, CAB - BSN - ZERH08099 (55) - ELECTRICAL SYSTEMS

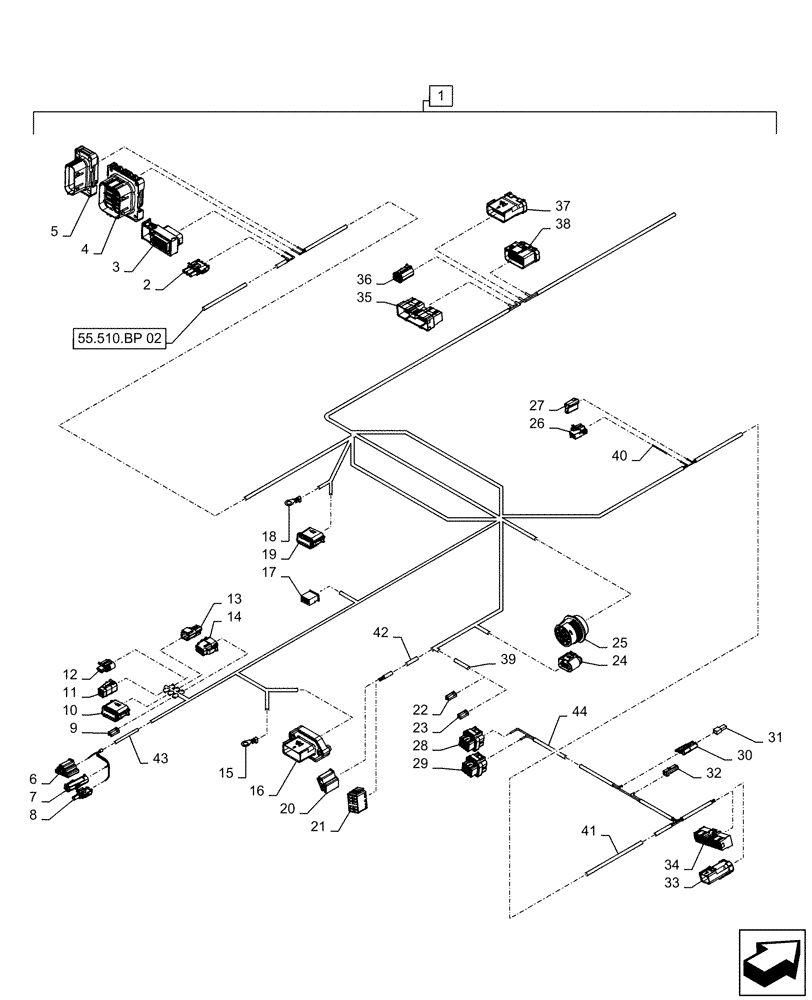

Схема запчастей Case IH MAGNUM 180 - (55.510.BP[03]) - WIRE HARNESS, CAB - BSN - ZERH08099 (55) - ELECTRICAL SYSTEMS
10
27
11
36
32
28
6
24
8
55.510.bp 02
40
43
44
21
41
30
13
5
42
37
38
31
17
23
20
12
14
9
22
4
15
1
33
26
25
3
2
35
19
18
29
34
39
7
16

Артикул

Название

Примечание

Количество

1

47533459

WIRE HARNESS

Cab Main, Incl 2 - 44, Also Incl Fig 55.100.DO[01], 55.510.BP[02], and 55.510.BP[04]

1шт.

2

87644909

WIRE CONNECTOR,Female, 3 Pins

Delphi Weather-Pack 3-way, X-422 NAO/Euro Jumper

1шт.

2

87692882

ELEC. TERMINAL PIN

Delphi Weather-Pack Male

2шт.

2

87692880

CABLE TERMINAL

Delphi Weather-Pack I Male

1шт.

3

87680366

ELEC CONNECTOR,Female, 24 Cavities

FCI SICMA 24-way, X-135 Electronic Flasher

1шт.

3

87708543

CABLE TERMINAL

FCI SICMA-2 Female

4шт.

3

87697192

CABLE TERMINAL,Tin, 1.00 - 2.50mm

FCI SICMA-2 Female 2.8mm

3шт.

3

82028439

TERMINAL CONNECTOR

FCI SICMA-2 Female 2.8mm

2шт.

3

87714248

LOCKING TAB,Wedge Lock

Locking Cam

1шт.

4

84254824

ELEC CONNECTOR

Deutsch SRK FBS 64-way, X-010 To Outside Cab Harness

1шт.

4

87696141

TERMINAL

Deutsch Size 20

56шт.

4

87694144

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Deutsch Size 16

5шт.

4

87695623

ELEC. TERMINAL PIN

Deutsch Size 16

3шт.

5

84254825

ELEC CONNECTOR

Deutsch SRK HBS 32-way, X-008 To Outside Cab Harness

1шт.

5

87696141

TERMINAL

Deutsch Size 20

28шт.

5

87695623

ELEC. TERMINAL PIN

Deutsch Size 16

2шт.

5

87694144

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Deutsch Size 16

1шт.

6

475083C1

CONNECTOR, ELEC

Delphi 56 Series 6-way, X-012 Rotary Worklight Switch

1шт.

6

87697660

TERMINAL

Delphi 56 Series

2шт.

6

87709400

ELEC. TERMINAL PIN

Delphi 56 Series Female

2шт.

7

87693745

ELEC CONNECTOR,Male, Blade

Delphi Weather-Pack 1-way, X-110A Center Worklight Switch

1шт.

7

87692880

CABLE TERMINAL

Delphi Weather-Pack I Male

1шт.

8

87693744

WIRE CONNECTOR

Delphi Weather-Pack 1-way, X-110B Center Worklight Switch

1шт.

8

87692880

CABLE TERMINAL

Delphi Weather-Pack I Male

1шт.

9

87697541

ELEC CONNECTOR

Delphi Metri-Pack .150 2-way, X-050 Clutch Switch BOC (N/C)

1шт.

9

87693329

TERMINAL

Delphi Metri-Pack .150 Female

2шт.

9

87705061

RETAINER

Gray Secondary Lock, 2-way

1шт.

10

87695592

CONTACT HOUSING,Female, 12 Pole

Deutsch DT Series 12-way, X-009 Turn Signal Switch

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Deutsch Size 16

11шт.

10

87695651

LOCKING TAB,Wedge Lock

Deutsch Wedge Lock 12-way

1шт.

11

87700107

ELEC CONNECTOR

Deutsch DTM Series 6-way, X-054 FNRP

1шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Deutsch Size 20

5шт.

11

87705582

ELEC CONNECTOR

Deutsch Wedge Lock 6-way

1шт.

12

198550A1

CONNECTOR, ELEC

Delphi Metri-Pack .150 3-way, X-052 Master Clutch Pedal Pod

1шт.

12

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Delphi Metri-Pack .150 Female

3шт.

13

87696547

ELEC CONNECTOR,Female, 2 Cavities

Deutsch DTM Series 2-way, X-1122 Autoguidance Sensor

1шт.

13

87696141

TERMINAL

Deutsch Size 20

2шт.

13

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Deutsch Wedge Lock 2-way

1шт.

14

87700332

ELEC CONNECTOR

Deutsch DTM Series 8-way, X-051 FNRP

1шт.

14

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Deutsch Size 20

8шт.

14

87705584

ELEC CONNECTOR

Deutsch Wedge Lock 8-way

1шт.

15

NSS

NOT SOLD SEPARAT

TERMINAL M8 Ring, X-189 Front Inside Firewall, Incl in 1

1шт.

16

84574704

ELEC CONNECTOR

FCI Apex 2.8mm 14-way, X-109 To Hood Harness

1шт.

16

84395363

TERMINAL

FCI Apex 2.8mm Male

8шт.

17

87746043

ELEC CONNECTOR,Female, 8 Cavities

COBO 4-way, X-3570 Jake Brake

1шт.

17

87697619

TERMINAL

Fastin-Faston Receptacle 6.35-NIB

2шт.

18

NSS

NOT SOLD SEPARAT

TERMINAL M8 Ring, X-172 RH Rear Cab Wall, Incl in 1

1шт.

19

87695592

CONTACT HOUSING,Female, 12 Pole

Deutsch DT Series 12-way, X-133 Seat Assembly

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Deutsch Size 16

8шт.

19

87695651

LOCKING TAB,Wedge Lock

Deutsch Wedge Lock 12-way

1шт.

20

87693713

ELEC CONNECTOR,Female, 6 Cavities

Delphi 56 Series 6-way, X-161 Ignition Switch

1шт.

20

87697660

TERMINAL

Delphi 56 Series Receptacle

1шт.

20

87709400

ELEC. TERMINAL PIN

Delphi 56 Series Female

1шт.

21

87426885

CONNECTOR, ELEC

Carlingswitch VP Series 10-way, X-011 Headlight Switch, X-127 Headlight Diode

1шт.

21

87697756

TERMINAL

Delphi Metri-Pack .630 Female

3шт.

21

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Delphi Metri-Pack .630

1шт.

22

87697541

ELEC CONNECTOR

Delphi Metri-Pack .150 2-way, X-162 LH Brake Switch

1шт.

22

87693329

TERMINAL

Delphi Metri-Pack .150 Female

2шт.

22

87705061

RETAINER

Delphi Gray Secondary Lock 2-way

1шт.

23

87697541

ELEC CONNECTOR

Delphi Metri-Pack .150 2-way, X-163 RH Brake Switch (NC)

1шт.

23

87693329

TERMINAL

Delphi Metri-Pack .150 Female

2шт.

23

87705061

RETAINER

Delphi Gray Secondary Lock 2-way

1шт.

24

87702265

ELEC CONNECTOR

AMP Micro Timer II 8-way, X-164 Foot Throttle

1шт.

24

87495862

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

AMP Micro Timer II Receptacle

6шт.

25

84400777

LOCKING TAB,Wedge Lock

Deutsch HDP20 Series 31-way, X-060 To Engine Harness

1шт.

25

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Deutsch Size 16

26шт.

25

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Deutsch Size 16

1шт.

25

84420455

LOCK WASHER,48mm ID x 45.8mm OD

1шт.

25

87271930

NUT

1шт.

26

87697646

ELEC CONNECTOR

Delphi Metri-Pack .280 3-way, X-165A Aux Power (A-Post)

1шт.

26

225267C1

TERMINAL CONNECTOR

Delphi Metri-Pack .280 Female

2шт.

26

87693308

CONNECTION,ELECTRIC

Delphi Metri-Pack .280 Female

1шт.

26

87705093

RETAINER

Delphi Gray Secondary Lock 3-way

1шт.

27

87693325

ELEC CONNECTOR,Female, 2 Cavities

Delphi 56 Series 2-way, X-171 Radar

1шт.

27

87709400

ELEC. TERMINAL PIN

Delphi 56 Series Female

2шт.

28

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

AMP Superseal 1.0 26-way, X-426 ICU CN3

1шт.

28

82017048

CABLE TERMINAL

AMP Superseal 1.0

10шт.

28

87410950

ELEC. TERMINAL PIN,Female

AMP Superseal 1.0

5шт.

29

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

AMP Superseal 1.0 26-way, X-427 ICU CN1

1шт.

29

82017048

CABLE TERMINAL

AMP Superseal 1.0

14шт.

30

87693717

ELEC CONNECTOR

Delphi 56 Series 1-way, X-267A High Beam

1шт.

30

225114C1

CONTACT

Delphi 56 Series Male Long

1шт.

31

113699A1

RECTIFIER

Inline Rectifier, 12V 1A

1шт.

32

87688695

ELEC CONNECTOR,Female, 1 Cavity

Delphi 56 Series 1-way, X-267B High Beam

1шт.

33

87382919

WIRE CONNECTOR,Male, 6 Cavities

FCI Apex 2.8mm 6-way, X-111 Power Mirror Connector

1шт.

33

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

FCI Apex

6шт.

34

196155A1

CONNECTOR, ELEC

Delphi ACT 280 23-way, X-013 To Roof Harness

1шт.

34

221390A1

CONNECTOR, ELEC

Delphi ACT 280 Female

14шт.

34

221389A1

CONNECTOR, ELEC

Delphi ACT 280 Female

7шт.

34

87704911

RETAINER

Delphi Blue Secondary Lock 5-way

2шт.

34

87704912

RETAINER

Delphi Blue Secondary Lock 13-way

1шт.

35

87698645

ELEC CONNECTOR

Delphi ACT 280 23-way, X-139A HVAC Control

1шт.

35

87697766

TERMINAL

Delphi ACT 280 Male

8шт.

35

87697765

TERMINAL

Delphi ACT 280 Male

5шт.

35

87704911

RETAINER

Delphi Blue Secondary Lock 5-way

2шт.

35

87704912

RETAINER

Delphi Blue Secondary Lock 13-way

1шт.

36

87694153

CONTACT HOUSING,Female, 4 Cavities

Deutsch DT Series 4-way, X-381 HVAC Controller

1шт.

36

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Deutsch Size 16

4шт.

36

84074640

LOCKING TAB,Wedge Lock

Deutsch Wedge Lock 4-way

1шт.

37

87382927

ELEC CONNECTOR,Male, 14 Cavities

FCI Apex 2.8mm 14-way, X-281 To Armrest Harness

1шт.

37

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

FCI Apex

12шт.

37

84395363

TERMINAL

FCI Apex 2.8mm Male

2шт.

38

87382928

WIRE CONNECTOR,Female, 14 Cavities

FCI Apex 2.8mm 14-way, X-280 To Armrest Console

1шт.

38

84395356

TERMINAL,Female, 2.8mm, 18-20

FCI Apex 2.8mm Female

12шт.

38

84395358

TERMINAL

FCI Apex 2.8mm Female

2шт.

39

84121540

PLASTIC-RUBBER TUBE

Conduit NW7.5, Cut To Length

1шт.

40

84121541

CONDUIT

NW8.5, Cut To Length

1шт.

41

84121547

CONDUIT

NW26, Cut To Length

1шт.

42

87494032

CONDUIT

NW13, Cut To Length

1шт.

43

87494208

CONDUIT

NW10, Cut To Length

1шт.

44

87690596

CONDUIT

NW22, Cut To Length

1шт.

Выбрано товаров: 111
