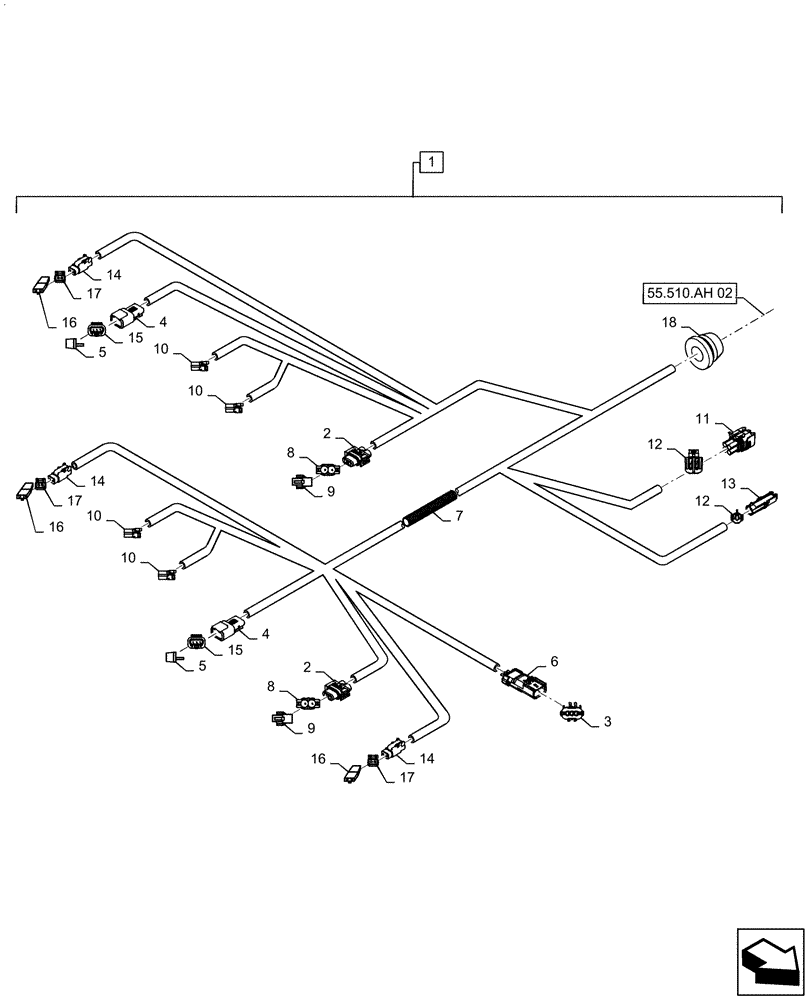

Запчасти Case IH MAGNUM 180 (55.510.AH[01]) - WIRE HARNESS, CAB ROOF, NA - BSN - ZERH08099 (55) - ELECTRICAL SYSTEMS

1

47562401

WIRE HARNESS

Cab Roof, NA Only, Incl 2 - 18, Also Incl Fig 55.510.AH[02]

1шт.

2

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

Delphi Metri-Pack .280 2-way, X-018A RH Front Roof Work Light, X-195 LH Front Roof Work Light

2шт.

3

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

FCI Apex

3шт.

4

84817101

ELEC CONNECTOR,Male, 16 - 20 SAE

Deutsch DTM Series 3-way, X-112 LH Power Mirror, X-113 RH Power Mirror

2шт.

5

84817102

LOCKING TAB,Wedge Lock, 3-Pin

Deutsch Wedge Lock, 3-way

2шт.

6

87382911

WIRE CONNECTOR,Male, 3 Cavities

FCI Apex 2.8mm 3-way, X-2094 To LH/RH Aux Lamp Harness

1шт.

7

87494032

CONDUIT

Cut To Length

1шт.

8

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Delphi Metri-Pack .280

4шт.

9

87690602

LOCK

Delphi Gray Secondary Lock

2шт.

10

87692835

TERMINAL

.250 Flag 18-12 AWG; X-118, X-120 LH Front Turn Signal; X-224, X-225 RH Front Turn Signal

4шт.

11

87692862

ELEC CONNECTOR

Delphi Weather-Pack 4-way, X-115 Front Wiper

1шт.

12

87692882

ELEC. TERMINAL PIN

Delphi Weather-Pack Male

5шт.

13

87693745

ELEC CONNECTOR,Male, Blade

Delphi Weather-Pack 1-way, X-116 Front Wiper Ground

1шт.

14

87696093

ELEC CONNECTOR,Female, 2 Cavities

Deutsch DTM Series 2-way, X-006 RH A-Post Work Light, X-015 LH A-Post Work Light, X-114 To Beacon/Strobe Harness

3шт.

15

87696141

TERMINAL

Deutsch Pin Contact Size 20

6шт.

16

87696145

LOCKING TAB

Deutsch Wedge Lock, 2-way

3шт.

17

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Deutsch Socket Contact Size 20

6шт.

18

NSS

NOT SOLD SEPARAT

GROMMET Incl in 1

1шт.
