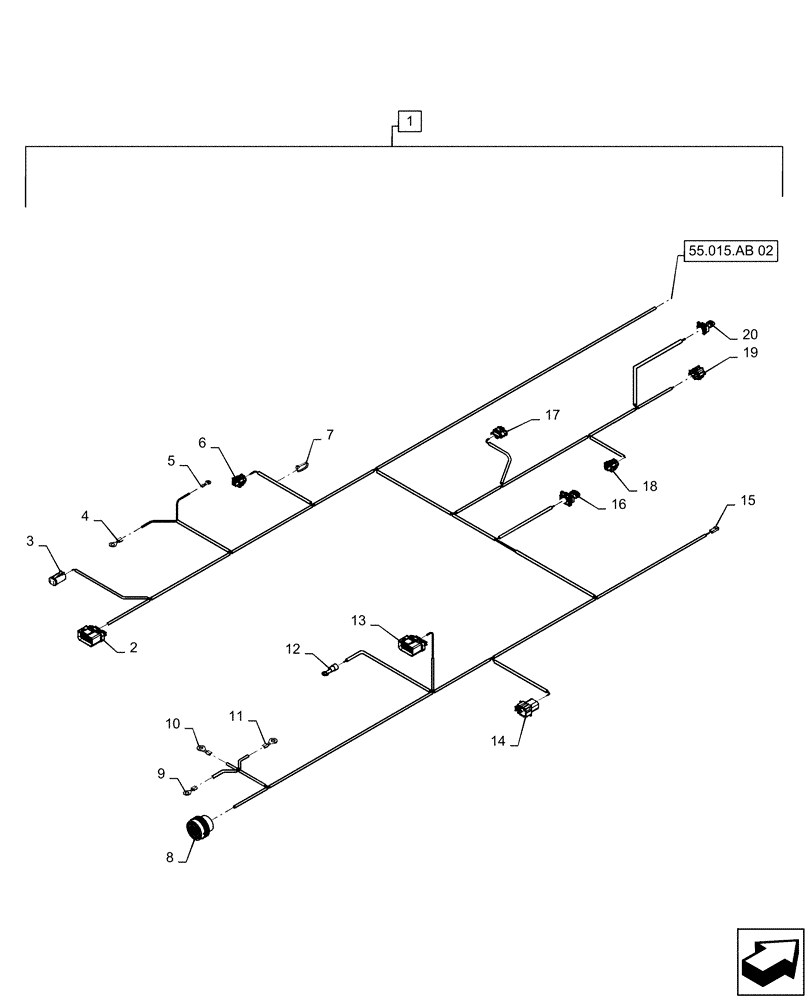

Запчасти Case IH MAGNUM 180 (55.015.AB[01]) - WIRE HARNESS, FRONT FRAME (55) - ELECTRICAL SYSTEMS

1

47678876

WIRE HARNESS

Engine, Incl 2 - 20, Also Incl Fig 55.015.AB [02]

1шт.

2

87382926

WIRE CONNECTOR,Female, 14 Cavities

X-1000 To LH Platform Harness, FCI Apex 2.8mm 14-way

1шт.

2

84395356

TERMINAL,Female, 2.8mm, 18-20

FCI Apex 2.8mm Female

10шт.

2

84395358

TERMINAL

FCI Apex 2.8mm Female

4шт.

3

87694153

CONTACT HOUSING,Female, 4 Cavities

X-236A To LH Platform Harness, Deutsch DT Series 4-way

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Deutsch Size 16

2шт.

3

84068583

PLUG,12 - 16 Ga, White

Sealing

2шт.

3

84074640

LOCKING TAB,Wedge Lock

Wedge Lock

1шт.

4

NSS

NOT SOLD SEPARAT

TERMINAL X-800 Aux Pwr Unsw Stud, M10 Ring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

BOOT, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

TERMINAL X-987 Aux Gnd, M8 Ring, Incl in 1

1шт.

6

87709798

ELEC CONNECTOR,Female, 2 Cavities

X-199 DEF Dosing Module, Bosch BDK 2.8, 2-way

1шт.

6

87705971

CONTACT

Bosch BSK 2.8 Female

2шт.

7

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

Fir Tree

5шт.

8

84526555

MULTIPOLE CONNECTOR

X-060 To Cab Harness, Deutsch HDP20 Series 31-way

1шт.

8

87695623

ELEC. TERMINAL PIN

Deutsch Size 16

16шт.

8

84807680

PLUG

Sealing

15шт.

9

NSS

NOT SOLD SEPARAT

TERMINAL X-674A AC Compressor Clutch Gnd, M8 Ring, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

TERMINAL X-674 Transmission Ground (Cab Mount), M8 Ring, Incl in 1

1шт.

11

84122130

TERMINAL

X-674B Aux Gnd, M8 Ring

1шт.

12

NSS

NOT SOLD SEPARAT

TERMINAL X-005 Engine Main B+, M5 Ring, Incl in 1

1шт.

13

87382926

WIRE CONNECTOR,Female, 14 Cavities

X-061A To Outside Cab Harness, FCI Apex 2.8mm 14-way

1шт.

13

84395356

TERMINAL,Female, 2.8mm, 18-20

FCI Apex 2.8mm Female

6шт.

13

84279937

PLUG,Apex, 2.80mm

Cavity

8шт.

14

225320C1

ELEC CONNECTOR

X-003 To SCR Canister Harness, Deutsch DT Series 8-way

1шт.

14

87695623

ELEC. TERMINAL PIN

Deutsch Size 16

7шт.

14

84068583

PLUG,12 - 16 Ga, White

Sealing

1шт.

14

84806919

PLUG,Wedge Lock

Wedge Lock

1шт.

15

87581782

ELEC CONNECTOR,Female

X-083 Starter Motor Relay Coil, AMP Posi-Lock .0250, 1-way

1шт.

15

87680658

TERMINAL

AMP Posi-Lock MKII

1шт.

16

87709663

ELEC CONNECTOR,Female, 3 Cavities

X-389 P.UP. Torque Sensor (Flywheel Speed), AMP JPT 3-way

1шт.

16

87694668

ELEC CONNECTOR

AMP JPT Female

3шт.

17

84190317

WIRE CONNECTOR,Female, 5 Cavities

X-186 Upstream NOX ECU and Sensor, AMP MCP 1.2, 5-way

1шт.

17

84190318

TERMINAL CONNECTOR

AMP MCP 1.2

3шт.

17

84190319

TERMINAL CONNECTOR

AMP MCP 1.2

2шт.

18

87709793

WIRE CONNECTOR,Female, 2 Cavities

X-203 DOC Upstream Temp Sensor, Bosch BDK 2.8, 2-way

1шт.

18

87705973

TERMINAL

Bosch BSK 2.8 Female

2шт.

19

87709809

ELEC CONNECTOR

X-151 Temp/Humidity Sensor, Bosch BDK 2.8, 4-way

1шт.

19

87705973

TERMINAL

Bosch BSK 2.8 Female

4шт.

20

84607243

ELEC CONNECTOR,Female, 2 Cavities

X-179 Air Filter Restriction Sw, AMP JPT 2-way

1шт.

20

87702681

TERMINAL

AMP JPT Female

2шт.
