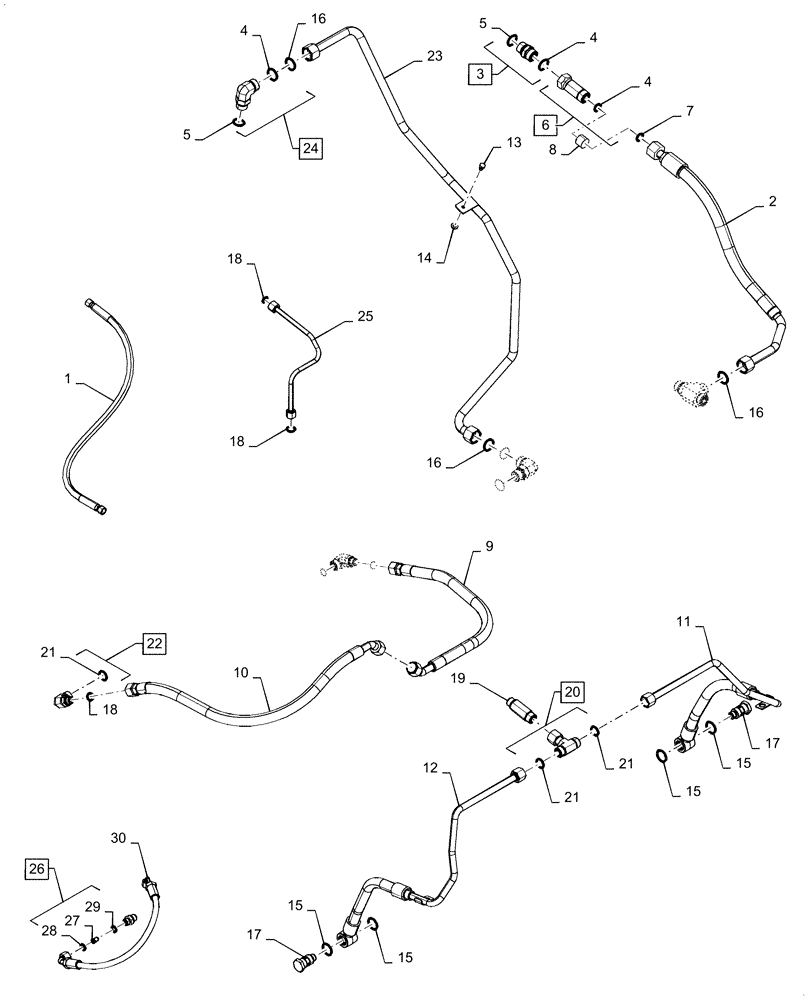

Запчасти Case IH MAGNUM 180 (35.100.AR[04]) - CONTROL VALVE OIL SUPPLY LINES AND FITTINGS, HIGH FLOW - CVT - BSN - ZERH08099 (35) - HYDRAULIC SYSTEMS

1

87608165

HYDRAULIC HOSE,6.4mm ID x 720mm L, SAE 100R2

LS Remote

1шт.

2

87608163

HYDRAULIC HOSE

Supply to Remotes

1шт.

3

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

Incl 4 - 5

1шт.

4

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

3шт.

5

14438185

O-RING,24mm ID x 3mm

2шт.

6

5197273

HYD CONNECTOR,1' 3/16-12 x 83.6mm

Incl 4, 7

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

8

87331951

ORIFICE

1шт.

9

87316344

FLEXIBLE HOSE

LH Lift Cylinder Low Pressure

1шт.

10

87316345

FLEXIBLE HOSE

RH Lift Cylinder Low Pressure

1шт.

11

84544105

PIPE

LH Lift Cylinder

1шт.

12

84544109

PIPE

RH Lift Cylinder

1шт.

13

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

14

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

15

5189534

WASHER,25.8mm ID x 30.2mm OD x 1.1mm Thk

4шт.

16

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

4шт.

17

84544103

HYD CONNECTOR,M18 x 1.5 x 55mm L

2шт.

18

14437985

O-RING,15.3mm ID x 2.4mm

3шт.

19

84323257

HYD CONNECTOR,M22 x 1.5 x 83mm L

1шт.

20

5197110

TEE,1"-14 UNS

Incl 21

1шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

22

5185562

ELBOW

Incl 18, 21

2шт.

23

87675046

HYD TUBE,20 mm OD

Remotes Drain

1шт.

24

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

Incl 4 - 5

1шт.

25

87370311

HYD TUBE

Low Pressure EHS Remotes

1шт.

26

84162690

ORIFICE,Hex, M16 x 1.5 x 33.5mm L

LS Bleed, Incl 27 - 29

1шт.

27

133519C1

SCREEN

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

30

84162654

HOSE,6.3mm ID x 552mm L

Aux LS Bleed

1шт.
