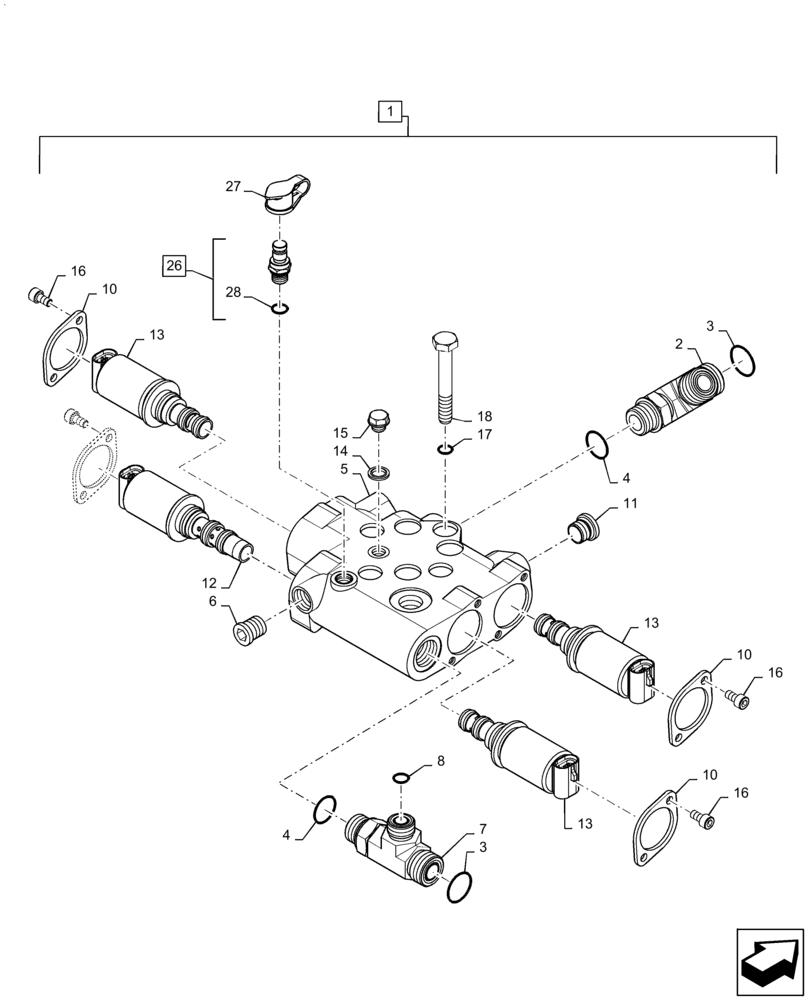

Запчасти Case IH MAGNUM 180 (31.104.AR[01]) - VAR- 420104, 420105 - VALVE, DISTRIBUTOR, PTO - CVT (31) - IMPLEMENT POWER TAKE OFF

1

87525222

DISTRIBUTOR

Incl 2 - 18, 26 - 27

1шт.

2

5187063

HYD CONNECTOR

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

87523105

VALVE BODY

Incl 6

1шт.

6

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

6шт.

7

47136372

HYD CONNECTOR,M22 x 1.5 x 88.5mm L

Incl 3, 4, 8

1шт.

8

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

9

47123020

PLUG,Hex

Not Illustrated

1шт.

10

5194826

BRACKET

4шт.

11

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

12

87739558

SOLENOID VALVE,14W

1шт.

12

87739558R

REMAN-SOLENOID

1шт.

12

87739558C

CORE-SOLENOID

Return Number

1шт.

13

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

3шт.

14

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

4шт.

15

87535222

PLUG,Hex, M10 x 1 x 13mm

4шт.

16

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

17

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

18

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

19

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

Not Illustrated, Incl 20 - 21

1шт.

20

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Not Illustrated

1шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Not Illustrated

1шт.

22

9625546

CAP,11/16" - 16 ORFS

Not Illustrated

1шт.

23

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

Not Illustrated

1шт.

24

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

Not Illustrated

6шт.

25

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

Not Illustrated

1шт.

26

5185423

COUPLING

Quick, Male, Incl 28

1шт.

27

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

Plug, for Quick Coupling

1шт.

28

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
