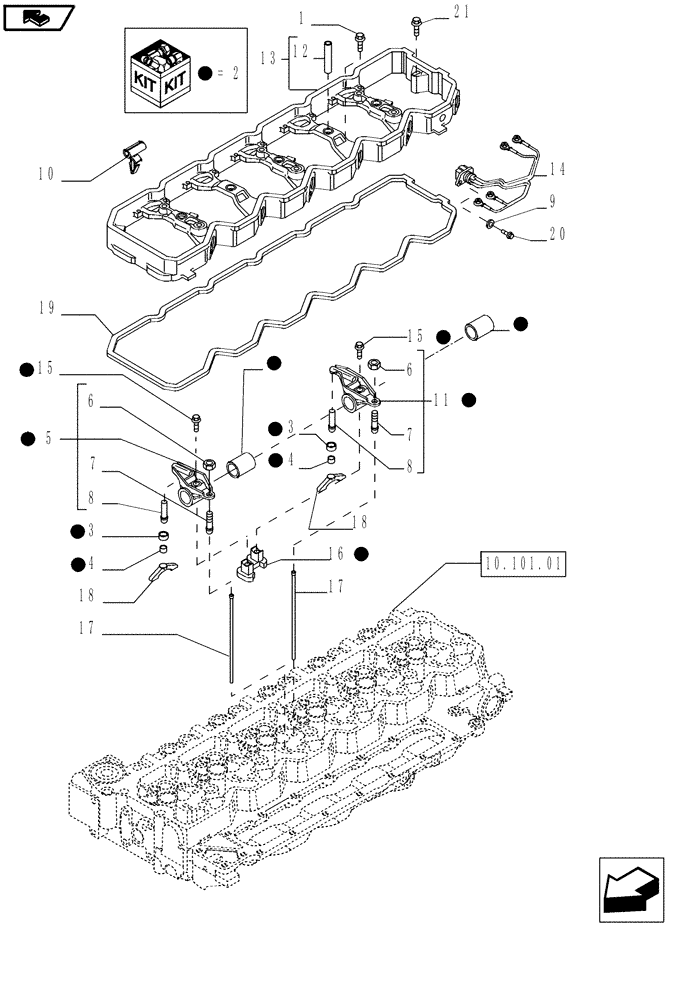

Запчасти Case IH MAGNUM 180 (10.106.02) - ROCKER SHAFT (10) - ENGINE

1

4895432

SCREW,M8 x 1.25 x 70mm

M8 x 1.25 x 70

5шт.

2

2859460

ROCKER ARM

Assembly

6шт.

3

2859464

RETAINER,10.79mm ID, 7.63mm ID

2шт.

4

2859465

SOCKET,1.5mm ID x 11mm OD x 9mm L

2шт.

5

2859462

ROCKER ARM

Assembly

1шт.

6

2859467

NUT,Hex, 3/8" - 24, RH

2шт.

7

2859468

ADJUSTMENT SCREW,3/8" - 24 x 23.85mm

2шт.

8

4895065

SPACER

2шт.

9

2852776

WASHER,6mm ID x 11mm OD

3шт.

10

2852428

WIRE CLAMP,6mm ID

6шт.

11

2859461

ROCKER ARM

Assembly

1шт.

12

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

5шт.

13

4899257

HOUSING

Assembly

1шт.

14

2852427

WIRE HARNESS

3шт.

15

2856460

BOLT,Flng, M8 x 1.25 x 55.5mm, Cl 10.9

2шт.

16

2859463

SUPPORT

1шт.

17

4895031

PUSH ROD

12шт.

18

2854530

BRIDGE

12шт.

19

2853788

GASKET,10.35mm Thk

1шт.

20

2852602

HEX SOC SCREW,M6 x 16mm

3шт.

21

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.
