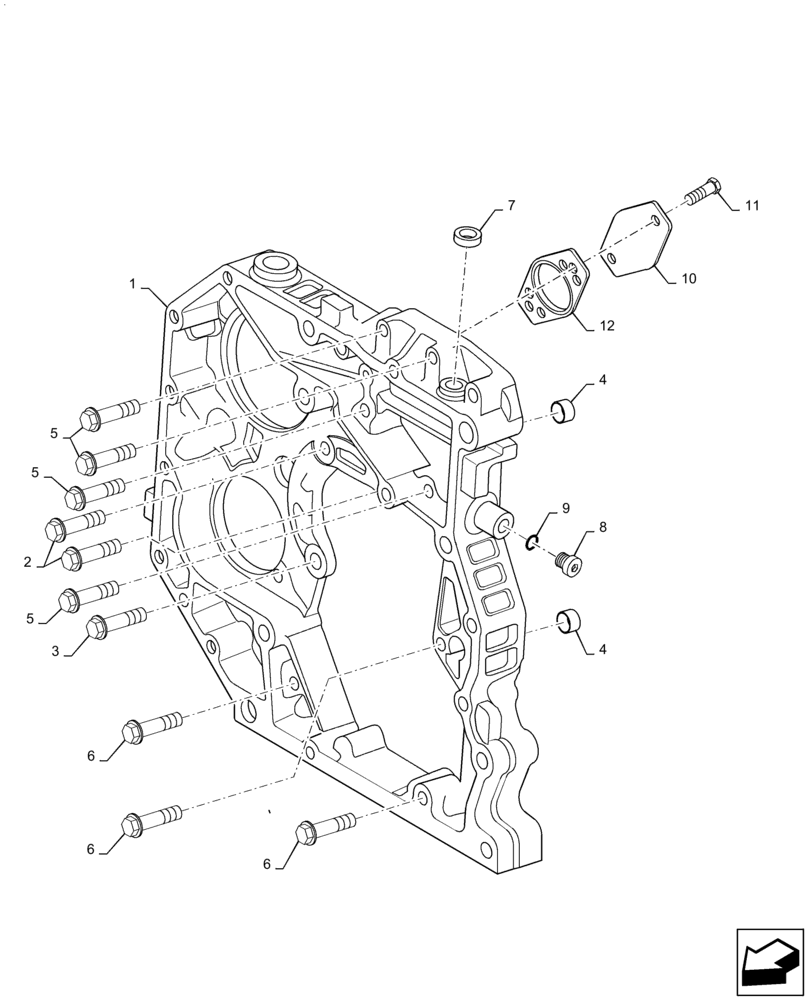

Запчасти Case IH MAGNUM 180 (10.102.02[02]) - REAR GEAR COVER (10) - ENGINE

1

2859269

HOUSING

Rear, Gear

1шт.

2

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

2шт.

3

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

4

4899026

DOWEL,M18 x 10

Ring

2шт.

5

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

6

4896939

SCREW,M10 x 1.5 x 50mm

3шт.

7

2856545

PLUG

Expansion

1шт.

8

2856546

PLUG

1шт.

9

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

10

2852175

COVER

1шт.

11

4899037

SCREW

2шт.

12

4896897

GASKET,1.35mm Thk

1шт.
