Запчасти Case IH MAGNUM 180 (05.100.03[03]) - FILTERS, MAGNUM 180 - 190 - 210 - CVT - TIER 3 (05) - SERVICE & MAINTENANCE

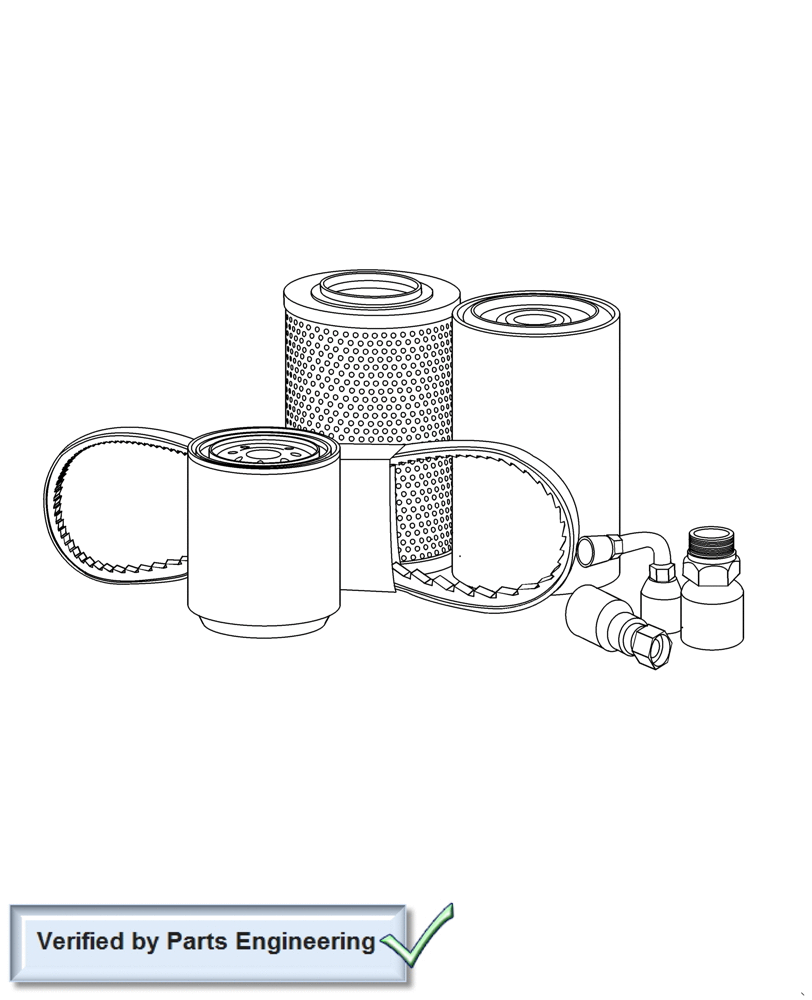

Схема запчастей Case IH MAGNUM 180 - (05.100.03[03]) - FILTERS, MAGNUM 180 - 190 - 210 - CVT - TIER 3 (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

2

87588814

HYDRAULIC OIL FILTER,151mm L

Vane Pump, CVT

1шт.

3

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Hydraulic Oil

2шт.

4

87304662

BREATHER

Engine

1шт.

5

84417139

ELEMENT,267.5mm L, 11 Micron

Charge Pump Suction, CVT

1шт.

6

84324774

HYDRAULIC OIL FILTER

Charge Pump Pressure, CVT

1шт.

7

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Engine Primary

1шт.

8

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Engine Secondary

1шт.

9

87684088

CAB FILTER,CAB

Cab

1шт.

10

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab, Charcoal

1шт.

11

293615A1

FILTER

Recirculation

2шт.

12

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

5 micron Secondary

1шт.

13

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

25 micron Primary W/Sensor

1шт.

14

336430A1

FUEL FILTER

30 micron Fuel Strainer

1шт.

15

87433010

BREATHER

Fuel

1шт.

Выбрано товаров: 15
