Запчасти Case IH MAGNUM 180 (55.100.25) - ELECTRICAL COMPONENT MOUNTING, FUSES (55) - ELECTRICAL SYSTEMS

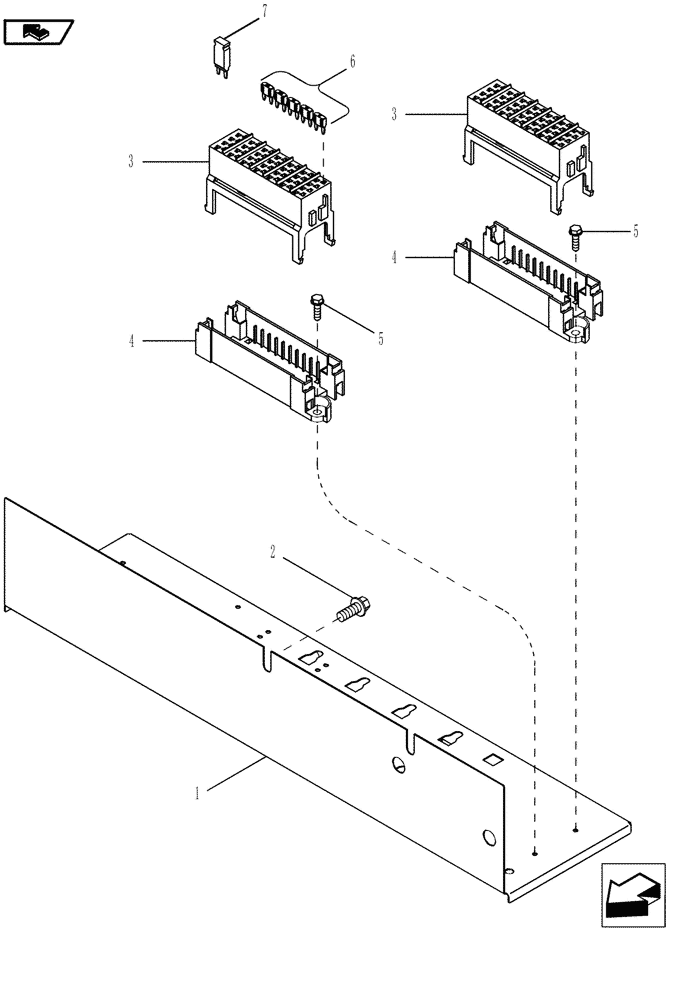

Схема запчастей Case IH MAGNUM 180 - (55.100.25) - ELECTRICAL COMPONENT MOUNTING, FUSES (55) - ELECTRICAL SYSTEMS
3
5
4
2
4
3
7
6
5
1

Артикул

Название

Примечание

Количество

1

87718548

PANEL

1шт.

2

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

3шт.

3

144421A1

CONNECTING BLOCK

Also Order 8, 9

2шт.

4

194319A1

FUSE

2шт.

5

780-34319

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 19

2шт.

6

121410A1

FUSE,5A, Mini, Tan

1шт.

6

121412A1

FUSE,10A, Mini, Red

1шт.

6

121413A1

FUSE,15A, Mini, Blue

1шт.

6

121414A1

FUSE,20A, Mini, Yellow

1шт.

6

121415A1

FUSE,25A, Mini, Clear

1шт.

6

121416A1

FUSE,30A, Mini, Green

1шт.

6

338060A1

FUSE,60A, Mini, Blue

1шт.

7

139719A1

CIRCUIT BREAKER,15 Amp, Mini

1шт.

8

87704913

ELEC CONNECTOR

Secondary Lock for Fuse Block, Blue, Not Illustrated

2шт.

9

87697779

TERMINAL

Fuse Block

1шт.

Выбрано товаров: 15
