Запчасти Case IH MAGNUM 180 (55.100.02) - HARNESS, CHASSIS, WITH POWERSHIFT TRANSMISSION (55) - ELECTRICAL SYSTEMS

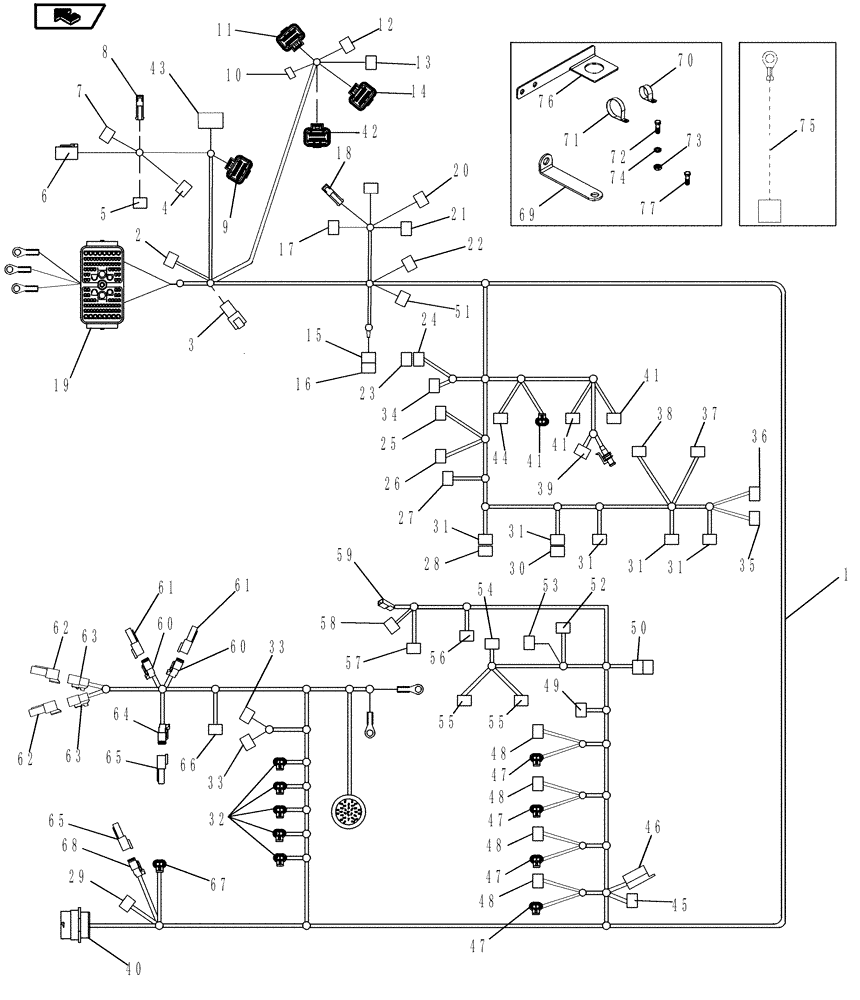

Схема запчастей Case IH MAGNUM 180 - (55.100.02) - HARNESS, CHASSIS, WITH POWERSHIFT TRANSMISSION (55) - ELECTRICAL SYSTEMS
66
55
48
3
23
72
2
76
61
48
51
47
36
69
25
45
29
31
13
49
15
26
62
65
20
65
7
62
31
47
21
64
71
56
16
34
27
61
46
17
53
68
43
47
1
47
8
59
5
18
73
home
9
63
33
31
57
11
30
63
38
77
41
44
67
41
50
54
10
31
52
19
40
75
41
31
60
37
32
55
4
35
48
6
24
42
74
14
22
28
39
60
48
70
12
33
58

Артикул

Название

Примечание

Количество

1

84206445

HARNESS

Chassis, Inc. 2 - 68

1шт.

2

87382907

WIRE CONNECTOR,Male

ISO CAN

1шт.

3

280453A1

ELEC CONNECTOR,Male, 6 Pin

Calibration

1шт.

4

87382918

WIRE CONNECTOR,Female, 6 Cavities

397F

1шт.

5

82028494

ELEC CONNECTOR

CCU Connector 91

1шт.

6

225351C1

ELEC CONNECTOR,Female, 6 Pin

20M

1шт.

7

87695723

ELEC CONNECTOR,Male , 3 Pole

Right Fender Hitch Control

1шт.

8

182064A1

CONNECTOR, ELEC

CONNECTOR Right Fender Ground

1шт.

9

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

CCU 93

1шт.

10

82016220

ELEC CONNECTOR

CCU 95

1шт.

11

82028492

MULTIPOLE CONNECTOR,Female, 26 Pole

CCU 97

1шт.

12

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

ACU 99

1шт.

13

82028494

ELEC CONNECTOR

ACU 98

1шт.

14

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

ACU 100

1шт.

15

87382926

WIRE CONNECTOR,Female, 14 Cavities

294M to ISO

1шт.

16

87382927

ELEC CONNECTOR,Male, 14 Cavities

FPS Chassis

1шт.

17

87382919

WIRE CONNECTOR,Male, 6 Cavities

21M

1шт.

18

182064A1

CONNECTOR, ELEC

CONNECTOR 40F

1шт.

19

437552A1

ELEC CONNECTOR,Female, 102 Pin

To Cab Harness

1шт.

20

87382921

WIRE CONNECTOR,Male

396M

1шт.

21

NSS

NOT SOLD SEPARAT

CONNECTOR, Left Fender Hitch Control

1шт.

22

82028494

ELEC CONNECTOR

ACU 102

1шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

Backup Alarm

1шт.

24

NSS

NOT SOLD SEPARAT

CONNECTOR, Plug Cavities

1шт.

25

12452583

WIRE CONNECTOR

Rear PTO Solenoid

1шт.

26

371614A1

ELEC CONNECTOR,Female, 2 Pin

Differential Lock Solenoid

1шт.

27

82865818

ELEC CONNECTOR

Left Hand Draft Pin

1шт.

28

225326C1

ELEC CONNECTOR,Male, 4 Pin

Plug, Cavities

1шт.

29

87382926

WIRE CONNECTOR,Female, 14 Cavities

FPS Chassis to Fuse

1шт.

30

225326C1

ELEC CONNECTOR,Male, 4 Pin

Plug, Cavities

1шт.

31

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

EHR 1 thru 5

5шт.

32

371614A1

ELEC CONNECTOR,Female, 2 Pin

Clutch Solenoid A thru E

5шт.

33

NSS

NOT SOLD SEPARAT

CONNECTOR, Steer

2шт.

34

NSS

NOT SOLD SEPARAT

CONNECTOR, Trailer Socket

1шт.

35

82865818

ELEC CONNECTOR

PTO Speed Sensor

1шт.

36

82865818

ELEC CONNECTOR

Right Hand Draft Pin

1шт.

37

NSS

NOT SOLD SEPARAT

CONNECTOR, EDC Valve Raise

1шт.

38

NSS

NOT SOLD SEPARAT

CONNECTOR, EDC Valve Lower

1шт.

39

12454687

WIRE CONNECTOR

Link Leveling

1шт.

40

87696943

MULTIPOLE CONNECTOR,Female, 29 Pole

FPS Chassis to CMM Engine

1шт.

41

371614A1

ELEC CONNECTOR,Female, 2 Pin

4WD Solenoid, PTO Brake, 19th Dump Solenoid

3шт.

42

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

CCU 94

1шт.

43

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

CCU 92

1шт.

45

82865818

ELEC CONNECTOR

Axle Speed Sensor

1шт.

46

872290R1

ELEC CONNECTOR,Male

Cab Blower - 90 F

1шт.

47

371614A1

ELEC CONNECTOR,Female, 2 Pin

Medium, High, Low and Reverse SOL

4шт.

48

87309480

ELEC CONNECTOR

Medium, High, Low and Reverse Switches

4шт.

49

12452587

ELEC CONNECTOR

19th Gear SOL

1шт.

50

82026544

ELEC CONNECTOR

Creeper

1шт.

51

82016220

ELEC CONNECTOR

ACU 101

1шт.

52

82865818

ELEC CONNECTOR

Mid Speed Sensor Output Speed P.U.

1шт.

53

87694154

CONTACT HOUSING,Male, 4 Pole

304-1 Bus Termination

1шт.

54

87309480

ELEC CONNECTOR

Transmission Oil Temperature, Sensor

1шт.

55

87581782

ELEC CONNECTOR,Female

Transmission Oil Pressure, Switch 1, 2

2шт.

56

12330587

MULTIPOLE CONNECTOR,Female, 2 Pin

HPL Hydraulic Filter Blocked (Vacuum Switch)

1шт.

57

371614A1

ELEC CONNECTOR,Female, 2 Pin

Transmission Oil Temperature Sender

1шт.

58

NSS

NOT SOLD SEPARAT

CONNECTOR, Low Hydraulic Charge Switch

1шт.

59

87581782

ELEC CONNECTOR,Female

High Flow Pump

1шт.

60

225316C1

ELEC CONNECTOR,Female, 2 Pin

To Sus Rod and Piston Valves

2шт.

61

225315C1

ELEC CONNECTOR,Male, 2 Pin

Plug, Cavities

2шт.

62

225294C1

ELEC CONNECTOR,Male, 3 Pin

Plug, Cavities

2шт.

63

225295C1

ELEC CONNECTOR,Female, 3 Pin

Rod and Piston Sensors

2шт.

64

225316C1

ELEC CONNECTOR,Female, 2 Pin

488M To Sus Pump (Not Tank Valve)

1шт.

65

225315C1

ELEC CONNECTOR,Male, 2 Pin

Plug, Cavities

1шт.

66

82918487

ELEC CONNECTOR,Female

Radar Gun

1шт.

67

371614A1

ELEC CONNECTOR,Female, 2 Pin

Fuel Tank Sender

1шт.

68

225316C1

ELEC CONNECTOR,Female, 2 Pin

Auto Guidance Lockout Solenoid

1шт.

69

87527952

BRACKET

1шт.

70

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

3шт.

71

87495305

CLAMP,65mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

72

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

73

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

74

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

75

84189831

HARNESS

High Flow Pump

1шт.

76

84122768

BRACKET

1шт.

77

16323321

BOLT,Hex Lock, M10 x 1.25 x 20.00mm, 8R, ZND

1шт.

Выбрано товаров: 76
