(41.200.10) - POWER STEERING DELIVERY & RETURNS PIPES, WITH POWERSHIFT TRANSMISSION

Запчасти Case IH MAGNUM 180 (41.200.10) - POWER STEERING DELIVERY & RETURNS PIPES, WITH POWERSHIFT TRANSMISSION (41) - STEERING

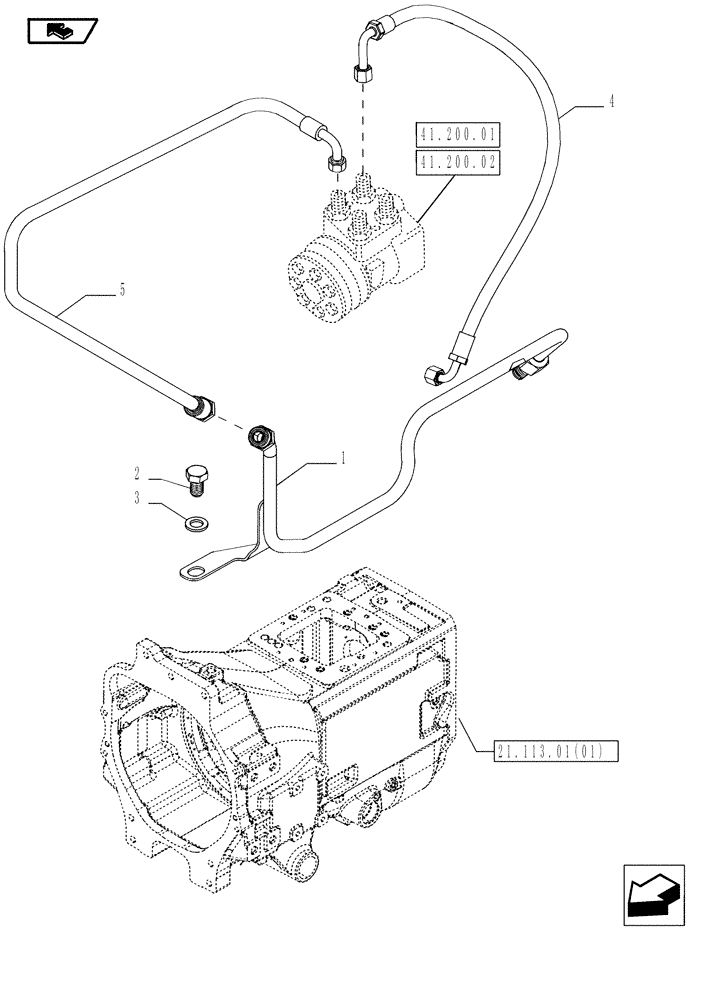

Схема запчастей Case IH MAGNUM 180 - (41.200.10) - POWER STEERING DELIVERY & RETURNS PIPES, WITH POWERSHIFT TRANSMISSION (41) - STEERING
1
41.200.02
41.200.01
4
3
2
5
21.113.01(01)
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87316315

HYD TUBE

To Steering Motor

1шт.

2

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

1шт.

3

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

4

87746677

HOSE ASSY.

Return

1шт.

5

84202758

HOSE ASSY.

Supply

1шт.

Выбрано товаров: 5
