Запчасти Case IH MAGNUM 180 (41.200.08) - VALVE ASSEMBLY, AUTOGUIDANCE WITH POWERSHIFT TRANSMISSION (41) - STEERING

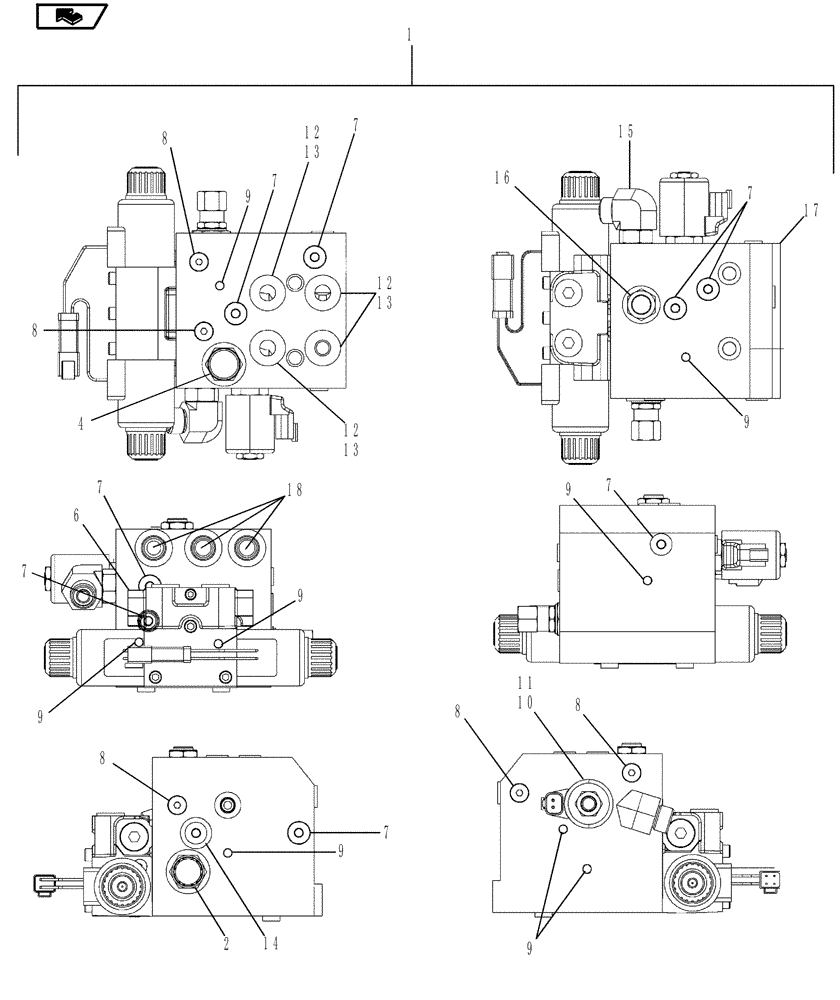

Схема запчастей Case IH MAGNUM 180 - (41.200.08) - VALVE ASSEMBLY, AUTOGUIDANCE WITH POWERSHIFT TRANSMISSION (41) - STEERING
9
9
18
8
6
14
10
8
home
11
7
4
15
9
8
8
7
13
13
7
9
8
16
13
7
9
9
7
9
7
2
7
12
1
12
17
12

Артикул

Название

Примечание

Количество

1

84200777

HYDRAULIC VALVE

Autoguidance, Inc. 2 - 21

1шт.

84200777R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225

1шт.

84200777C

CORE-VALVE HYD

Return Number

1шт.

2

84259232

VALVE PRESSURE RELIE

1шт.

3

86508168

SEAL KIT

Consists of 2 O-Rings and 1 Backup Washer (Not Shown)

1шт.

4

84259233

VALVE, PRESSURE CONT

1шт.

5

S301087

SEAL KIT

(Not Shown)

1шт.

6

84264248

SOLENOID VALVE

DMV

1шт.

7

9625178

PLUG,9/16" - 18 ORB

8шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

5шт.

9

86632547

PLUG,Hex, 5/16"-24 ORB

8шт.

10

87623908

COIL ASSY.

1шт.

11

84259235

SOLENOID VALVE

1шт.

12

84264250

BACK-UP RING

4шт.

13

86629585

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

4шт.

14

86598044

PLUG,Hex, M14 x 1.5 ORB

M14 x 1.5

1шт.

15

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

16

84259236

CHECK VALVE

1шт.

17

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

19

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

3шт.

20

49886

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

2шт.

21

511836

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

1шт.

Выбрано товаров: 23
