Запчасти Case IH MAGNUM 180 (41.200.05) - STEERING SYSTEM, MFD CLASS 4 AXLE WITH AUTOGUIDANCE, POWERSHIFT TRANSMISSION (41) - STEERING

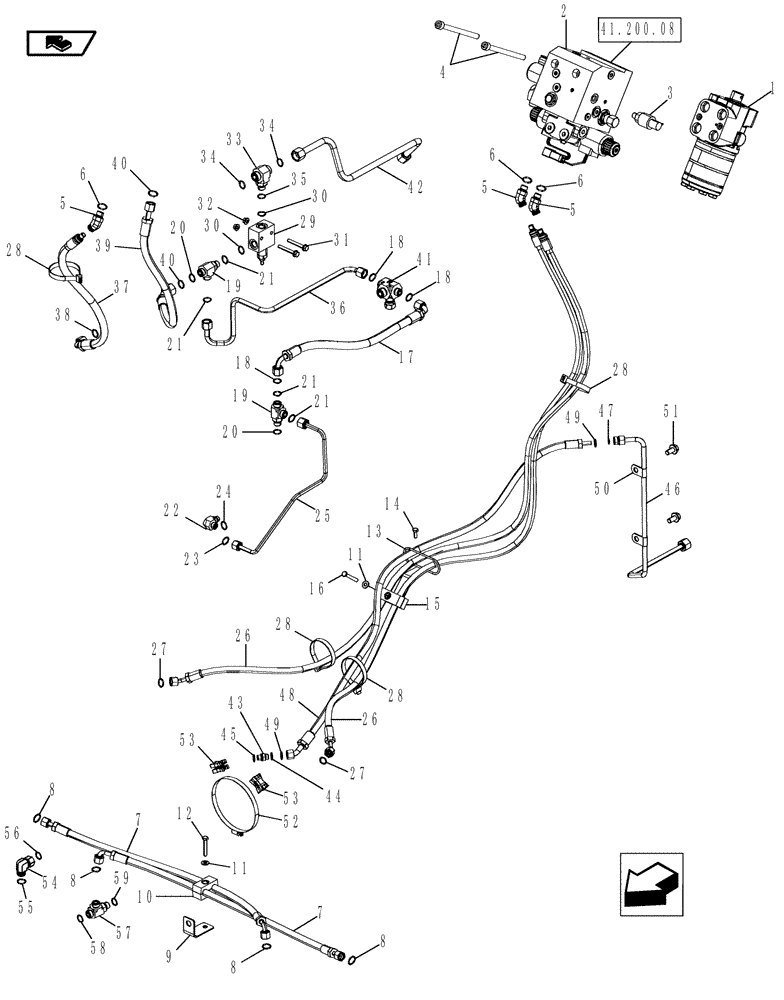

Схема запчастей Case IH MAGNUM 180 - (41.200.05) - STEERING SYSTEM, MFD CLASS 4 AXLE WITH AUTOGUIDANCE, POWERSHIFT TRANSMISSION (41) - STEERING
4
21
20
17
37
28
8
54
20
1
26
5
18
43
14
34
39
53
52
5
27
8
16
19
41
6
11
40
34
36
56
59
19
41.200.08
8
40
49
32
7
47
home
5
45
33
48
21
53
28
57
7
27
21
18
6
8
28
46
18
35
21
30
29
15
42
49
23
2
9
25
3
12
26
6
28
55
44
10
50
22
58
24
51
13
38
31
30
11

Артикул

Название

Примечание

Количество

1

87317895

HYDRAULIC STEERING

Pump, 60/220 CC/REV

1шт.

2

84200777

HYDRAULIC VALVE

Assembly, Open Center Autoguidance

1шт.

84200777R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210

1шт.

84200777C

CORE-VALVE HYD

Return Number

1шт.

3

87428328

PRESSURE SWITCH

Transducer, 3000 PSI

1шт.

4

84158488

HEX SOC SCREW,M10 x 1 x 130mm, Cl 12.9

2шт.

5

87345924

FITTING,45 Degree, M18 x 1.5 ORB x -08 Fem STC

Inc. 7

3шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

84244142

HYDRAULIC HOSE

Steer Crossover

2шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

9

84244231

BRACKET, SUPPORTING

1шт.

10

87000150

CLAMP,15.869mm ID

1шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

12

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

13

84137985

BRACKET

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

15

87000151

CLAMP

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

17

84186720

HYDRAULIC HOSE

Drop Box Lube

1шт.

18

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

19

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

Inc. 20, 21

2шт.

20

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

21

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

22

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Inc. 23, 24

1шт.

23

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

87740778

TUBE,.375" OD

Lower Drop Box Lube

1шт.

26

84303811

HYDRAULIC HOSE,9.53mm ID x 2100mm L

Steer Workport

2шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

28

86991007

CABLE TIE,509mm L

CABLE STRAP

4шт.

29

84146510

HYDRAULIC VALVE

Autoguidance Relief, Inc. 30

1шт.

30

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

31

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

32

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

33

87016910

TEE,1"-14 ORFS x M18 x 1.5 ORB Br

Inc. 34, 35

1шт.

34

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

35

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

36

84169098

HYD TUBE,12 mm OD

Steer Relief

1шт.

37

84170685

HOSE

Return

1шт.

38

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

84216147

HOSE ASSY.

Supply

1шт.

40

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

41

84168644

TEE

1шт.

42

84245508

HYD TUBE

Steer Supply

1шт.

43

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 43, 44

1шт.

44

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

45

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

46

84158558

HYD TUBE,0.375" OD

Differential Lock Supply

1шт.

47

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

48

84255622

HYDRAULIC HOSE

Differential Lock Supply

1шт.

49

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

50

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

51

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

52

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

53

86991001

SPACER

2шт.

54

47127165

90 ELBOW

Inc. 55, 56

2шт.

55

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

56

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

57

76034620

HYD CONNECTOR

Inc. 58, 59

2шт.

58

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

59

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 61
