Запчасти Case IH MAGNUM 180 (41.200.02) - STEERING SYSTEM, MFD WITH AUTO GUIDANCE, POWERSHIFT TRANSMISSION (41) - STEERING

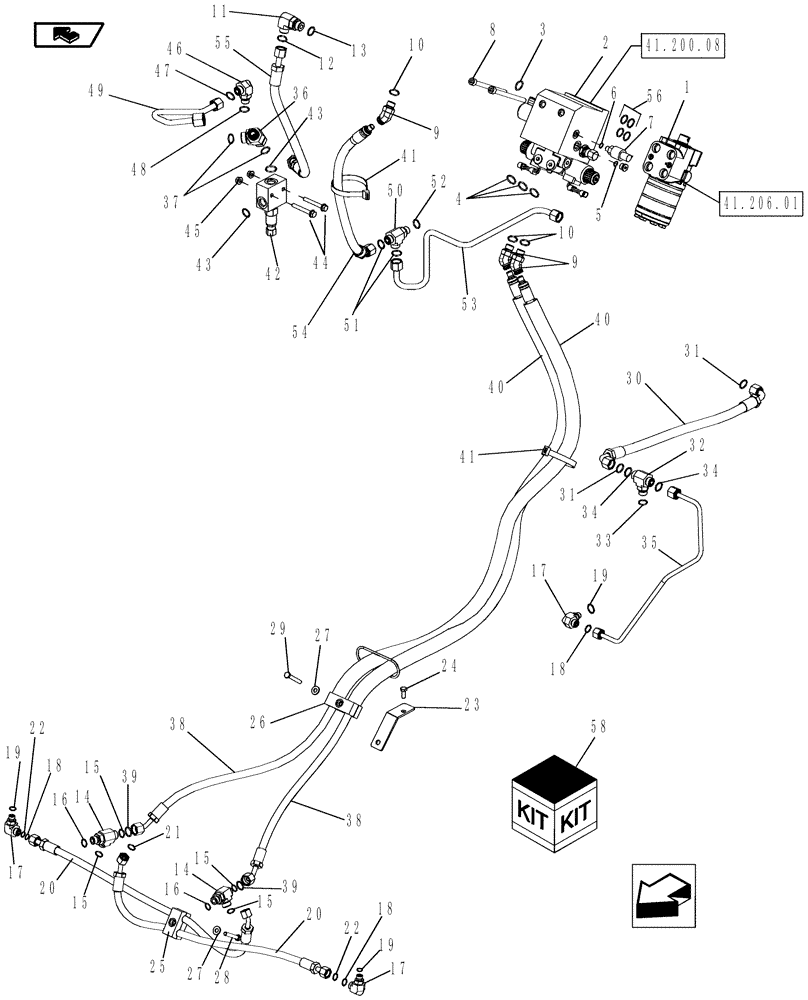

Схема запчастей Case IH MAGNUM 180 - (41.200.02) - STEERING SYSTEM, MFD WITH AUTO GUIDANCE, POWERSHIFT TRANSMISSION (41) - STEERING
14
24
15
19
25
29
41
23
41
9
33
31
47
54
49
11
2
39
43
5
8
20
37
17
40
27
43
18
38
7
21
1
42
56
52
22
36
34
53
18
16
31
41.206.01
41.200.08
18
50
14
44
22
55
26
15
19
35
17
20
9
4
28
6
38
home
10
27
40
32
30
10
39
13
46
45
17
3
16
34
58
51
19
15
12
15
48

Артикул

Название

Примечание

Количество

1

87317895

HYDRAULIC STEERING

Pump, 60/220 CC/REV

1шт.

1

87315009

PUMP

293 CC/REV, 40K

1шт.

1

87540539

PUMP

74/305 CC/REV, 50K

1шт.

2

84200777

HYDRAULIC VALVE

Assembly, Open Center Auto Guidance, Inc. 3 - 6, 56, 57

1шт.

84200777R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210

1шт.

84200777C

CORE-VALVE HYD

Return Number

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

5

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

87428328

PRESSURE SWITCH

Transducer, 3000 PSI

1шт.

8

84158488

HEX SOC SCREW,M10 x 1 x 130mm, Cl 12.9

2шт.

9

87345924

FITTING,45 Degree, M18 x 1.5 ORB x -08 Fem STC

45 Degree, Inc. 10

3шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

Inc. 12 - 13 (If Used)

1шт.

12

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 15 - 16

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

16

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

17

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 18 - 19

3шт.

18

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

249817A2

HOSE,9.52mm ID x 778mm L

Assembly, Steering Brake Cylinder to Cylinder, Inc. 21 - 22

2шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

84137985

BRACKET

Assembly, Steering Hose Clamp

1шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

25

87000150

CLAMP,15.869mm ID

1шт.

26

87749784

CLAMP

1шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

28

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

29

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

30

84186720

HYDRAULIC HOSE

Hydraulic, Drop Box Lube, Inc. 31

1шт.

31

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

32

84168644

TEE

4-Way Swivel, Inc. 33 - 34

1шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

35

87740778

TUBE,.375" OD

Lower Drop Box Lube

1шт.

36

84989850

3 WAY CONNECTION

Inc. 37

1шт.

37

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

38

87401118

HOSE,9.5mm ID x 1950mm L

Steering Left/Right, Inc. 39

2шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

40

87753673

CONDUIT

2шт.

41

86991007

CABLE TIE,509mm L

CABLE STRAP

2шт.

42

84146510

HYDRAULIC VALVE

Autoguide Relief

1шт.

43

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

44

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

45

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

46

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Inc. 47 - 48

1шт.

47

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

48

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

49

84245508

HYD TUBE

Steering Supply

1шт.

50

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

Inc. 51 - 52

1шт.

51

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

52

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

53

84169098

HYD TUBE,12 mm OD

Steering Relief

1шт.

54

84170685

HOSE

Steering Return

1шт.

55

84216147

HOSE ASSY.

Steering Supply (657mm Long)

1шт.

56

70931289

O-RING,0.103" Thk x 0.862" ID, -118, Cl 8, 90 Duro

4шт.

57

84155142

BACK-UP RING

(Not Shown)

4шт.

58

87454545

SEAL KIT

Steering Pumps, Includes (2) Seals, (8) O-Rings

1шт.

Выбрано товаров: 62
