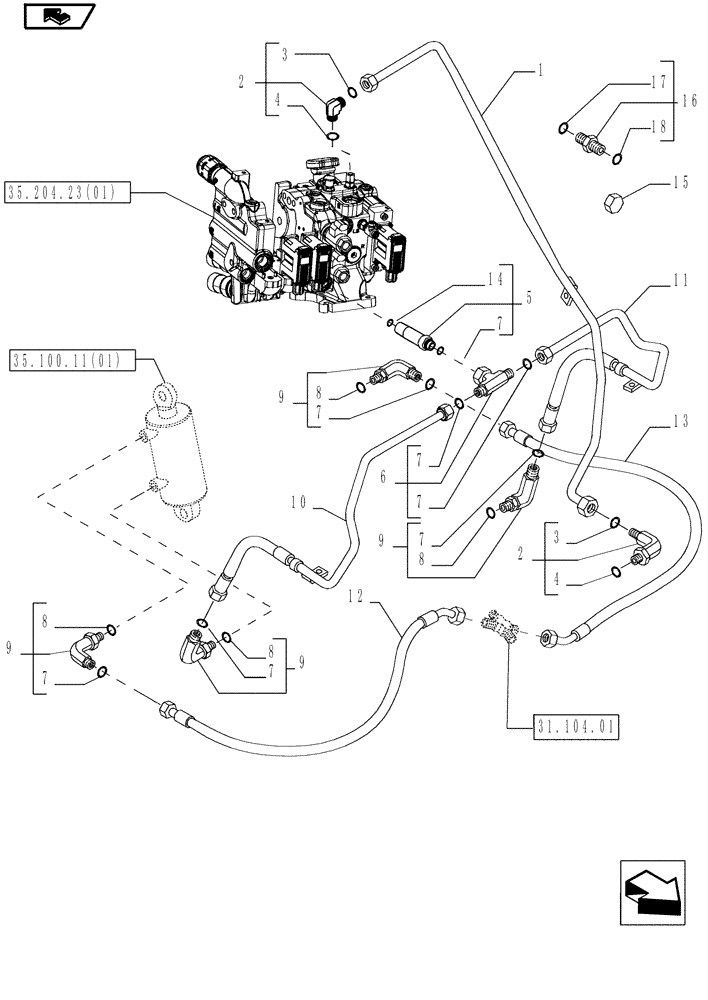

Запчасти Case IH MAGNUM 180 (35.100.04[02]) - LIFTER LINES, LIFTER CYLINDERS PIPES & REMOTE CONTROL VALVES DRAIN, WITH CONTINUOUSLY VARIABLE TRANSMISSION (35) - HYDRAULIC SYSTEMS

1

87675046

HYD TUBE,20 mm OD

Remote Valves Drain

1шт.

2

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

1-3/16"-12;M27x2, Inc. 3, 4 (Qty 2)

2шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

4

14438185

O-RING,24mm ID x 3mm

2шт.

5

5199935

HYD CONNECTOR

Inc. 7, 14 (Qty 1)

1шт.

6

5197110

TEE,1"-14 UNS

Inc. 7 (Qty 2)

1шт.

7

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

7шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

9

5185562

ELBOW

Inc. 7 (Qty 4), 8

4шт.

10

87370316

PIPE

Right Hand, from Remote Valves to Right Lift Cylinder

1шт.

11

87620232

HYD TUBE

Left hand, from Remote Valves to Left Lift Cylinder

1шт.

12

87316345

FLEXIBLE HOSE

Right hand, from Right Cylinder to Low Pressure Distributor

1шт.

13

87316344

FLEXIBLE HOSE

Left hand, from Left Lift Cylinder to Low Pressure Distributor

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

15

87331951

ORIFICE

1шт.

16

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Inc. 17, 18

1шт.

17

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
