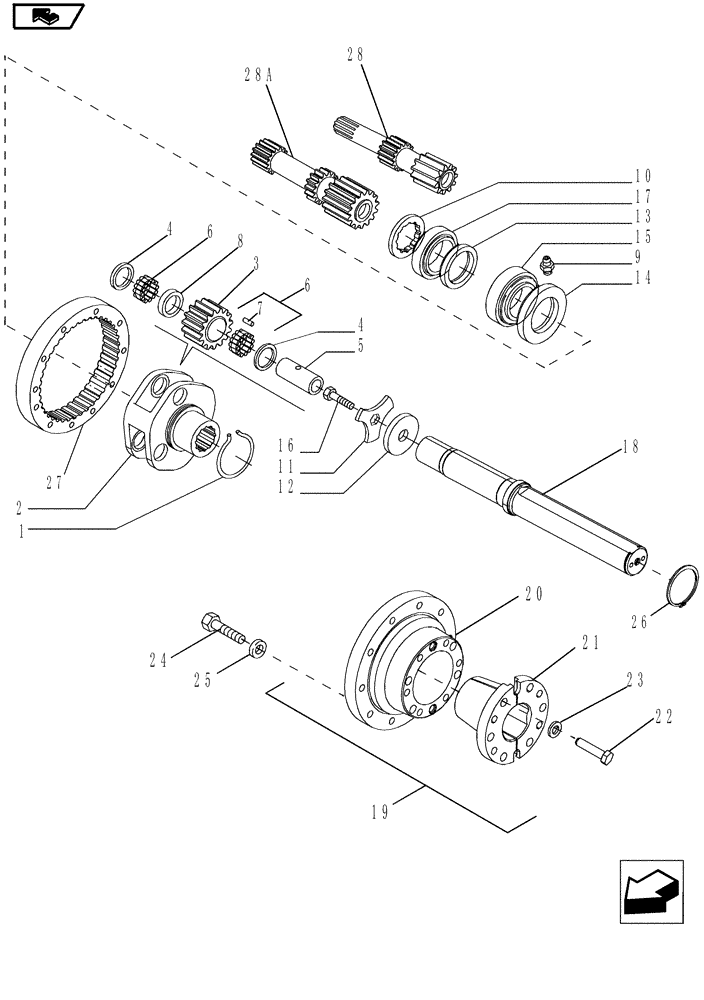

Запчасти Case IH MAGNUM 180 (27.120.05[03]) - BAR AXLE 119" FINAL DRIVE, GEARS & DOUBLE FLAT SHAFT, MAGNUM 180, 190 BSN ZARH01984 (27) - REAR AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

5165494

SUPPORT

2шт.

3

87558449

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

1шт.

8

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

84299173

SPECIAL WASHER

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

88 x 110 x 12

2шт.

14

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

2шт.

15

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

2шт.

16

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

85X130X29

2шт.

18

5199221

MAIN SHAFT

119"

2шт.

19

87492894

HUB

ASSY, Inc. 20 - 23

2шт.

20

87473335

HUB

2шт.

21

87645102

WEDGE,Lock, Silver

2шт.

22

87688508

BOLT,Hex, M22 x 2.5 x 90mm, Cl 8.8

6шт.

23

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

6шт.

24

86643888

BOLT,Hex, M22 x 60mm, Cl 10.9

20шт.

25

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

20шт.

26

11082174

CIRCLIP,105mm OD, DAC

2шт.

27

87307352

RING GEAR

2шт.

28

87558448

GEAR SHAFT

Use With Powershift Transmission

2шт.

28a

87307366

GEAR SHAFT

Use With Continuosly Variable Transmission

2шт.
