Запчасти Case IH MAGNUM 180 (25.102.06) - CARRIER & DIFFERENTIAL, MFD, 10 BOLT HUB, WITH DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

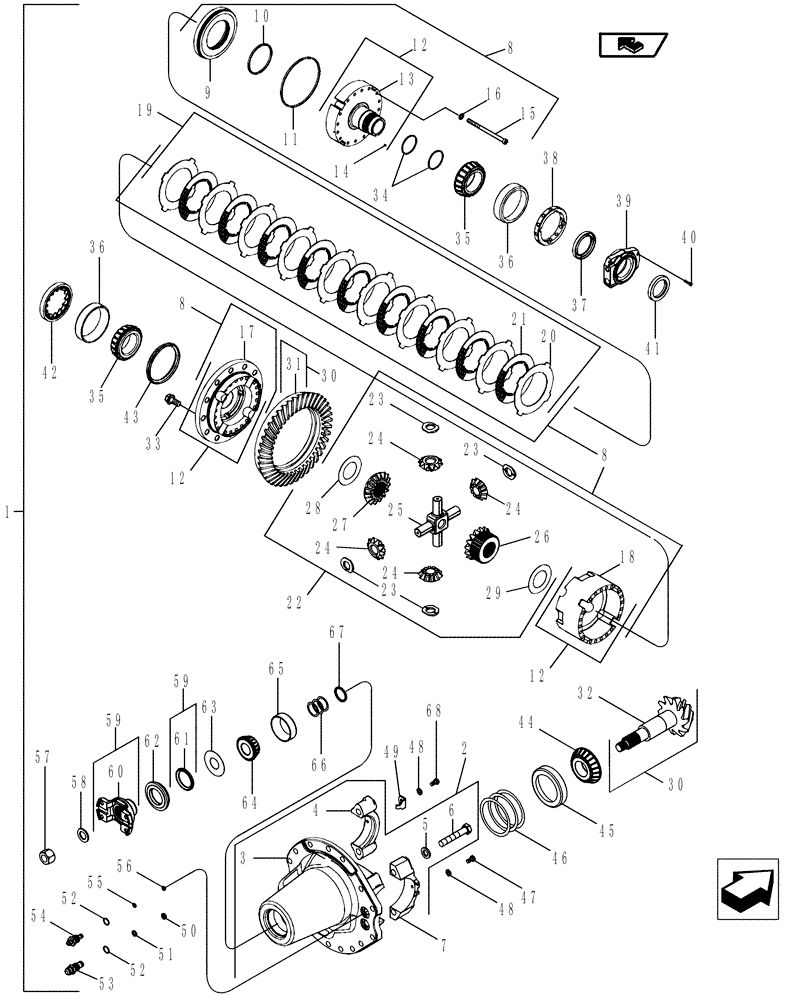

Схема запчастей Case IH MAGNUM 180 - (25.102.06) - CARRIER & DIFFERENTIAL, MFD, 10 BOLT HUB, WITH DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM
40
39
23
52
48
1
8
12
3
12
11
50
61
25
21
28
5
46
8
55
45
67
62
49
44
22
24
15
9
18
19
68
36
42
66
24
34
32
27
53
48
58
6
35
35
30
38
14
54
29
24
24
26
57
37
47
16
60
30
23
33
36
51
52
8
7
41
31
20
2
65
13
10
23
56
12
64
59
4
59
17
home
43
63

Артикул

Название

Примечание

Количество

1

87324474

CARRIER ASSY.

Inc. 2 - 68

1шт.

1

87324474R

REMAN-AXLE

Remanufactured Axle Carrier;

1шт.

1

87324474C

CORE-AXLE

Return Number, CARRIER ASSY.

1шт.

2

87404193

CARRIER

Inc. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4

NSS

NOT SOLD SEPARAT

CAP

1шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

6

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

7

NSS

NOT SOLD SEPARAT

CAP

1шт.

8

87324480

CASE ASSY.

Inc. 9 - 29

1шт.

9

87324486

PISTON

1шт.

10

87324482

SEAL

1шт.

11

87324484

SEAL

1шт.

12

87324492

CASE ASSY.

Inc. 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

CAP

1шт.

14

87404998

PLUG

1шт.

15

87324495

BOLT

16шт.

16

87324498

WASHER

16шт.

17

NSS

NOT SOLD SEPARAT

FLANGE

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

19

87324488

KIT

Inc. 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE

10шт.

21

NSS

NOT SOLD SEPARAT

DISC, Friction

9шт.

22

87324491

KIT

Inc. 23 - 29

1шт.

23

377183A1

THRUST WASHER

Thrust

4шт.

24

87324509

PINION

GEAR

4шт.

25

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

26

87324504

DIFFERENTIAL GEAR

1шт.

27

87324506

BEVEL PINION

1шт.

28

87404544

THRUST WASHER,48.84mm ID x 82.55mm OD x 0.79mm Thk

1шт.

29

87324503

THRUST WASHER

1шт.

30

1968293C1

BEVEL GEAR

Inc. 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

RING, Gear

1шт.

32

NSS

NOT SOLD SEPARAT

SHAFT, Pinion

1шт.

33

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

12шт.

34

87404472

RING

2шт.

35

1968291C1

ROLLER BEARING

2шт.

36

1968292C1

BEARING

2шт.

37

87310117

SEAL

1шт.

38

87405001

NUT

1шт.

39

87404997

SEAL RETAINER

1шт.

40

87404489

SCREW

3шт.

41

87310116

SEAL

1шт.

42

1277233C1

RING NUT,14T

1шт.

43

87404471

SEAL

1шт.

44

315421A1

ROLLER BEARING,44.45mm ID x 26.91mm W

1шт.

45

315422A1

BEARING CUP,111.13mm OD x 20.64mm W

1шт.

46

1277229C1

PACKAGE

Inc. 46

1шт.

46

NSS

NOT SOLD SEPARAT

SHIM .003 mm

5шт.

46

NSS

NOT SOLD SEPARAT

SHIM .005 mm

5шт.

46

NSS

NOT SOLD SEPARAT

SHIM .010 mm

5шт.

47

87404488

ADJUSTMENT SCREW

1шт.

48

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

49

1277234C1

CLIP

1шт.

50

87404548

SEAL

1шт.

51

87404474

BACK-UP RING

1шт.

52

87405002

O-RING

2шт.

53

87404479

COUPLING

1шт.

54

87404480

COUPLING

1шт.

55

87404473

BACK-UP RING

1шт.

56

87404547

SEAL

1шт.

57

232-46314

LOCK NUT,7/8"-14, GC

1шт.

58

H224501

WASHER

7/8 inch

1шт.

59

87324552

YOKE

Inc. 60, 61

1шт.

60

NSS

NOT SOLD SEPARAT

YOKE

1шт.

61

87324558

SEAL,47.74mm ID x 61.9mm OD x 1.19mm Thk

1шт.

62

87324555

OIL SEAL,47.57mm ID x 80.44mm OD x 17.65mm Thk

Oil

1шт.

63

318845A1

SLINGER,31.75mm ID x 72.26mm OD x 0.8mm Thk

1шт.

64

315423A1

BEARING ASSY,31.75 mm ID x 27.783 mm

1шт.

65

315424A1

BEARING CUP

1шт.

66

318504A1

SHIM KIT

Inc. 66

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM .010 mm

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM .014 mm

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM .015 mm

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM .016 mm

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM .018 mm

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM .020 mm

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM .021 mm

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM .022 mm

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM .023 mm

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM .030 mm

1шт.

67

251189A1

SPACER

1шт.

68

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 83
