Запчасти Case IH MAGNUM 180 (21.105.04[02]) - HYDRAULIC TRANSMISSION CONTROL, PIPES, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

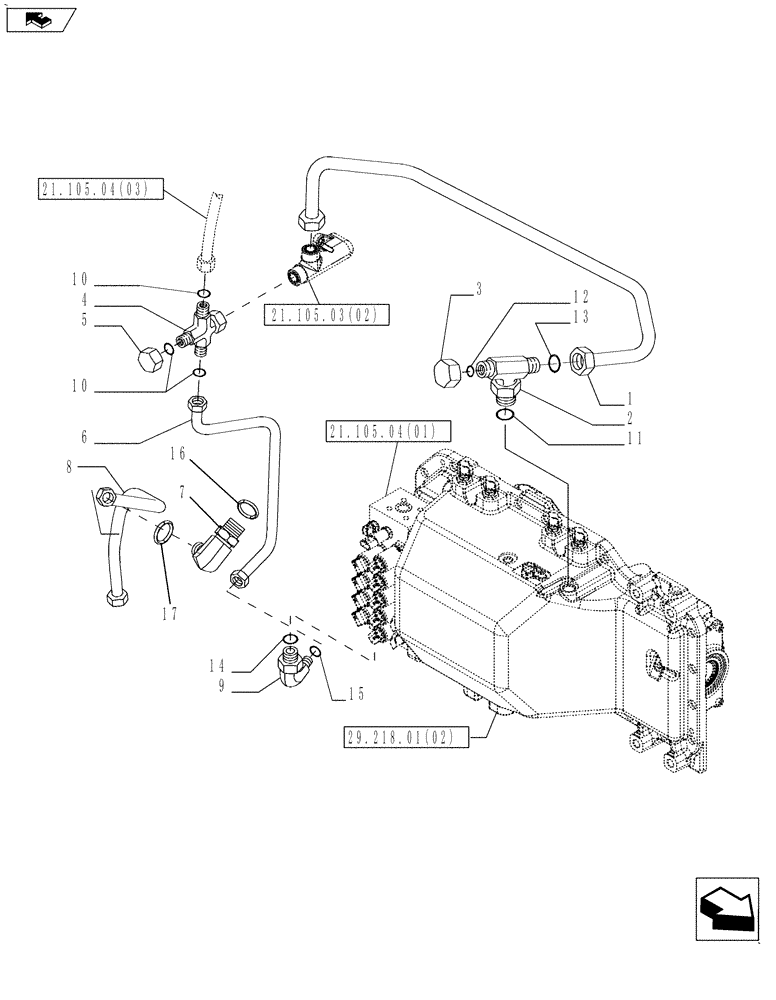

Схема запчастей Case IH MAGNUM 180 - (21.105.04[02]) - HYDRAULIC TRANSMISSION CONTROL, PIPES, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
5
9
17
6
home
1
15
11
29.218.01(02)
21.105.04(03)
21.105.03(02)
21.105.04(01)
7
10
12
13
16
8
4
3
14
2
10

Артикул

Название

Примечание

Количество

1

84483799

HYD TUBE

BOOST

1шт.

2

87687885

HYD CONNECTOR

Incl.11-13

1шт.

3

9625546

CAP,11/16" - 16 ORFS

1шт.

4

87608130

HYD CONNECTOR

Incl.10

1шт.

5

9840576

CAP,1" - 14 ORFS

1шт.

6

87718486

HYD TUBE

To Solenoid Valve Manifold

1шт.

7

87722754

HYD CONNECTOR,M27 x 2

Inc. 16, 17

1шт.

8

87722757

HYD TUBE

By Pass

1шт.

9

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl.14, 15

1шт.

10

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

11

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

12

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

13

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

14

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

14438185

O-RING,24mm ID x 3mm

1шт.

17

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

Выбрано товаров: 17
