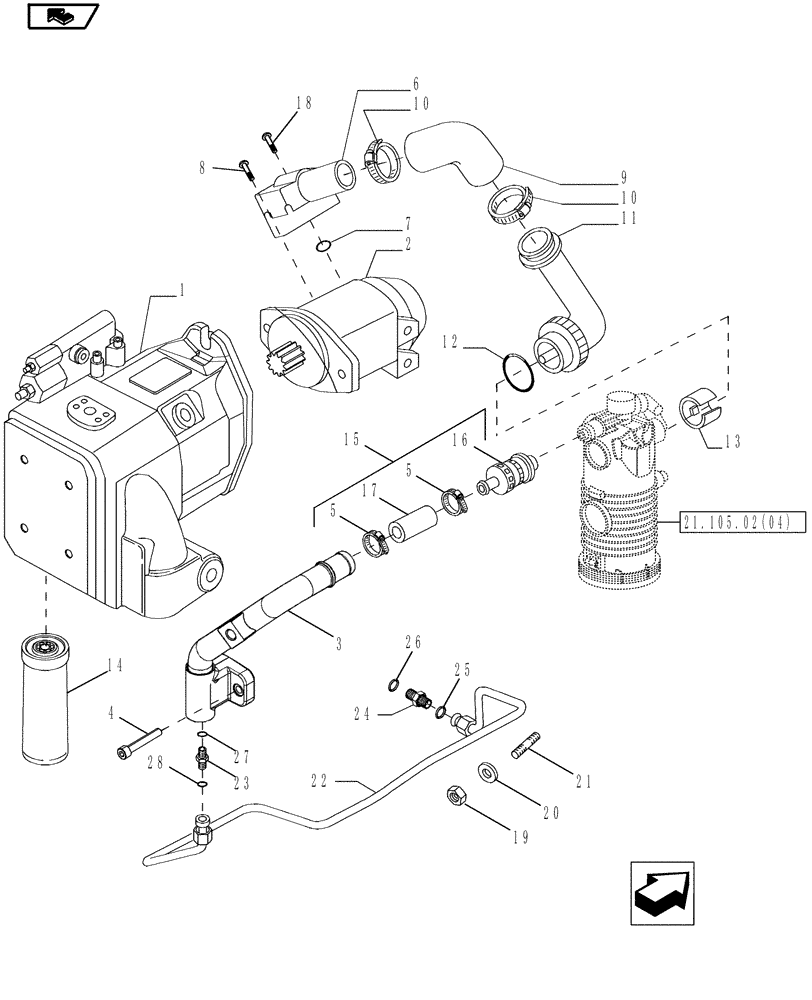

Запчасти Case IH MAGNUM 180 (21.105.02[01]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT, PUMPS, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION

1

84184551

HYDRAULIC PUMP,56 CC

CCLS Variable Displacement, 72cc/56cc

1шт.

84184551R

REMAN-HYD PUMP

MAGNUM 180, MAGNUM 190, MAGNUM 210

1шт.

84184551C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84299334

HYDRAULIC PUMP,23.59 CC

Steering, 25cc/rev

1шт.

3

84173095

HYD TUBE,23 mm ID x 25 mm OD

1шт.

4

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

6

87323549

FLANGE

1шт.

7

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

8

14306921

HEX SOC SCREW,M8 x 50mm, Cl 8.8

2шт.

9

87323539

ELBOW,90 Deg, 31mm ID x 45mm OD

1шт.

10

82039346

HOSE CLAMP,30mm - 45mm, Worm Gear

2шт.

11

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

1шт.

12

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

13

87330755

STOP DEVICE

1шт.

14

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

1шт.

15

87492483

HOSE,32mm Bore Dia

ASSY, Inc. 5, 16, 17

1шт.

16

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

17

87492477

HOSE

1шт.

18

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.

19

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

20

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

21

13555334

STUD

2шт.

22

84161896

HYD TUBE,10 mm OD

1шт.

23

87634393

CHECK VALVE,13/16" - 16 ORB x 13/16" - 16 ORFS

1шт.

24

5196844

HYD CONNECTOR

1шт.

25

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

26

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

27

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

28

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.
