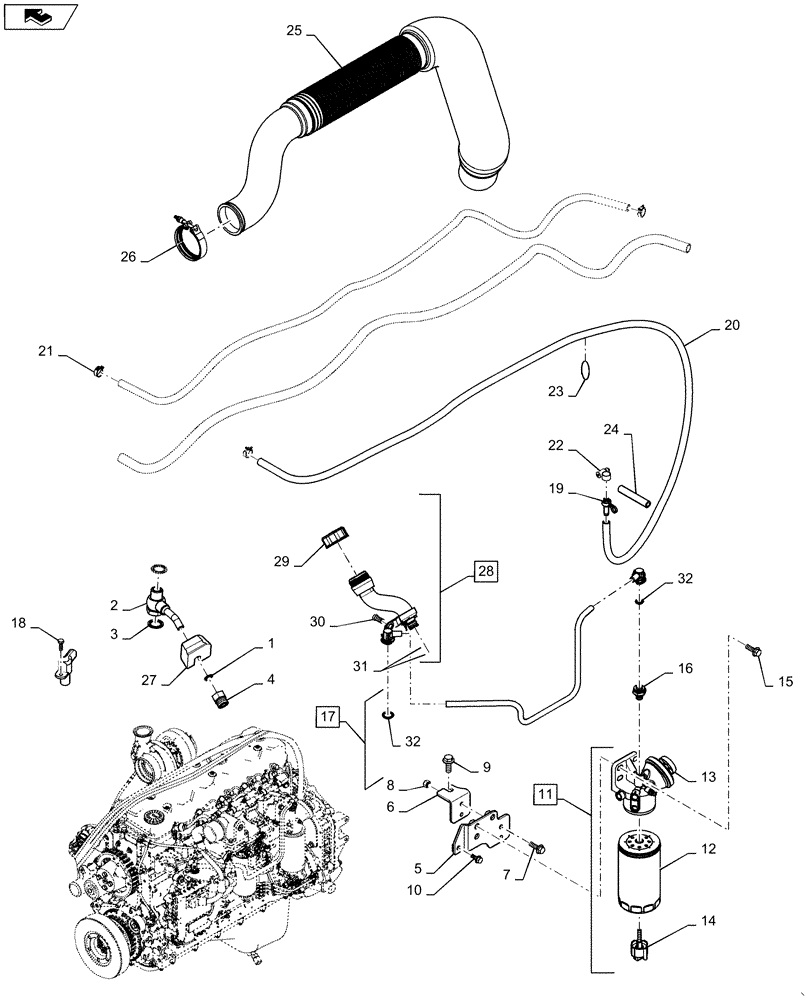

Запчасти Case IH MAGNUM 180 (10.214.01) - FUEL FILTER & PLUMBING (10) - ENGINE

1

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

2

87567452

BANJO BOLT

M22X1.5

1шт.

3

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

M22

2шт.

4

701-905

CAP,13/16" - 16

1шт.

5

84124736

BRACKET

Fuel Filter Mounting

1шт.

6

84124734

PLATE

Filter Mounting

1шт.

7

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

8

892-11008

LOCK WASHER,8mm ID

2шт.

9

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

11

84348875

FILTER ASSY

Assy; Incl 12 - 14

1шт.

12

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

1шт.

13

87705123

FILTER HEAD

1шт.

14

87519307

SENSOR

1шт.

15

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

16

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

246

1шт.

17

84161573

FUEL TUBE,13 mm OD

Incl 32

1шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

19

87408919

FITTING

NG-8 Straight

1шт.

20

84160811

FLEXIBLE HOSE,9.52 mm ID x 2820.00 mm, SAE 30R7

1шт.

21

1348264C1

HOSE CLAMP

3шт.

22

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

23

291207C1

CLAMP

Strap

1шт.

24

84253254

PROTECTIVE COVER

1шт.

25

84476100

TUBE

Exhaust Outlet

1шт.

26

J903652

CLAMP

V-Band

1шт.

27

84535332

BLOCK

Oil Drain Dampener

1шт.

28

84357886

FILLER

Assy, Oil, RH

1шт.

29

87674802

CAP,7mm ID x 9mm OD x 12mm L

Oil Fill

1шт.

30

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

31

86637770

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

32

87445405

O-RING

2шт.
