Запчасти Case IH MAGNUM 180 (90.150.03) - FRONT ISOMOUNTS, WITH POWERSHIFT TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

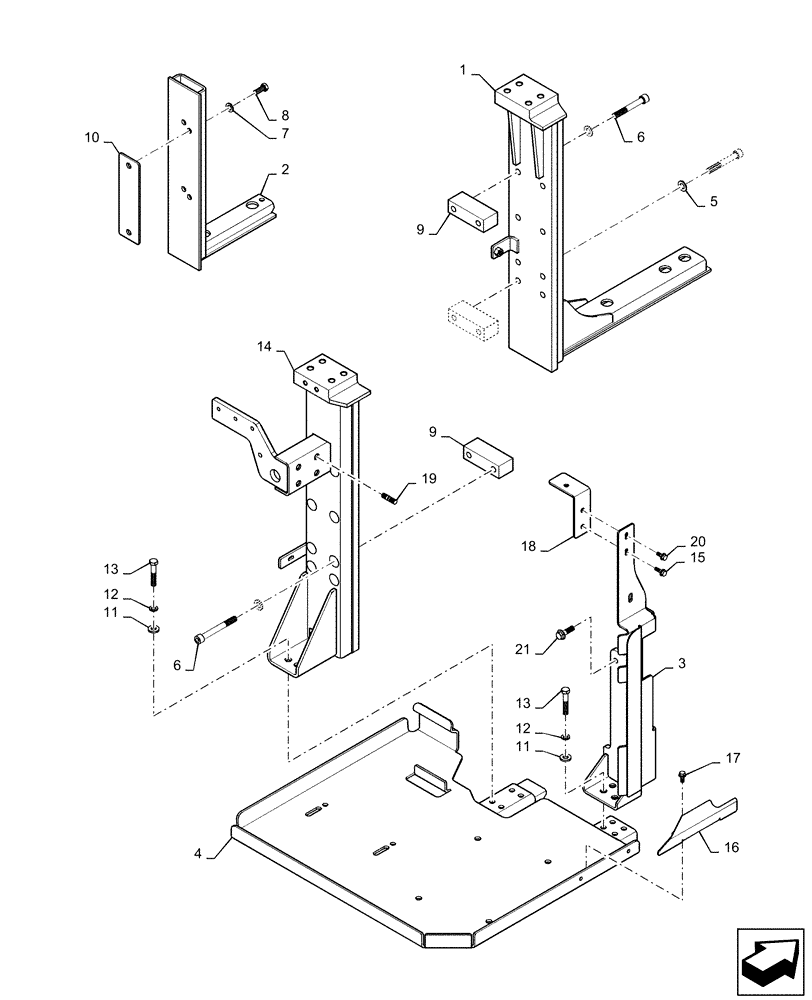

Схема запчастей Case IH MAGNUM 180 - (90.150.03) - FRONT ISOMOUNTS, WITH POWERSHIFT TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
7
9
17
11
15
8
9
6
16
6
13
21
14
2
18
5
1
12
12
10
3
4
11
20
19

Артикул

Название

Примечание

Количество

1

84123200

PLATE

LH Front ISO Mount

1шт.

2

87496282

SUPPORT

Fuel Tank

1шт.

3

47464853

SUPPORT

RH Front Isomount

1шт.

4

84499508

MOUNT

SCR Assembly, Serial Range: -ZCRH01700

1шт.

4

84566914

MOUNT

SCR Assembly, Start Serial: ZCRH01701

1шт.

5

14496831

WASHER,15mm ID x 28mm OD x 2.5mm Thk

15X28X2.5 MM HTS ZND

8шт.

6

87733389

HEX SOC SCREW,M14 x 1.5 x 120mm, Cl 10.9

HEX SOC M14 X 1.5 X 120 10.9 ZND

8шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

8

86637970

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

9

87731264

SPACER

Front Powershift

4шт.

10

87731261

SPACER

LH Rear Powershift

1шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

12

892-11012

LOCK WASHER,M12

8шт.

13

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

8шт.

14

84357199

PLATE

RH Front ISO Mount

1шт.

15

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

16

84376776

SUPPORT

SCR Cover

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

18

47464854

BRACKET

Upper SCR Support

1шт.

19

87477184

STUD

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

21

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

3шт.

Выбрано товаров: 22
