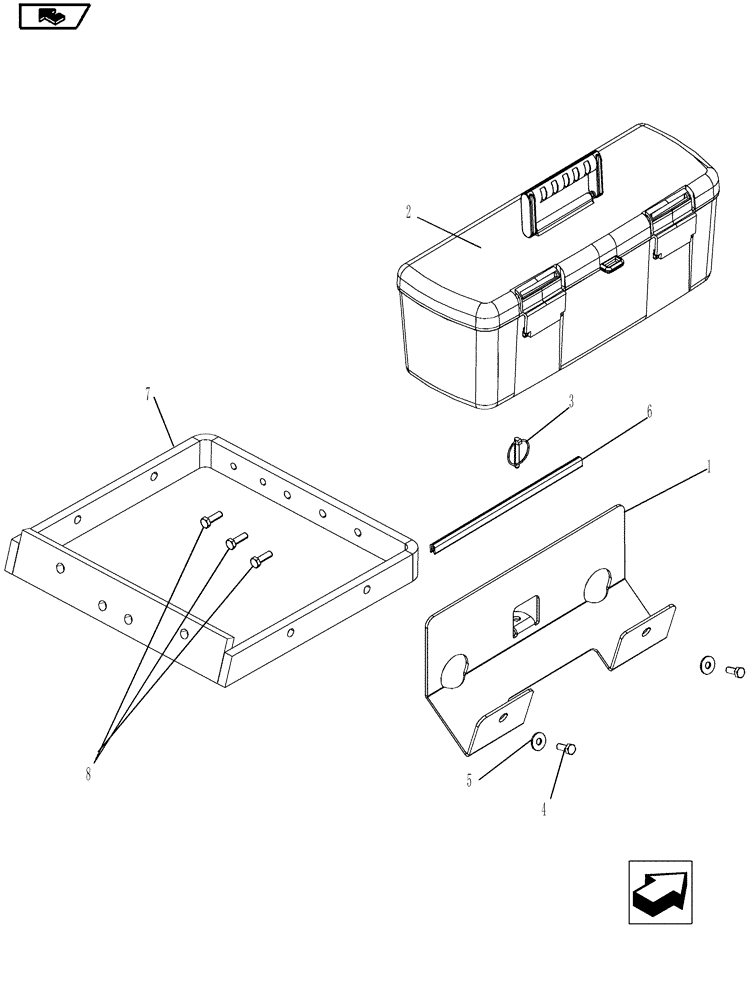

Запчасти Case IH MAGNUM 180 (90.150.02) - TOOL BOX & MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84280762

BRACKET, SUPPORTING

Tool Box Mounting

1шт.

2

87400261

TOOL BOX

1шт.

3

82013836

ROLL PIN,6mm OD

LOCK PIN Tool Box

1шт.

4

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

5

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

6

87450361

VINYL

1шт.

7

84357300

STEP PLATE

1шт.

8

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

3шт.
