Запчасти Case IH MAGNUM 180 (90.124.03[02]) - SUSPENSION ASSEMBLY WITH POSITIVE RESPONSE, SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

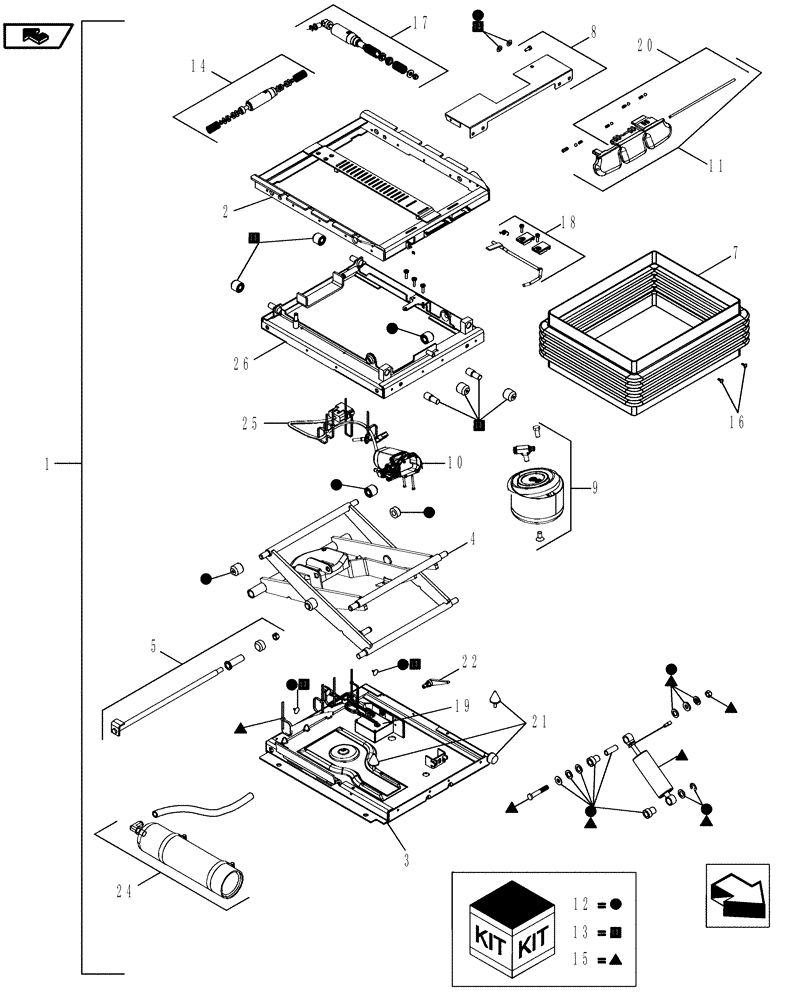

Схема запчастей Case IH MAGNUM 180 - (90.124.03[02]) - SUSPENSION ASSEMBLY WITH POSITIVE RESPONSE, SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
15
12
14
7
24
13
10
15
12
8
12
13
4
5
13
13
15
9
15
12
20
12
12
15
13
25
11
17
22
12
12
12
1
15
13
3
13
2
12
19
26
15
21
12
15
home
12
16
18

Артикул

Название

Примечание

Количество

1

84162213

SERVICE KIT

SUSPENSION, Inc. 2 - 26

1шт.

2

333274A2

ISOLATOR

Lateral Track

1шт.

3

86994256

HOUSING

Lower

1шт.

4

86994258

ARM

Suspension

1шт.

5

302033A1

SHAFT

Bearing

1шт.

7

87347943

SERVICE KIT

Suspension Boot

1шт.

8

302029A2

PLATE

Cover

1шт.

9

333279A2

KIT

Air Spring

1шт.

10

87347951

SERVICE KIT

Compressor, Passive Seat

1шт.

11

87407047

SERVICE KIT

Suspension Knobs

1шт.

12

87347945

BEARING ASSY

Suspension Bearing and Rollers

1шт.

13

87347946

SERVICE KIT

Isolator Rollers

1шт.

14

87347947

SERVICE KIT

Lateral Isolator Shock Absorber

1шт.

15

86994260

SERVICE KIT

Shock

1шт.

16

333659A1

PACKAGE,SERVICE

Boot Pin

1шт.

17

87347948

SERVICE KIT

Fore and Aft Shock Absorber

1шт.

18

373470A2

KIT

Fore and Aft Isolator Control, Black

1шт.

19

87395396

DAMPER

Control Kit

1шт.

20

373473A1

PACKAGE,SERVICE

Lateral Isolator Control

1шт.

21

333295A1

BUMPER

Suspension Bumper

1шт.

22

86994267

LEVER

Suspension Shock Cable

1шт.

23

333296A1

SERVICE KIT

Fore and Aft Isolator Shock Block (Not Shown)

1шт.

24

87347960

SERVICE KIT

Air Tank

1шт.

25

87396231

SERVICE KIT

Air Tank Hose

1шт.

26

333273A1

HOUSING

Upper

1шт.

Выбрано товаров: 25
