(90.118.05[01]) - CAB, STEPS - ASN ZCRH01701

Запчасти Case IH MAGNUM 180 (90.118.05[01]) - CAB, STEPS - ASN ZCRH01701 (90) - PLATFORM, CAB, BODYWORK AND DECALS

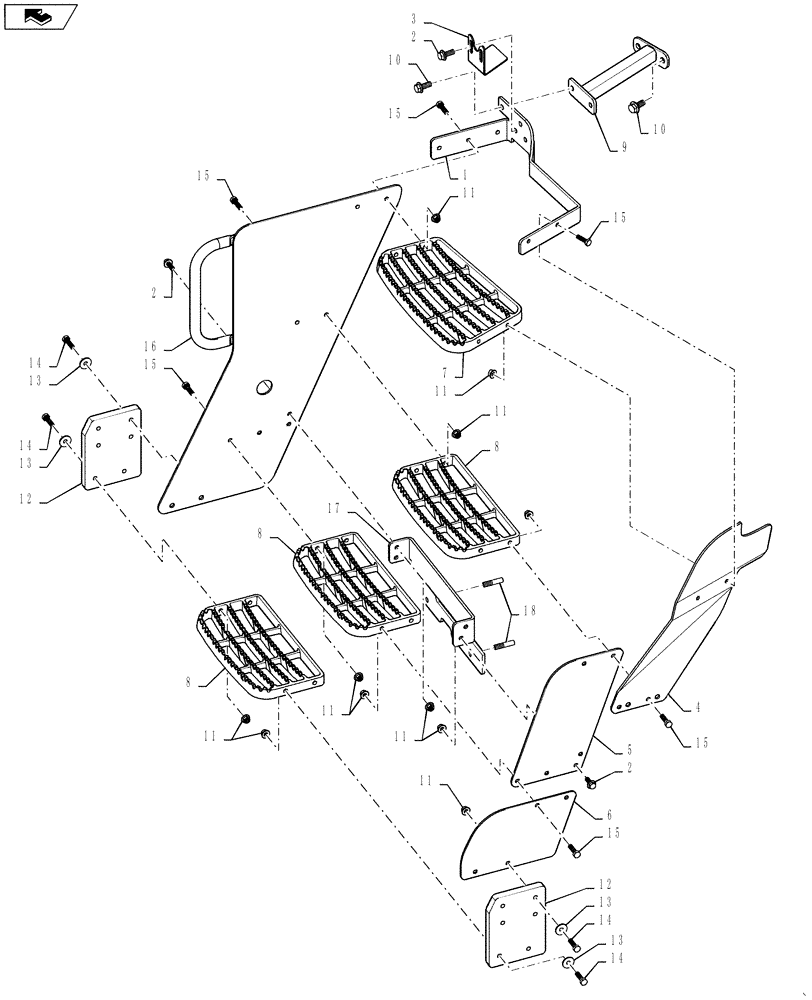

Схема запчастей Case IH MAGNUM 180 - (90.118.05[01]) - CAB, STEPS - ASN ZCRH01701 (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
11
13
2
12
1
9
13
17
15
15
13
7
16
3
2
14
14
14
11
11
12
4
11
11
18
8
8
2
15
15
11
6
15
14
home
13
8
10
11
10
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84196541

BRACKET, SUPPORTING

Upper Steps

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

6шт.

3

84381041

BRACKET, SUPPORTING

Fuel Tank Hold Down

1шт.

4

84499079

RISER

Rear Upper Step

1шт.

5

87731280

RISER

Rear Center Step

1шт.

6

84197984

RISER

Lower Step

1шт.

7

87310397

STEP

1шт.

8

87301185

STEP

3шт.

9

84122286

SUPPORT

Steps

1шт.

10

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

11

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

26шт.

12

87486039

RISER

Flexible Steps

2шт.

13

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

8шт.

14

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

4шт.

15

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

16шт.

16

84534017

RISER

With Handle

1шт.

17

84499384

SUPPORT

Step

1шт.

18

86533693

STUD,M10 x 47, Cl 8.8

2шт.
