Запчасти Case IH MAGNUM 180 (90.116.01[04]) - FENDERS, FRONT, WIDE 650MM - CNH AXLE ASN ZDRH00901 (90) - PLATFORM, CAB, BODYWORK AND DECALS

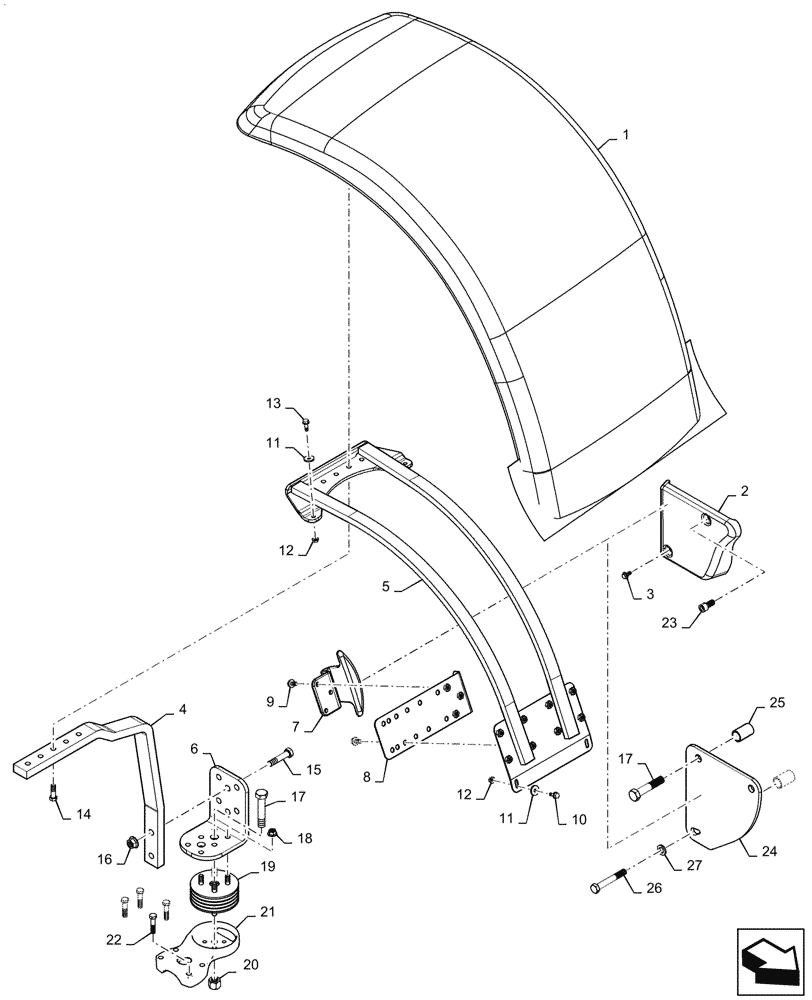

Схема запчастей Case IH MAGNUM 180 - (90.116.01[04]) - FENDERS, FRONT, WIDE 650MM - CNH AXLE ASN ZDRH00901 (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
6
26
15
7
16
18
5
17
11
4
1
17
2
24
27
20
11
12
12
22
10
8
9
14
19
23
3
25
21

Артикул

Название

Примечание

Количество

1

47451721

FENDER

Front, Wide 650 mm

2шт.

2

253850A1

BUMPER

RH Fender Stop, Non-suspended MFD Axle, To Front Frame

1шт.

2

255685A1

BUMPER

LH Fender Stop, Non-suspended MFD Axle, To Front Frame

1шт.

3

555-6

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

Non-suspended MFD Axle

2шт.

4

84546384

SUPPORT

Bar, Fender

2шт.

5

47465883

FRAME

Fender

2шт.

6

84546385

SUPPORT

Fender, Upper

2шт.

7

84546378

BUMPER

Fender

2шт.

8

84546386

PLATE

Bumper Mounting

2шт.

9

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

14шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

13

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

14

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

15

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

16

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

17

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

1шт.

18

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

19

226690A2

RUBBER BUMPER

Fender Mount

2шт.

20

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

21

84573070

BRACKET

Fender, Axle Mount, Cl. 4.75 or 5.0 MFD Axle

2шт.

21

47399567

BRACKET

Fender, Axle Mount, Cl. 4.0 or 4.5 MFD Axle

2шт.

22

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

Cl. 4.75 or 5.0 MFD Axle

8шт.

22

1148521

BOLT,Hex, M16 x 85, 10.9

Cl. 4.0 or 4.5 MFD Axle

8шт.

23

565-111

SCREW,M20 x 40mm, Cl 8.8

Non-suspended MFD Axle

2шт.

24

47535226

PAD

Fender Stop, Suspended MFD Axle, To Front Frame

2шт.

25

84580679

SPACER

Suspended MFD Axle

6шт.

26

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

Suspended MFD Axle

2шт.

27

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Suspended MFD Axle

2шт.

Выбрано товаров: 30
