Запчасти Case IH MAGNUM 180 (90.116.01[03]) - FENDERS, FRONT, WIDE 600MM - CNH AXLE CL 4 BSN ZDRH00901 (90) - PLATFORM, CAB, BODYWORK AND DECALS

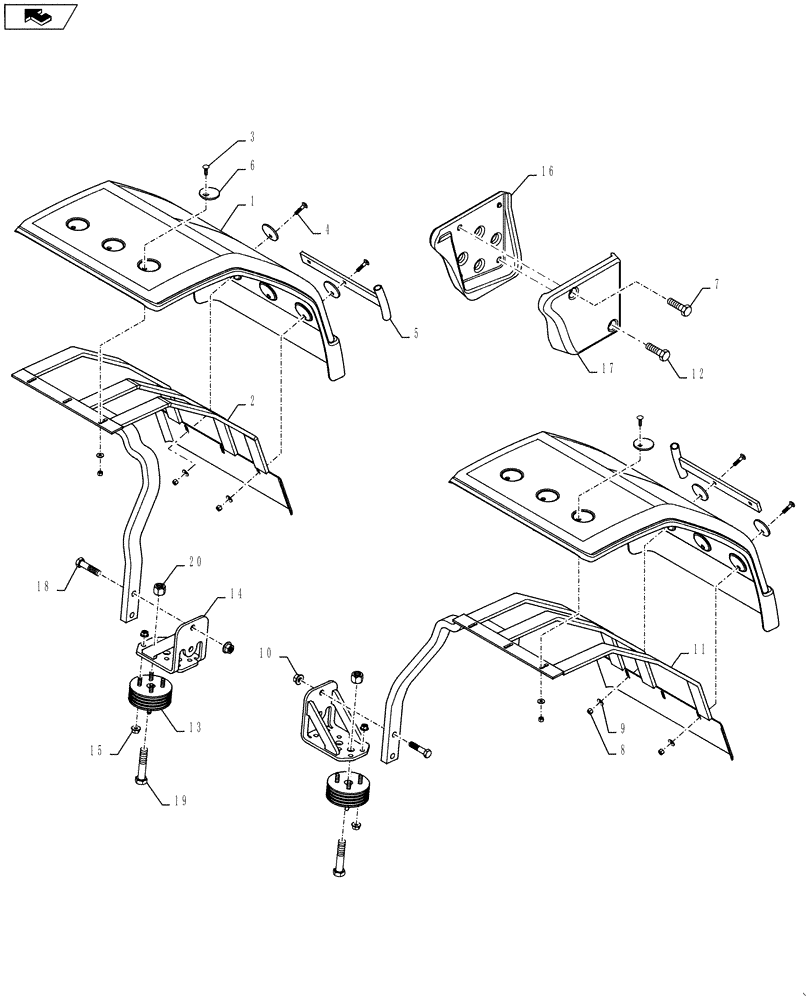

Схема запчастей Case IH MAGNUM 180 - (90.116.01[03]) - FENDERS, FRONT, WIDE 600MM - CNH AXLE CL 4 BSN ZDRH00901 (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
4
8
9
20
13
11
6
19
10
16
18
5
15
3
12
7
1
17
2
14

Артикул

Название

Примечание

Количество

1

84480114

FENDER

Front, Wide, 600mm

2шт.

2

244031A3

SUPPORT ASSY.

Fender, RH

1шт.

3

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

8шт.

4

612-7

CARRIAGE BOLT,M8 x 40mm, Class 4.6

4шт.

5

87319913

BAR

Fender Stop

2шт.

6

1340559C2

SQ HOLE WASHER,8.71mm ID x 63.5mm OD x 4.76mm Thk

2-1/2 DIA Off-Center Square Hole

12шт.

7

565-111

SCREW,M20 x 40mm, Cl 8.8

2шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

9

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

12шт.

10

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

11

244030A3

SUPPORT ASSY.

Fender, LH

1шт.

12

555-6

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

13

226690A2

RUBBER BUMPER

Fender Mount

2шт.

14

87427813

SUPPORT

Upper Fender

2шт.

15

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

16

255685A1

BUMPER

FLEX, LH

1шт.

17

253850A1

BUMPER

FLEX, RH

1шт.

18

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

19

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

20

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

Выбрано товаров: 20
