Запчасти Case IH MAGNUM 180 (41.200.01) - STEERING SYSTEM, MFD, POWERSHIFT TRANSMISSION (41) - STEERING

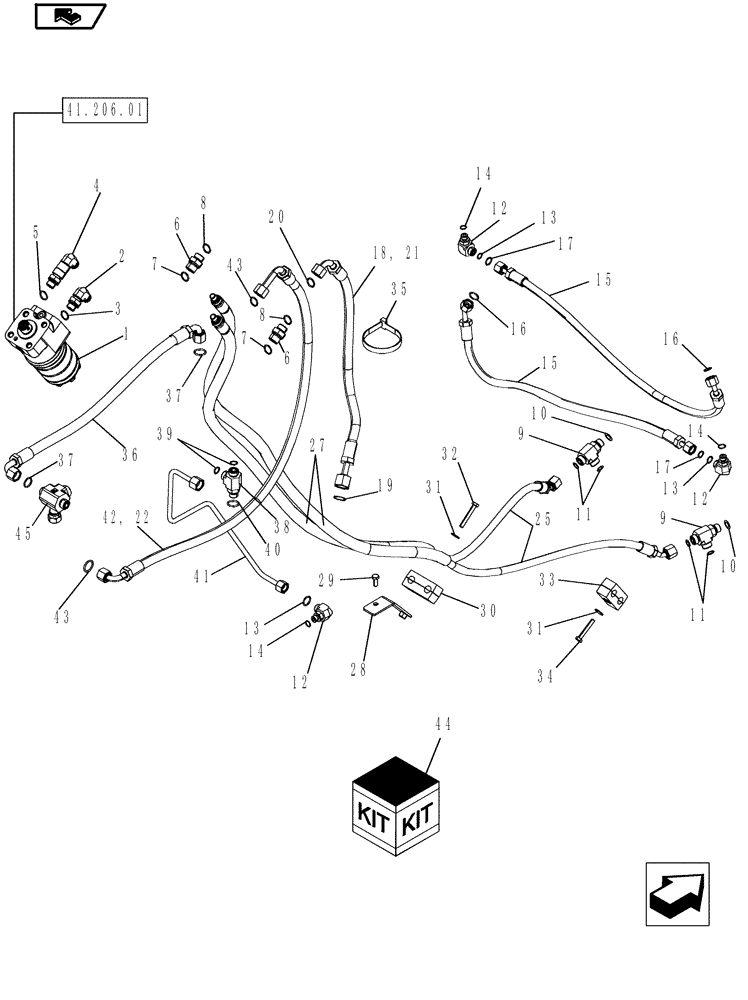

Схема запчастей Case IH MAGNUM 180 - (41.200.01) - STEERING SYSTEM, MFD, POWERSHIFT TRANSMISSION (41) - STEERING
17
9
30
7
37
12
41.206.01
8
39
43
44
25
27
40
29
20
14
32
38
37
15
19
34
home
10
45
43
36
33
42
13
14
35
6
6
12
16
21
15
1
28
5
3
8
9
7
2
14
31
4
11
18
41
12
31
13
16
11
17
10
13

Артикул

Название

Примечание

Количество

1

47136607

HYDRAULIC STEERING

Pump, 60/220 CC/REV

1шт.

1

445304A2

PUMP

293 CC/REV, 40K

1шт.

1

445304A2R

REMAN-STEERING VALVE

Reman For New P/N 445304A2, 293 CC/REV, 40K

1шт.

1

445304A2C

CORE-STEERING VALVE

Return Part Number

1шт.

1

87364990

STEERING VALVE

74/305 CC/REV, 50K

1шт.

2

87401123

ELBOW

90 Degree, Inc. 3, 46 (Qty 1)

1шт.

3

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

Install After Removing Existing O-Ring

1шт.

4

87401124

90 ELBOW

90 Degree, Inc. 5, 46 (Qty 1)

1шт.

5

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

Install After Removing Existing O-Ring

1шт.

6

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

Inc. 7 - 8

2шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Adjustable, Inc. 10 - 11

2шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Adjustable, Inc. 13 - 14

3шт.

13

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

15

249817A2

HOSE,9.52mm ID x 778mm L

Assembly, Steering Brake Cylinder to Cylinder, Inc. 16 - 17

2шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

84202758

HOSE ASSY.

Steering Supply, Inc. 19 - 20

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

21

87746678

CONDUIT,27mm ID x 34mm OD x 478mm L

Steering Supply Powershift

1шт.

24

87746679

CONDUIT

Steering Return Powershift

1шт.

25

87401118

HOSE,9.5mm ID x 1950mm L

Steering Left Hand/Right Hand, Inc. 26

2шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

87753673

CONDUIT

2шт.

28

84137985

BRACKET

Assembly, Steering Hose Clamp

1шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

30

87749784

CLAMP

Hydraulic Tube

1шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

32

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

33

87000150

CLAMP,15.869mm ID

Hydraulic Tube

2шт.

34

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

35

86991007

CABLE TIE,509mm L

CABLE STRAP

1шт.

36

84186720

HYDRAULIC HOSE

Hydraulic, Drop Box Lube, Inc. 37

1шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

38

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 39 - 40

1шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

40

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

41

87740778

TUBE,.375" OD

Lower Drop Box Lube

1шт.

42

84169097

HOSE ASSY.

Inc. 43

1шт.

43

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

44

87454545

SEAL KIT

Steering Pumps, Includes (2) Seals, (8) O-Rings

1шт.

45

84168644

TEE

4-Way, With Swivel

1шт.

46

87300072

O-RING

Retaining, Install After Removing Existing O-Ring (Not Shown)

2шт.
