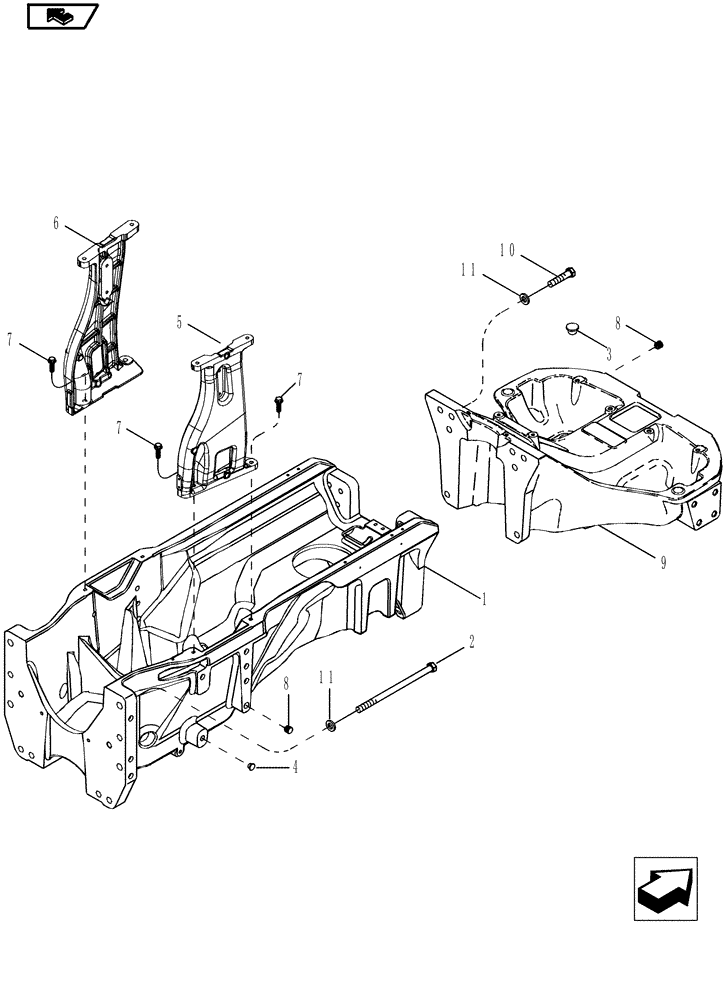

Запчасти Case IH MAGNUM 180 (39.100.01) - FRONT FRAME (39) - FRAMES AND BALLASTING

1

87495795

FRAME

1шт.

2

828-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

10шт.

3

353-79

PLUG

6шт.

4

128209A1

PLUG

4шт.

5

84126292

SUPPORT

Hood Support, Right Hand

1шт.

6

84126294

SUPPORT

Hood Support, Left Hand

1шт.

7

87018388

BOLT,Hvy Hex, M12 x 45mm, Cl 10.9

4шт.

8

305138A1

PLUG

12шт.

9

87703127

FRAME

Extension

1шт.

10

258504A1

BOLT

8шт.

11

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

18шт.
