Запчасти Case IH MAGNUM 180 (27.100.02[02]) - TRANSMISSION, COVERS AND SUPPORTS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (27) - REAR AXLE SYSTEM

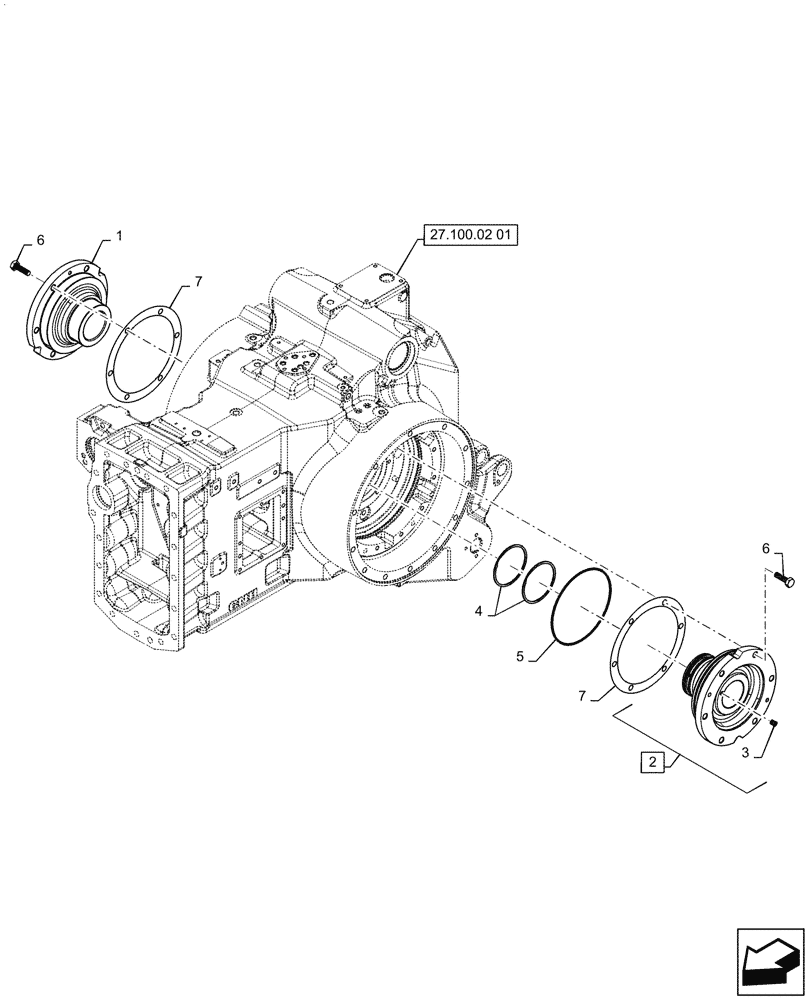

![Схема запчастей Case IH MAGNUM 180 - (27.100.02[02]) - TRANSMISSION, COVERS AND SUPPORTS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (27) - REAR AXLE SYSTEM](https://partsell.ru/storage/images/caseih/142218.png)
27.100.02 01
2
6
7
7
5
6
4
3
1
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
5185923
SUPPORT
RH
1шт.
2
47136375
SUPPORT
LH, Incl 3
1шт.
3
14326101
PLUG,M8 x 11
1шт.
4
5131232
OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk
2шт.
5
14462280
O-RING,6.237" ID x 0.103" Width
1шт.
6
14233724
LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd
12шт.
7
5152097
SHIM,168mm ID x 208mm OD x 0.15mm Thk
2шт.
7
5152098
SHIM,168mm ID x 208mm OD x 0.2mm Thk
2шт.
7
5152099
SHIM,168mm ID x 208mm OD x 0.5mm Thk
2шт.
Выбрано товаров: 9
