(25.102.01[02]) - DIFFERENTIAL, MFD 12-BOLT CLASS 4 AXLE - BSN ZBRH03333

Запчасти Case IH MAGNUM 180 (25.102.01[02]) - DIFFERENTIAL, MFD 12-BOLT CLASS 4 AXLE - BSN ZBRH03333 (25) - FRONT AXLE SYSTEM

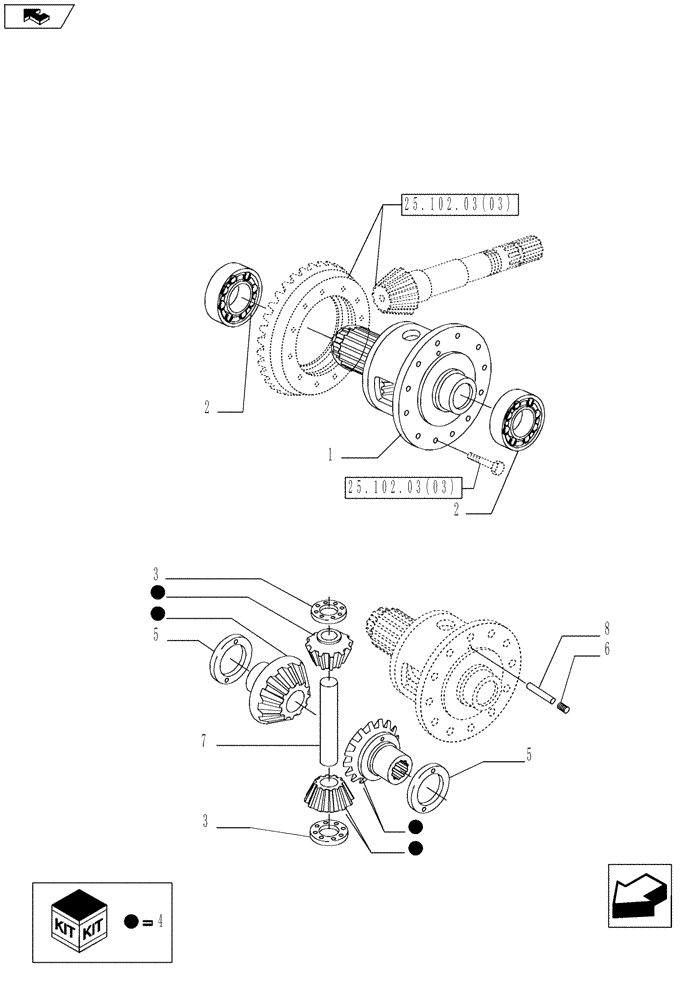

Схема запчастей Case IH MAGNUM 180 - (25.102.01[02]) - DIFFERENTIAL, MFD 12-BOLT CLASS 4 AXLE - BSN ZBRH03333 (25) - FRONT AXLE SYSTEM
4
4
1
3
home
25.102.03(03)
25.102.03(03)
8
3
4
5
4
2
7
5
6
4
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87342770

HOUSING

1шт.

2

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

2шт.

3

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

2шт.

4

87381508

GEAR SET

1шт.

5

4997236

THRUST WASHER,51mm ID x 70mm OD x 1.6mm Thk

1шт.

6

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

7

4991652

PIN,23mm OD x 157mm L

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.
