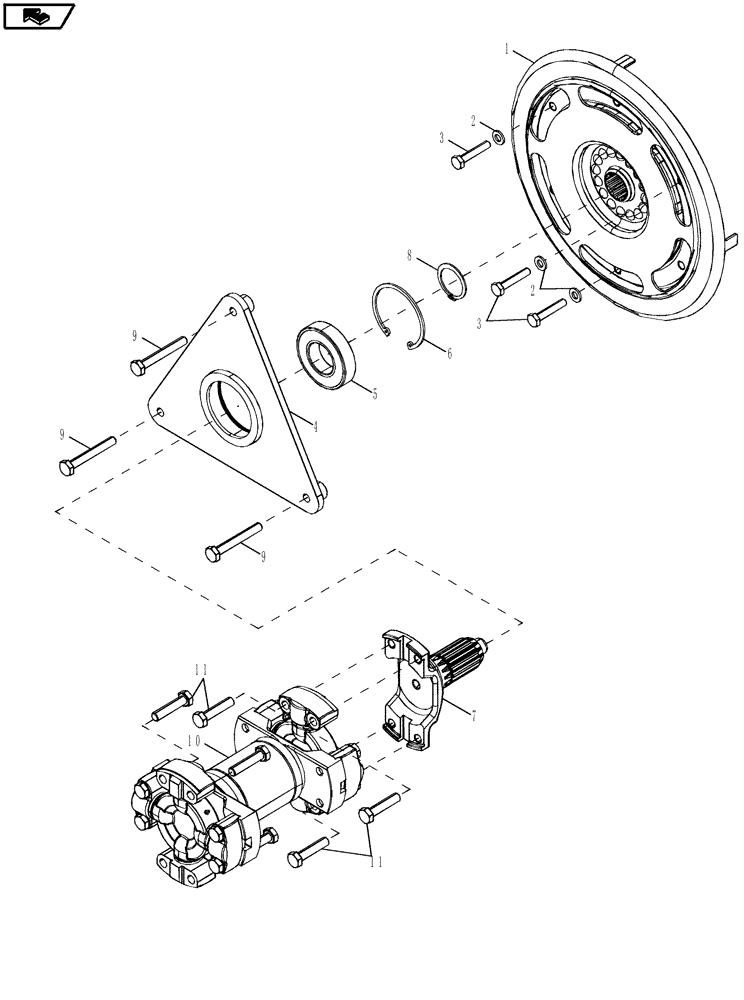

Запчасти Case IH MAGNUM 180 (21.135.02) - TRANSMISSION DRIVE SHAFT & DAMPER (21) - TRANSMISSION

1

84266464

DAMPER

1шт.

2

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

3шт.

3

15888730

BOLT,Hex, M10 x 1.25 x 55mm, Cl 10.9

3шт.

4

84321257

SUPPORT

1шт.

5

84315992

BALL BEARING

1шт.

6

300633

SNAP RING,M80, Internal

1шт.

7

84368147

SHAFT

1шт.

8

370006

SNAP RING,M40, Ext

1шт.

9

15971331

BOLT,Hex, M10 x 1.25 x 75mm, Cl 10.9

3шт.

10

84321258

DRIVE SHAFT

6C

1шт.

11

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.
