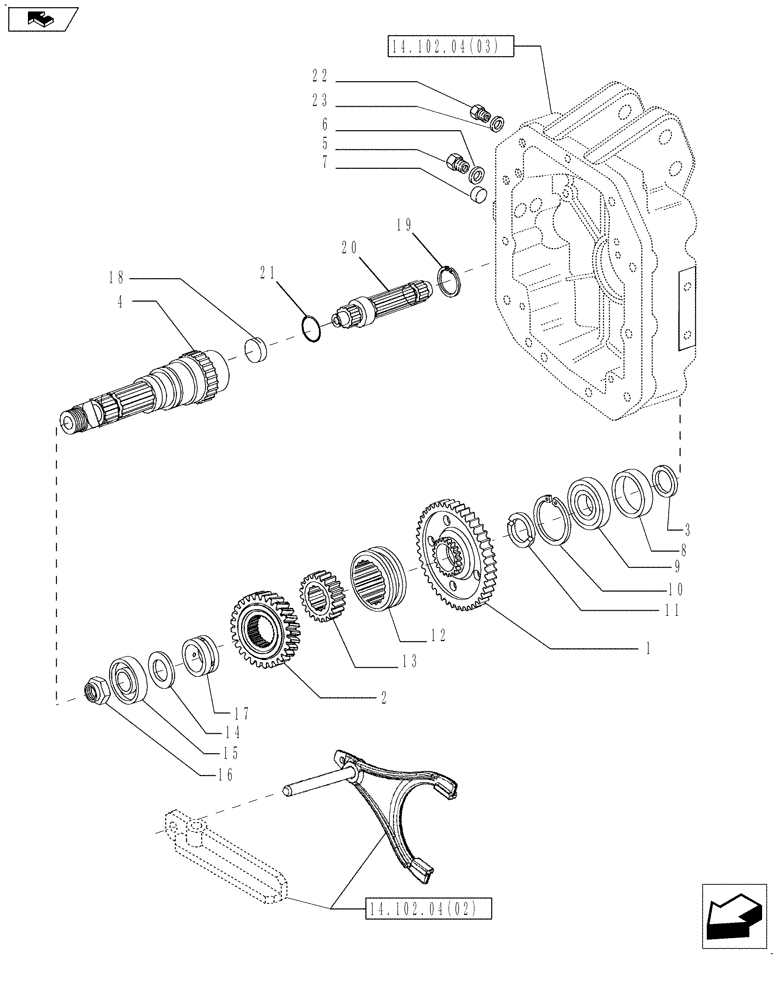

Запчасти Case IH MAGNUM 180 (14.102.04[01]) - PTO 540/1000 RPM, SHAFT & GEARS, WITH POWERSHIFT TRANSMISSION (14) - MAIN GEARBOX & DRIVE

1

87600398

DRIVING GEAR

540 RPM

1шт.

2

87548135

DRIVING GEAR

1000 RPM

1шт.

3

47131852

RETAINER,70.5mm ID x 86mm OD x 4mm Thk

1шт.

4

47131841

SHAFT

1шт.

5

10300814

PLUG,HEX, M18 x 1.5

M8 x 1.5

1шт.

6

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

18 x 24 x 1.5

1шт.

7

14328701

PLUG,M20, Tapered

Conical, 20 x 6MM

1шт.

8

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

80 x 100 x 10

1шт.

9

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

70 x 125 x 24

1шт.

10

388294

SNAP RING,M125 x 4mm Thk, Internal

1шт.

11

47132124

CIRCLIP,M70

1шт.

12

87578126

SLEEVE,Z12

1шт.

13

87578128

GEAR,21T Internal / 33T External

1шт.

14

5182629

ANTI-WRAP PLATE

45.1 x 70 x 8

1шт.

15

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

40 x 90 x 23

1шт.

16

5123114

RING NUT,Hex, M36 x 1.5

M36 x 17

1шт.

17

5151437

BUSHING,44.4mm ID x 55mm OD x 35mm L

1шт.

18

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.

19

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

20

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM

1шт.

20

47130744

PTO SHAFT,21T, 20T, 182mm L

1000 RPM, 1-3/8", 21 Teeth

1шт.

20

47132584

PTO SHAFT

1000 RPM, 1-3/4", 20 Teeth

1шт.

21

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

22

10118540

PLUG,M10 x 1 x 11, Brass

2шт.

23

14437585

O-RING,8.00mm ID x 1.50mm

2шт.
