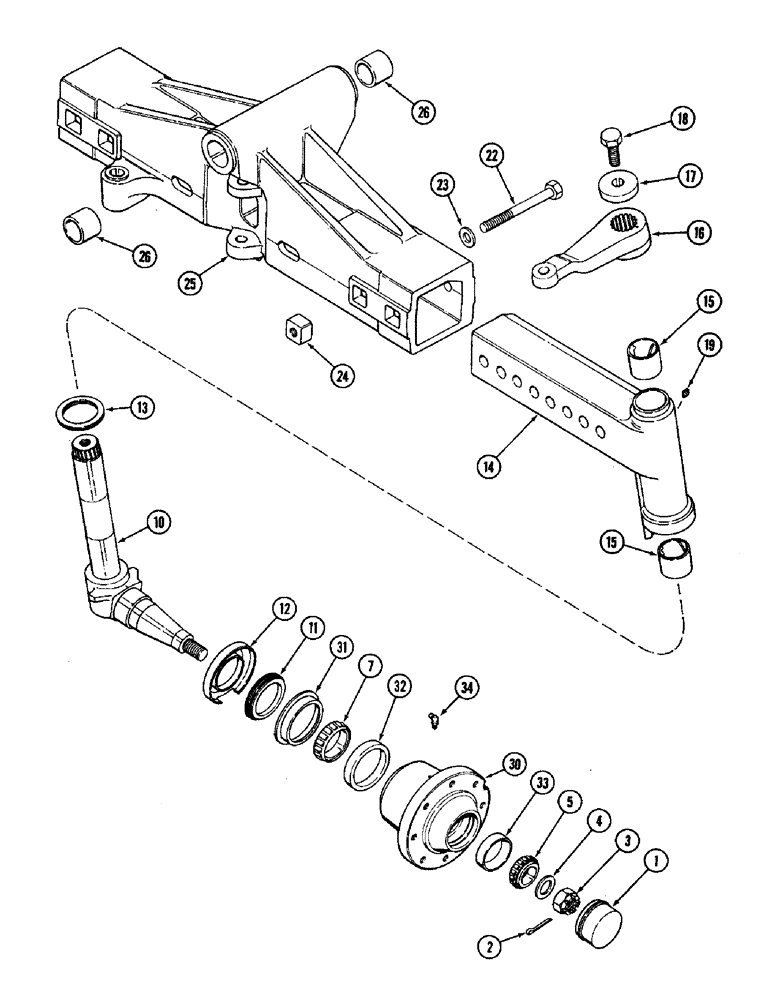

Запчасти Case IH 8950 (5-022) - ADJUSTABLE FRONT AXLE, SPINDLE AND WHEEL HUB, TWO WHEEL DRIVE TRACTOR (05) - STEERING

1

189425C1

HUB CAP

wheel hub

2шт.

2

732-6350

COTTER PIN,M6.3 x 50

2шт.

3

1259683C1

NUT

hex, slotted, 30 mm - 1.5

2шт.

4

896-12030

WASHER,33mm ID x 56mm OD x 5mm Thk

flat, 33 x 56 x 5 mm, hardened

2шт.

5

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

tapered roller

2шт.

7

ST753B

BEARING ASSY,66.67mm ID x 22mm W

tapered roller

2шт.

10

1259519C2

STEERING KNUCKLE

SPINDLE ASSEMBLY, Includes: Ref. 11, 12

2шт.

11

491641C1

SEAL

front wheel spindle

1шт.

12

1259522C1

SHIELD

dust, front wheel spindle

1шт.

13

1270815C1

THRUST BEARING

thrust wheel spindle

2шт.

14

1264574C2

EXTENSION ASSY.

AXLE - LH section, Incl. item 15

1шт.

14

1264575C2

EXTENSION ASSY.

AXLE - RH section, Incl. Ref. 15

1шт.

15

1259518C1

BUSHING,63.53mm ID x 67.21mm OD x 50.8mm L

spindle

2шт.

16

1259526C2

ARM

steering spindle, left-hand

1шт.

16

1259527C2

STEERING ARM

spindle, right-hand, shown

1шт.

17

1259669C2

WASHER

steering arm retainer

2шт.

18

614-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 8.8, Full Thd

2шт.

19

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

22

828-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

4шт.

23

896-12024

WASHER,26mm ID x 44mm OD x 5mm Thk

flat, 26 x 44 x 5 mm, hardened

4шт.

24

1264635C1

NUT

square, special

4шт.

25

1289093C2

HOUSING

AXLE - center section

1шт.

26

196294A1

BUSHING

front pivot

2шт.

30

1259528C1

HUB

ASSEMBLY - wheel, Includes: Ref. 31, 32, 33

2шт.

31

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

hub seal

1шт.

32

29214H

BEARING CUP,110mm OD x 18.82mm W

tapered roller bearing, 4-5/16 inch OD

1шт.

33

130503H

BEARING CUP

tapered roller bearing, 3-17/64 inch OD

1шт.

34

219-404

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

2шт.
