Запчасти Case IH 8950 (5-012) - STEERING PUMP, MFD TRACTOR (05) - STEERING

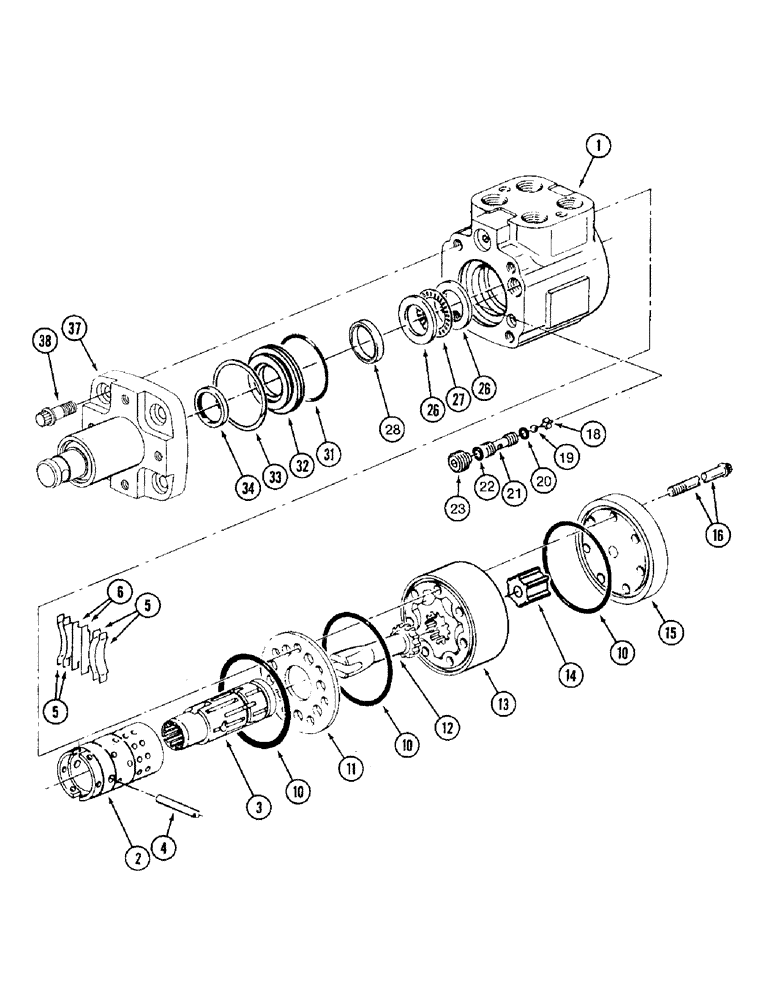

Схема запчастей Case IH 8950 - (5-012) - STEERING PUMP, MFD TRACTOR (05) - STEERING
34
38
6
26
2
5
10
21
14
12
11
4
33
26
3
37
32
31
13
1
20
23
15
27
28
10
16
10
18
22
19
5

Артикул

Название

Примечание

Количество

225390A2

STEERING VALVE

ASSEMBLY - steering, hydrostatic, Includes: Ref. 1-34

1шт.

225390A2R

REMAN-HYD PUMP

8930, 8940, 8950, All (1/97-12/98)

1шт.

225390A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - centering

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - centering

4шт.

6

NSS

NOT SOLD SEPARAT

SPACER - spring

2шт.

10

238-6040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 6, 90 Duro

End cap (Replaces N6392 O-ring)

3шт.

Part of Seal Kit P/N 1343658C3

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - spacer

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - drive, gerotor

1шт.

13

NSS

NOT SOLD SEPARAT

GEROTOR - pump

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - gerotor

1шт.

15

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT - retaining

7шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - check ball

1шт.

19

NSS

NOT SOLD SEPARAT

BALL - check

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

(Replaces L30893)

1шт.

Part of Seal Kit P/N 1343658C3

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT - ball

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - set

1шт.

26

NSS

NOT SOLD SEPARAT

RACE - thrust bearing

2шт.

27

NSS

NOT SOLD SEPARAT

BEARING - needle, thrust

1шт.

28

121179A1

SEAL

teflon

1шт.

Part of Seal Kit P/N 1343658C3

1шт.

31

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 1343658C3

1шт.

32

NSS

NOT SOLD SEPARAT

BUSHING - seal gland

1шт.

33

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

34

18-137

OIL SEAL

input, dust, replaces 697494R91 seal

1шт.

37

1343647C1

HOUSING

COLUMN ASSEMBLY - pump, Includes: Ref. 38

1шт.

38

1343650C1

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

4шт.

1343658C3

SEAL KIT

KIT - low torque, Includes: REF. 10, 20, 28, 31 & 34

1шт.
