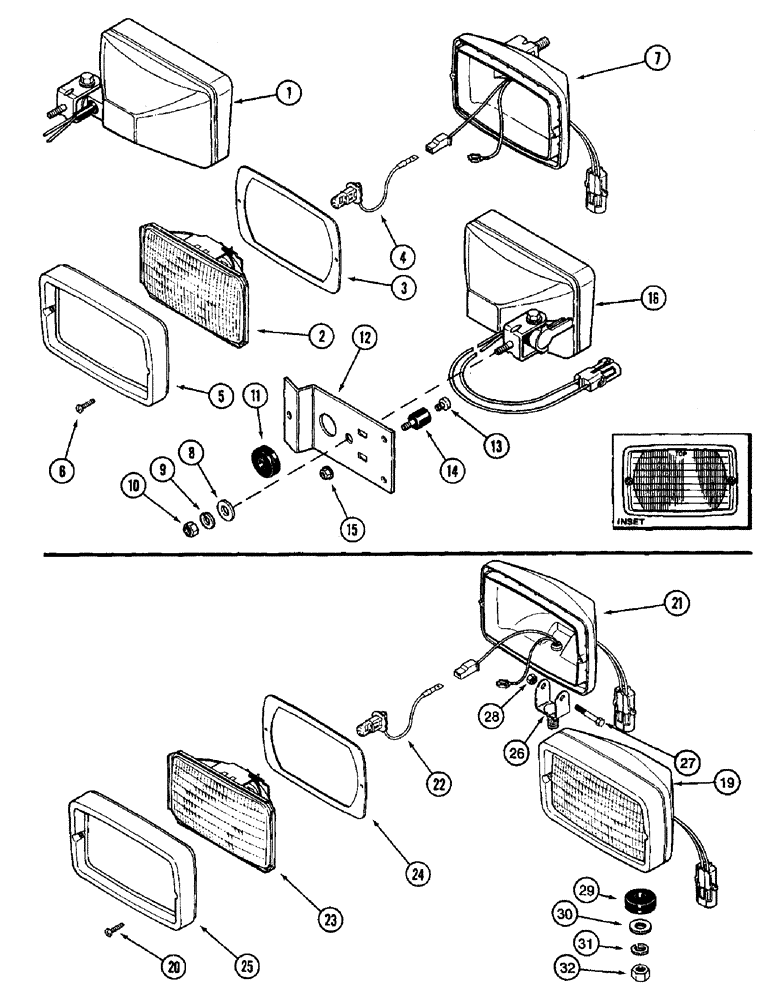

Запчасти Case IH 8950 (4-040) - LAMP ASSEMBLIES (04) - ELECTRICAL SYSTEMS

A187547

LAMP

KIT - flood lamp, lower front, order from Machinery Price List, Includes: Ref. 1-15

2шт.

1

92266C2

HEADLIGHT

LAMP ASSEMBLY - flood, left, Includes: Ref. 2-7

1шт.

2

1964807C1

LAMP BASE

LENS - reflector, lamp, standard glass, if used, lower front flood

1шт.

2

276498A1

LENS

refector, lamp, tempered glass, if used, lower front flood, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - lens, lower front flood lamp

1шт.

4

1312210C2

BULB,Halogen H3, 12V, 55W

lamp, Halogen, replaces 1312210C1 bulb, lower front flood

1шт.

5

1964806C1

BEZEL

HOUSING - lamp, front, lower flood

1шт.

6

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

If used, lower front flood lamp

2шт.

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

machine, pan Phillips, 1/4 NC x 3/8 inch, if used, lower front flood lamp

2шт.

7

NSS

NOT SOLD SEPARAT

BASE - lamp, lower front flood

1шт.

495-81140

WASHER,13/32" x 1 1/4" x .060"

If used, lower front flood lamp

1шт.

9

892-11010

LOCK WASHER,M10

Lower front flood lamp

1шт.

10

825-1410

NUT,M10, Cl 8

Lower front flood lamp

1шт.

11

96901C1

GROMMET

blower motor wire, lamp wiring, lower front flood lamp

1шт.

12

1334607C2

BRACKET

mounting, flood lamp, lower front

1шт.

13

1960750C1

SCREW,Pan HD, 1/4" - 20 x 3/8"

special, 1/4 NC x 3/8 inch, lower front flood lamp

3шт.

14

1334650C1

SHOCK ABSORBER

MOUNT - rubber, lower front flood lamp

3шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Lower front flood lamp

3шт.

16

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - flood, lower right (See Note)

1шт.

A187548

LIGHT

KIT - flood lamp, fender, order from Machinery Price List, assembly, Includes: All Ref. No. Below

2шт.

19

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

ASSEMBLY - flood, fender lamp assembly, Includes: Ref. 20-28

1шт.

20

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

Fender flood lamp, assembly

2шт.

20

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

machine, pan Phillips, 1/4 NC x 3/8 inch, if used, fender flood lamp, assembly

2шт.

21

NSS

NOT SOLD SEPARAT

BASE - lamp, fender flood, assembly

1шт.

22

1312210C2

BULB,Halogen H3, 12V, 55W

lamp, Halogen, replaces 1312210C1 bulb, fender flood, assembly

1шт.

23

1964807C1

LAMP BASE

LENS - reflector, lamp, fender flood, assembly, Includes: Ref. 24

1шт.

24

NSS

NOT SOLD SEPARAT

GASKET - lens, fender flood lamp, assembly

1шт.

25

1964806C1

BEZEL

HOUSING - lamp, front, fender flood, assembly

1шт.

26

A187915

BRACKET

mounting, lamp, fender flood, assembly

1шт.

27

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

Fender flood lamp, assembly

1шт.

28

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking, 8 mm - 1.25, class 10.9, fender flood lamp, assembly

1шт.

29

96901C1

GROMMET

blower motor wire, lamp wiring, fender flood, assembly

1шт.

30

495-81140

WASHER,13/32" x 1 1/4" x .060"

If used, fender flood lamp, assembly

1шт.

31

892-11010

LOCK WASHER,M10

Fender flood lamp, assembly

1шт.

32

825-1410

NUT,M10, Cl 8

Fender flood lamp, assembly

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used, Lower front flood lamp

1шт.

30

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used, Fender flood lamp, assembly

1шт.
