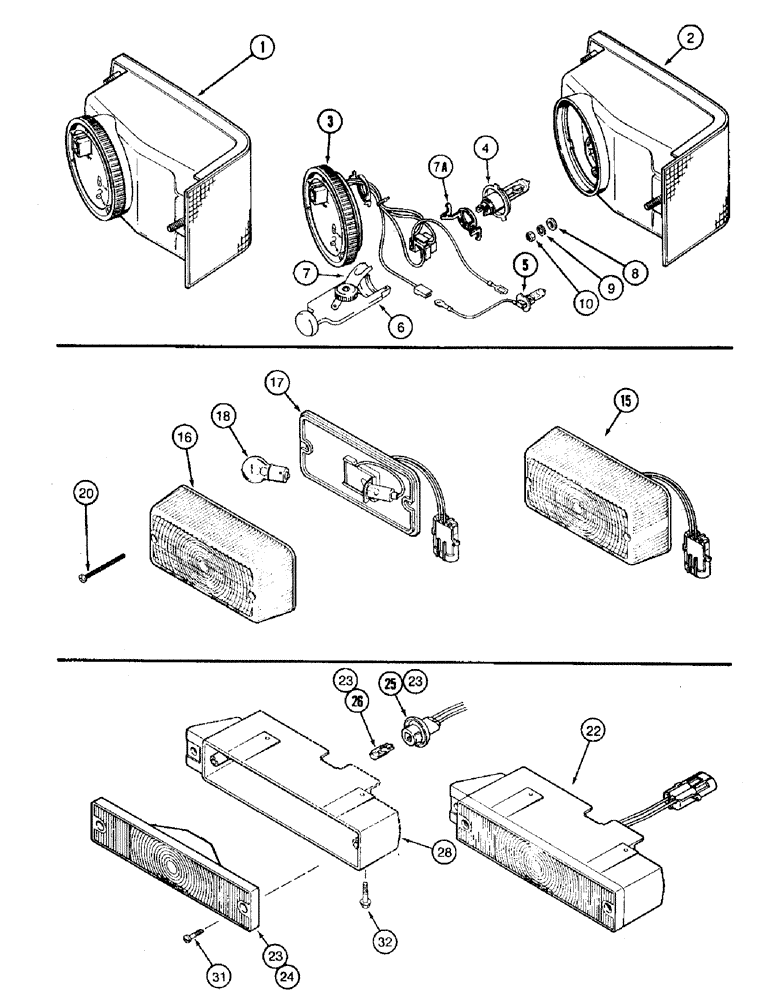

Запчасти Case IH 8950 (4-038) - LAMP ASSEMBLIES (04) - ELECTRICAL SYSTEMS

1

91971C2

LAMP,Halogen, 12V, 35W, Clear

ASSEMBLY - head, left

1шт.

1

91972C2

LAMP,Halogen, 12V, 35W, Clear

ASSEMBLY - head, right, shown, Includes: Ref. 2-7A

1шт.

2

NSS

NOT SOLD SEPARAT

LENS ASSEMBLY - head lamp, left

1шт.

2

NSS

NOT SOLD SEPARAT

LENS ASSEMBLY - head lamp, right, shown

1шт.

3

1964759C1

COVER ASSY

access, head lamp

1шт.

4

91967C1

BULB

lamp, H4, head lamp

1шт.

5

92242C1

BULB

lamp, H3, head lamp

1шт.

6

1964757C1

SUPPORT

HOLDER - bulb, H3, head lamp

1шт.

7

1964758C1

SPRING

holder, bulb, head lamp

1шт.

7a

1983288C1

RETAINER

bulb, head lamp

1шт.

8

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), Head lamp

6шт.

9

492-11025

LOCK WASHER,1/4"

Head lamp

6шт.

10

425-104

NUT,1/4"-20, Cl 5

Head lamp

6шт.

15

92185C1

LIGHT ASSY.

LAMP - warning, flasher, assembly, Includes: Ref.16, 17, 18

4шт.

16

130883C1

LENS

amber, warning lamp, flasher assembly

1шт.

17

NSS

NOT SOLD SEPARAT

BASE - lamp, flasher warning lamp, assembly

1шт.

18

A41264

BULB,#1156, 12V

Flasher warning lamp, assembly

1шт.

20

1974614C2

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 2 1/4"

Special, Flasher Warning Lamp Assy

8шт.

22

1546476C1

LAMP

ASSEMBLY - tail, not available for service, order items 23-31, tail lamp, Includes: Ref. 23-31

2шт.

23

A186202

LAMP

ASSEMBLY - tail, lamp, Includes: Ref.24, 25, 26

2шт.

24

NSS

NOT SOLD SEPARAT

LENS - lamp, tail, assembly

1шт.

25

A186201

WIRE HARNESS

HARNESS - includes socket, tail lamp, assembly

1шт.

26

D71346

TAIL LAMP,12V

lamp, No. 168, tail lamp, assembly

1шт.

28

1283837C1

HOUSING

tail lamp, purchase separately, assembly

1шт.

31

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

Tail lamp, assembly

4шт.

32

253419A1

SCREW,Hex Wshr Hd, #8 - 18 x 5/8"

Special, Replaces 220408A1, tail lamp, assembly

4шт.
