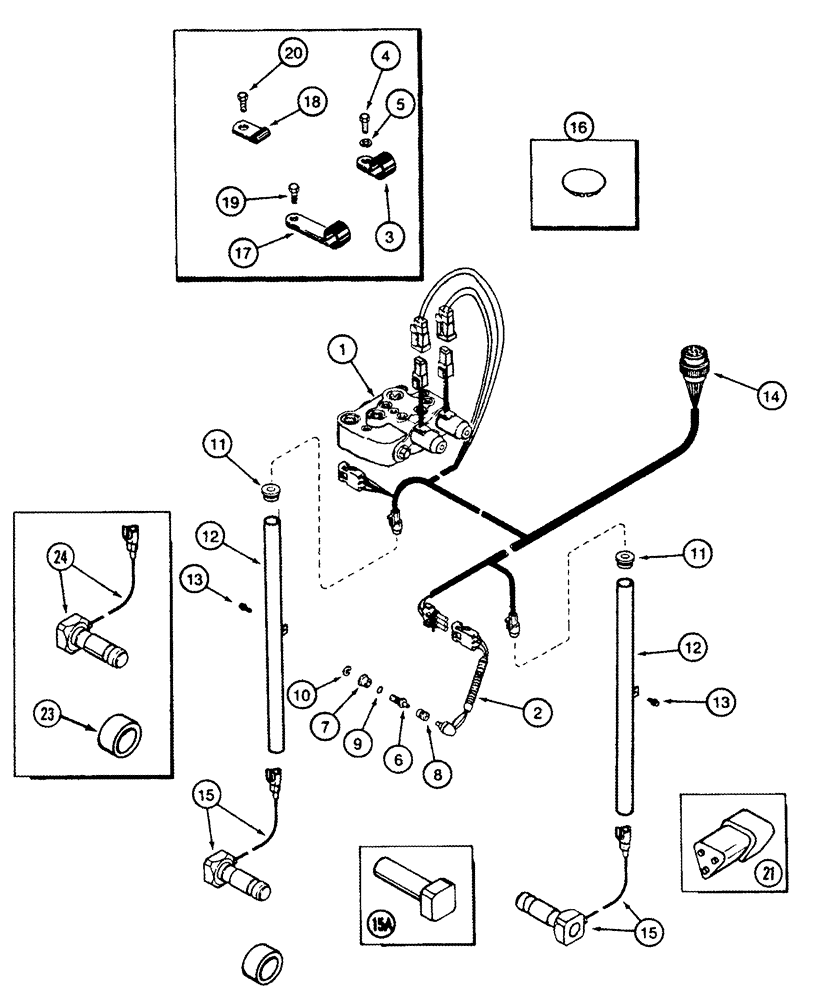

Запчасти Case IH 8950 (4-020) - HITCH CONTROL HARNESSES (04) - ELECTRICAL SYSTEMS

1

251138A2

VALVE

ASSEMBLY - hitch control, parts list Figure 8-38

1шт.

2

114255A2

POTENTIOMETER,1000 Ohm, 8V

Gauge, Position

2шт.

3

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

1шт.

4

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

5

892-11008

LOCK WASHER,8mm ID

1шт.

6

1348212C1

SHAFT

potentiometer sensor

1шт.

7

A164914

BUSHING,12.72mm ID x 15.93mm OD x 15.75mm L

Sensor

2шт.

8

A162622

FLEXIBLE COUPLING

1шт.

9

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

10

100-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

11

1960765C2

GROMMET

harness

2шт.

Part of Control Draft Kit P/N 296784A1

1шт.

12

1348057C1

TUBE,239 mm Length

harness

2шт.

Part of Control Draft Kit P/N 296784A1

1шт.

13

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

Part of Control Draft Kit P/N 296784A1

1шт.

14

235009A2

HARNESS

hitch control, rear chassis

1шт.

15

1964916C3

PIN

lower link, hitch sensing, no longer available, order 346350A1 kit below

2шт.

15a

192718A1

HEADED PIN,37.01mm OD x 121.35mm L

lower link, hitch sensing, no longer available, order 346350A1 kit below

2шт.

16

205-61

HOLE PLUG BUTTON,1 1/2"

button, 1-1/2 inch (without hitch)

1шт.

17

133738A1

CLIP

CLAMP - P-type

2шт.

18

22-611

CLIP,ELECTRICAL

CLAMP - harness

1шт.

19

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

20

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

21

296781A1

CONNECTOR, ELEC

CONNECTOR 3 pin (without draft sensing)

2шт.

22

346350A1

SET OF PARTS

KIT - service, draft sensing pin, Includes: Ref. 23, 24

2шт.

Part of Control Draft Kit P/N 296784A1

1шт.

23

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

lower link

2шт.

Part of Control Draft Kit P/N 296784A1

1шт.

24

NSS

NOT SOLD SEPARAT

PIN - draft sensing

1шт.

Part of Control Draft Kit P/N 296784A1

1шт.

296784A1

PACKAGE

KIT - draft control (used to convert tractor to draft control), Includes: Ref. 11 thru 13 & 22 thru 24 and items 4-6 on Figure 8-26

1шт.
