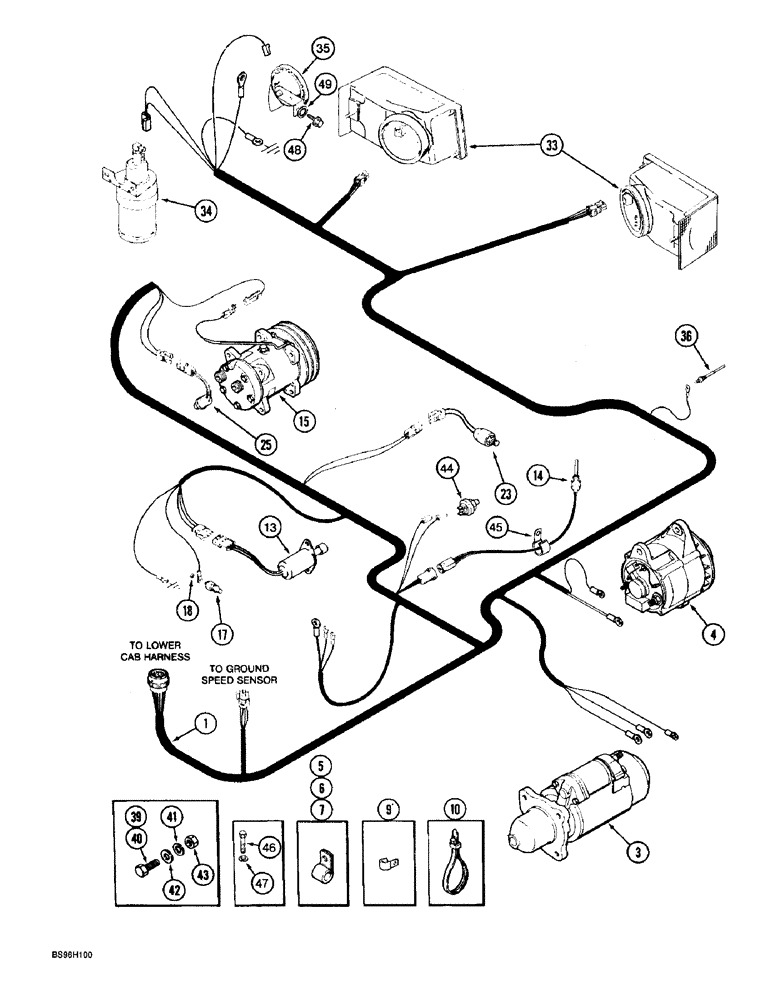

Запчасти Case IH 8950 (4-010) - ENGINE AND FRONT COMPONENT HARNESS, PRIOR TO P.I.N. JJA0076314 (04) - ELECTRICAL SYSTEMS

1

226666A1

HARNESS

engine and front component

1шт.

3

A187728

STARTING MOTOR

ASSEMBLY - engine, parts list Figure 4-32

1шт.

3

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

3

AC187728

CORE-STARTER

Return Part Number

1шт.

3

A187728GV

STARTER MOTOR

Value

1шт.

4

91448C2

ALTERNATOR

ASSEMBLY - engine, 110 ampere, parts list Figure 4-36

1шт.

4

91448C2GV

ALTERNATOR

Value, 110 Amp

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Closed

1шт.

6

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

P-type, 10.3 mm ID

1шт.

7

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type, Closed

4шт.

9

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

harness, open, 12.7 mm ID

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

3шт.

13

J930233

SOLENOID

fuel shutoff, 12 volt, parts list page 3-018, 3-020

1шт.

8930 and 8940 Tractor

1шт.

13

J930235

SOLENOID

fuel shutoff, 12 volt, parts list figure 3-022

1шт.

8950 Tractor

1шт.

14

1987588C1

SENSOR

exhaust gas temperature

1шт.

15

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning, component parts not serviced separately

1шт.

15

86993462R

REMAN-COMPRESSOR

8930, 8940, 8950 all PRIOR TO P.I.N. JJA0076314 (1/97-12/98); Reman For New P/N 1999755C2

1шт.

15

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

15

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

15

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

15

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

15

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

17

A176566

TRANSMITTER

SENDER - coolant temperature

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

23

1546461C2

SWITCH

oil pressure, 10 psi

1шт.

25

232948A1

SWITCH, A/C HIGH PRE

400 psi

1шт.

33

REF

INSTRUCTION

LAMP ASSEMBLY - head, see page 4-39

2шт.

34

185552A2

SOLENOID

ASSEMBLY - ether injection, parts list Figure 2-16

1шт.

35

166166R1

HORN

12 volt, low note, replaces 251984A1 horn

1шт.

36

279476A1

SENSOR

low coolant, coolant level

1шт.

39

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

40

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

41

892-11008

LOCK WASHER,8mm ID

1шт.

43

825-1408

NUT,M8, Cl 8

1шт.

44

1983640C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

45

362667R1

CLIP

CLAMP - retainer, exhaust gas temperature to turbo elbow bracket

1шт.

46

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

Ground Front Harness to Engine Block, If Used

1шт.

47

892-11010

LOCK WASHER,M10

If used

1шт.

48

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

1шт.

49

493-81008

LOCK WASHER,Int Tooth, 5/16"

1шт.

42

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
