Запчасти Case IH 8950 (3-032) - FUEL LINES, MODELS WITH ONE FUEL TANK (03) - FUEL SYSTEM

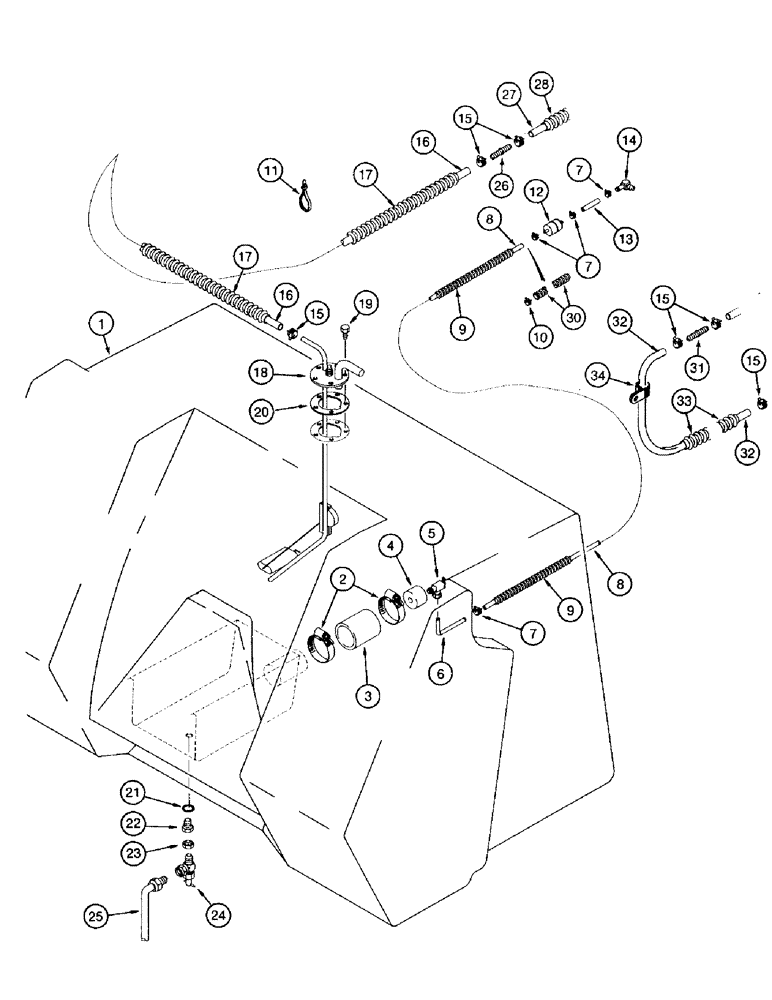

Схема запчастей Case IH 8950 - (3-032) - FUEL LINES, MODELS WITH ONE FUEL TANK (03) - FUEL SYSTEM
11
27
13
14
7
6
7
1
5
32
31
25
21
32
23
15
18
8
24
28
16
9
8
15
30
16
4
15
19
17
22
9
12
7
3
26
15
33
34
20
2
10
17

Артикул

Название

Примечание

Количество

1

96903C4

RESERVOIR

TANK ASSEMBLY - fuel, main, (87 gallon capacity) includes items 21-23, also order 104812C3 gasket, item 20 below

1шт.

2

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

3

130345C1

FUEL HOSE

60mm (2-3/8 inch) long, fuel tank outlet

1шт.

4

196250A1

ADAPTER

fuel line hose to shutoff valve

1шт.

5

196465A1

COCK, DRAIN

VALVE - fuel shutoff

1шт.

6

196262A1

FUEL TUBE,0.5" OD

TUBE - fuel line, at tank

1шт.

7

196252A1

CLAMP

fuel supply

4шт.

8

196251A1

FUEL HOSE,12.70 mm ID x 1700.00 mm, SAE 30R7

Fuel Supply

1шт.

9

196249A1

CONDUIT

SLEEVE - corrugated, 27 (1-1/16) ID x 1000 mm (39-3/8 inch) long, cut from 291260A2 bulk sleeve

1шт.

10

1954474C4

SHIN

CLAMP - at left front cab support

1шт.

11

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch long

1шт.

12

194199A1

FUEL FILTER

fuel, in-line

1шт.

13

196247A1

FUEL HOSE,12.70 mm ID x 78.0 mm, SAE 30R7

Filter to Engine

1шт.

14

197095A1

ELBOW

90 degree, 1/2 barb end x 1/2 inch PT

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, hose

6шт.

16

196266A2

FUEL HOSE,8.34 mm ID x 3750.00 mm, SAE 30R7

Return to Tank

1шт.

17

196245A2

LOOM

SLEEVE - corrugated, 17 (5/8) ID x 3700 mm (145-11/16 inch) long, fuel return

1шт.

18

259110A1

FUEL GAUGE

SENSOR - fuel level, main tank, models without auxiliary tank, also order item 20, replaces 1987599C2 sensor

1шт.

19

193-563

SCREW,SEMS, Hex Hd, #10-24 x 3/4", G5

hex, with external tooth lock, No. 10 NC x 3/4 inch

5шт.

20

104812C3

GASKET,3.05mm Thk

fuel level sender

1шт.

21

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

22

1251790C1

FITTING

ADAPTER - straight, fuel tank drain

1шт.

23

1251791C1

JAM NUT,3/4" - 16 LH Thread

hex, jam, special

1шт.

24

104465C1

DRAIN VALVE

main fuel tank

1шт.

25

104896C1

TUBE,9.52 mm OD, 457.2 mm Length

fuel tank drain, 457 mm (18 inch) long, cut from 74813C1 bulk tube

1шт.

26

195509A1

COUPLING

CONNECTOR - 5/16 inch hose

1шт.

27

225005A1

HOSE,8.34 mm ID x 1650.00 mm, SAE 30R7

8 (21/64) x 15 (5/8) x 1650 mm x (65 inch) long, fuel cooler to main tank

1шт.

28

225006A1

LOOM

SLEEVE - corrugated, 17 (5/8) ID x 1600 mm (63 inch) long

1шт.

30

196248A1

LOOM

SLEEVE - corrugated, 27 (1-1/6) ID x 560 mm (22-3/64 inch) long, cut from 291260A2 bulk sleeve

1шт.

31

195509A1

COUPLING

CONNECTOR - at fuel injection pump

1шт.

32

235337A1

FUEL HOSE,8.34 mm ID x 1345.0 mm , SAE 30R7

Fuel Injection Pump to Fuel Cooler

1шт.

33

196246A1

CONDUIT

SLEEVE - corrugated, 17 (5/8) ID x 1650 mm (65 inch) long, cut from 291260A2 bulk sleeve

1шт.

34

362123R1

CLIP

hose

1шт.

Выбрано товаров: 33
