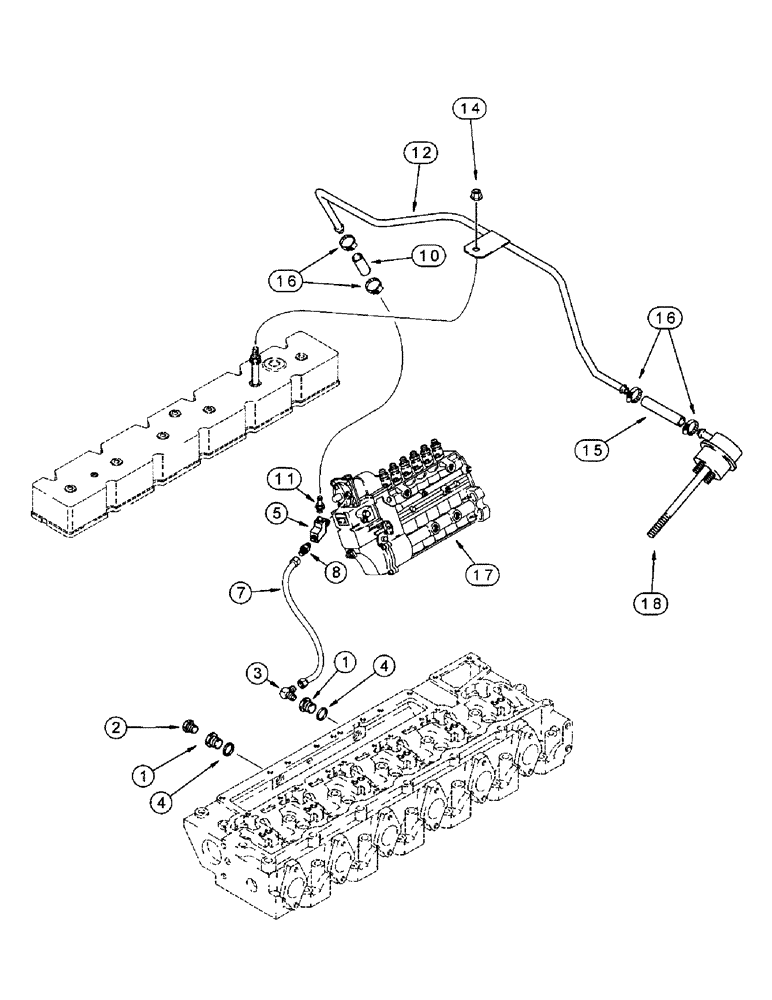

Запчасти Case IH 8950 (3-012) - ANEROID AND WASTEGATE SYSTEM, 6TA-830 EMISSIONS CERTIFIED, 8950 TRACTOR ONLY (03) - FUEL SYSTEM

1

J908110

PLUG

threaded, if used

1шт.

1a

A77428

PLUG

hex socket, 1/4 inch PT, if used

1шт.

2

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT, if used

1шт.

3

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

Compression, 3/16 tube OD x 1/8 inch PT, if used

1шт.

3a

J921594

PLUG

threaded orifice, cylinder head to tee, if used

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, plug to cylinder head

1-2шт.

5

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

street, 1/8 inch female PT branch x female PT x PT, if used

1шт.

5a

J930789

TEE

TEE - 1/8-27 str thread x fem str thread x fem str thread, if used

1шт.

6

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

Compression, 3/16 tube OD x 1/8 inch PT, if used

1шт.

7

J926739

TUBE

aneroid, nylon, if used

1шт.

7a

J934608

TUBE,6.35 mm OD x 220 mm L

aneroid, if used

1шт.

8

222-21

FITTING,7/16"-24 x 1/8" NPTF

Aneroid tube to tee

1шт.

9

222-21

FITTING,7/16"-24 x 1/8" NPTF

Aneroid to aneroid, if used

1шт.

10

J920871

HOSE,1294.00 mm

1294 mm (51 inch) long, if used

1шт.

10a

J920199

HOSE,385.00 mm

If Used

1шт.

11

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER - straight, 1/4 barb end x 1/8 inch PT, if used

1шт.

11a

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

If used

1шт.

12

J929748

TUBE,6.35 mm OD x 577 mm L

wastegate

1шт.

14

J900589

NUT

hex flange, special, 8 mm, aneroid tube to cover mounting stud

1шт.

15

J920199

HOSE,385.00 mm

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj

4шт.

17

J926776

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, components parts not serviced separately

1шт.

18

J531892

ACTUATOR

turbo wastegate, see Figure 2-34 for actuator and component parts

1шт.

J531892C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.
