Запчасти Case IH 8950 (3-006) - FUEL INJECTION SYSTEM, 6TA-830 EMISSION CERTIFIED ENGINE, 8950 TRACTOR ONLY (03) - FUEL SYSTEM

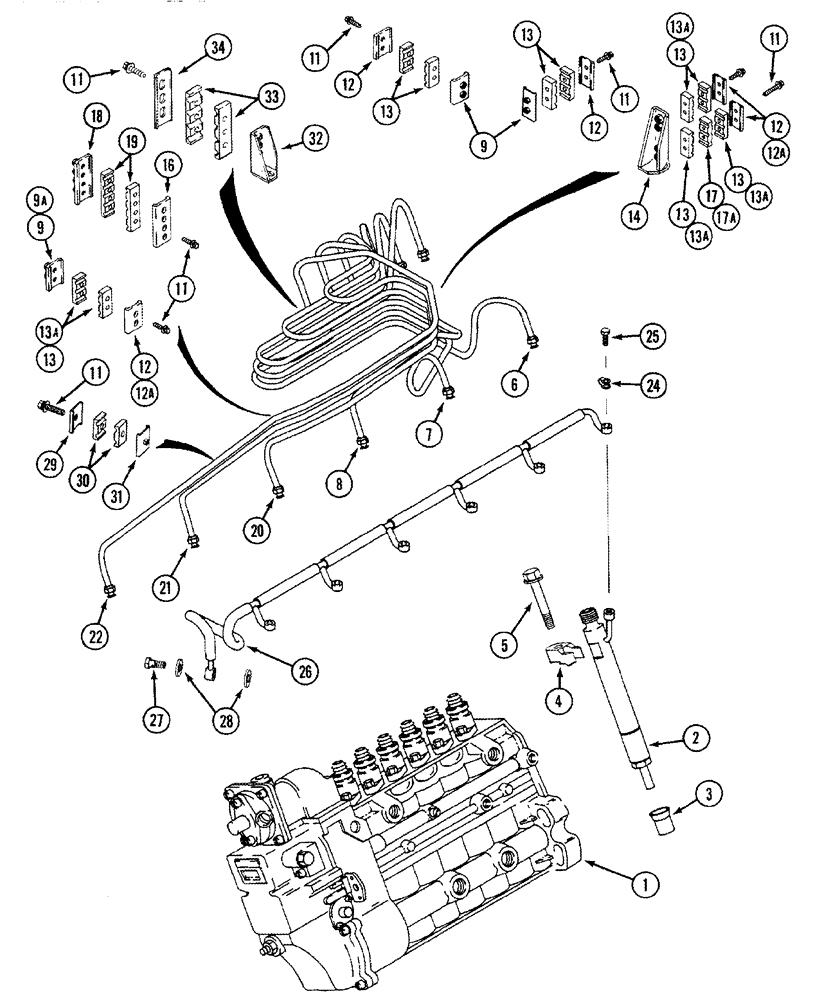

Схема запчастей Case IH 8950 - (3-006) - FUEL INJECTION SYSTEM, 6TA-830 EMISSION CERTIFIED ENGINE, 8950 TRACTOR ONLY (03) - FUEL SYSTEM
13a
11
17
24
2
6
12
13a
18
19
30
4
16
32
13
5
29
9a
12a
11
13
12a
30
13a
34
11
13
1
11
17a
3
27
13a
12
13
11
9
7
11
25
9
22
31
31
26
12
13
33
12
28
13
14
8

Артикул

Название

Примечание

Количество

1

J926776

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, component parts not serviced separately, see Figure 3-22 for mounting parts

1шт.

2

J926787

INJECTOR ASSY.

fuel, parts list Figure 3-24

6шт.

2

JR926787

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

2

JC926787

CORE-FUEL INJECTOR

Return Part Number, Injection Pump

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

J922018

FLANGE BOLT

BOLT - heavy hex flange, 8 - 1.25 x 80 mm, class 12.9

6шт.

6

J929801

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

7

J929802

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J929803

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

3шт.

9a

J917716

BRACE

BRACKET - fuel tube, supply

1шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

10шт.

12

J904519

SUPPORT

tube retaining

5шт.

12a

J904519

SUPPORT

tube retaining

3шт.

13

J917747

CLAMP

fuel tube

10шт.

13a

J917747

CLAMP

fuel tube

6шт.

14

J917776

BRACE

BRACKET - fuel tube

1шт.

15

J920855

CAPTIVE WASHER SCREW

hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

16

J910686

BRACE

tube retaining

1шт.

17

J917748

CLAMP

fuel tube

1шт.

17a

J921415

HOLDER

BRACE - tube

1шт.

18

J917740

BRACE

tube retaining

1шт.

19

J917749

CLAMP

tube

2шт.

20

J929804

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

21

J929805

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

22

J929806

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

24

J903380

SEAL

connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

7шт.

26

J920595

TUBE ASSY.

fuel drain

1шт.

27

J924726

BANJO BOLT

check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing, banjo fitting

2шт.

29

J917717

BRACE

BRACKET - fuel tube

1шт.

30

J917746

CLAMP

fuel tube

2шт.

31

CURJ904711

CLAMP

BRACKET - fuel tube

1шт.

32

J921416

HOLDER

BRACE - tube

1шт.

33

J918786

FIXING BRACKET

CLAMP - vibration

2шт.

34

J918785

BRACE

tube

1шт.

Выбрано товаров: 38
