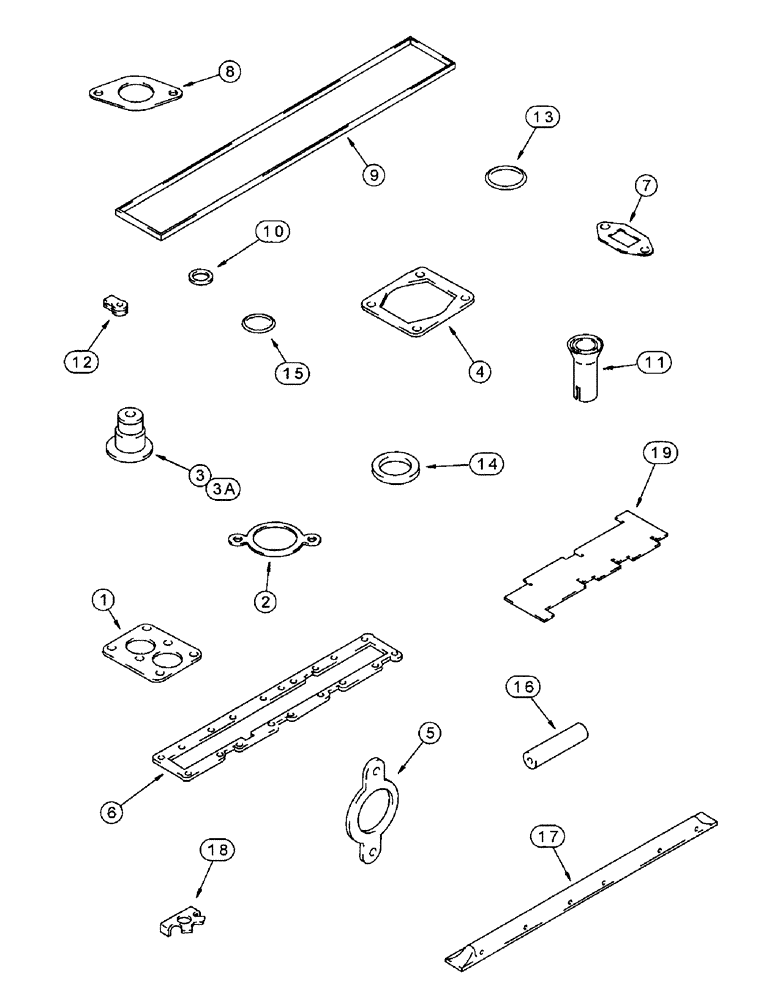

Запчасти Case IH 8950 (2-070) - VALVE GRIND GASKET KIT, 6T-830 AND 6TA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A77842

GASKET KIT

valve grind, Includes: All Ref. No. Below

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on page 2-41.

1шт.

1

J914310

GASKET,0.8mm Thk

thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

outlet tube, water

1шт.

3

J915707

SEAL

intake and exhaust valve stem and guide, used on intake valve only on Emissions Certified Engines

6шт.

3a

J927642

SEAL

exhaust valve stem and guide

6шт.

4

J911941

GASKET

mounting, turbocharger

1шт.

5

J929012

GASKET,0.5mm Thk

exhaust manifold, 0.54 mm thick

6шт.

6

J914311

MANIFOLD GASKET

intake manifold cover

1шт.

7

J931350

GASKET

turbo oil drain tube, replaces J928919 gasket

1шт.

8

J942725

GASKET

turbo oil drain, replaces J819378 gasket

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

valve cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

12

J903380

SEAL

connector, fuel injection nozzle

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Connector to valve cover

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

SEAL - injector nozzle, 2.5 mm thick, 7 mm injector tip

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff valve

1шт.

16

J930827

HOSE,51.00 mm

Breather Tube to Connector, Replaces J918610

1шт.

17

J919677

TUBE

oil, rocker arm

1шт.

18

J914708

LOCKING PLATE

exhaust manifold bolt

12шт.

19

J823921

GAUGE

cylinder head, bolt length

1шт.
