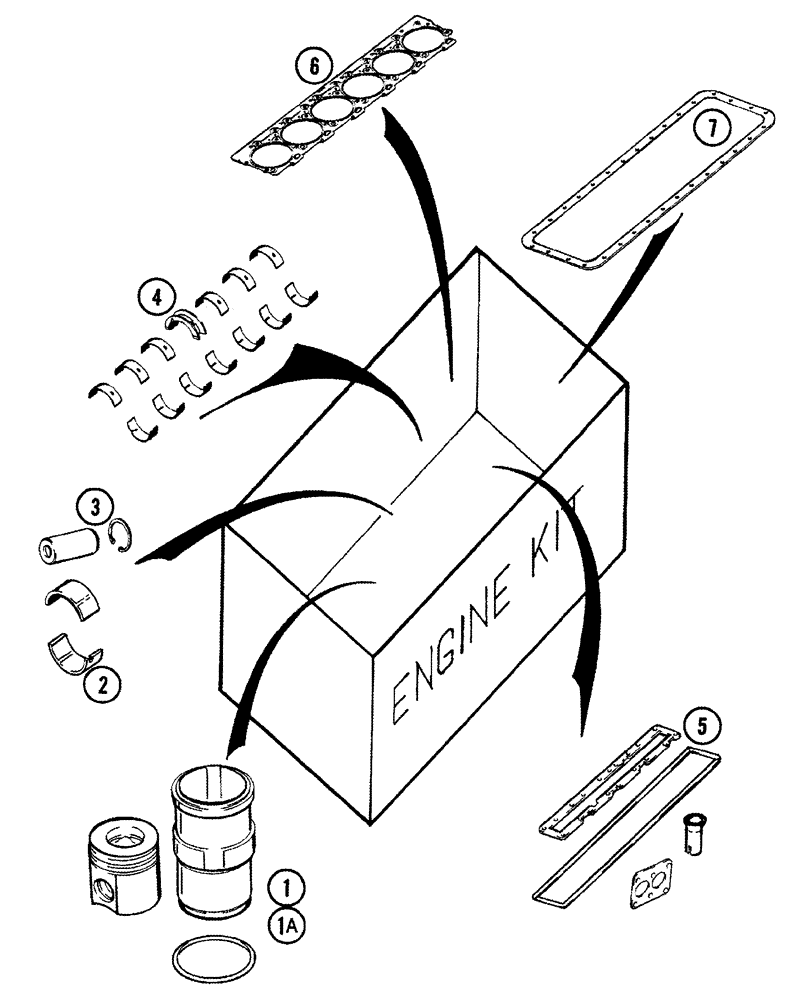

Запчасти Case IH 8950 (2-069A) - ENGINE OVERHAUL KITS, 6T-830 AND 6TA EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A77885

PACKAGE, REPAIR

KIT - engine overhaul, prior to engine serial number 45636466, Includes: Ref. 1-7

1шт.

1

A77854

PACKAGE, REPAIR

KIT - piston and sleeve, engine, see Figure 2-68, prior to engine serial number 45636466

6шт.

2

A77563

BEARING SET

KIT - upper and lower, standard, see Figure 2-68, prior to engine serial number 45636466

6шт.

3

J901597

PIN

piston, see Figure 2-68, prior to engine serial number 45636466

6шт.

4

A77711

BEARING LINER

main, upper and lower set, standard, see Figure 2-62, prior to engine serial number 45636466

6шт.

5

A77842

GASKET KIT

valve grind, see Figure 2-70, prior to engine serial number 45636466

1шт.

6

J935585

GASKET

cylinder head, standard, see Figure 2-40, prior to engine serial number 45636466

1шт.

7

A77679

GASKET KIT

oil pan, see Figure 2-38, prior to engine serial number 45636466

1шт.

A77913

PACKAGE, REPAIR

KIT - engine overhaul, engine serial number 45636466 and after, Includes: Ref. 1-7

1шт.

1a

A77912

PACKAGE, REPAIR

KIT - piston and sleeve, see Figure 2-68, engine serial number 45636466 and after

6шт.

2

A77563

BEARING SET

KIT - upper and lower, standard, see Figure 2-68, engine serial number 45636466 and after

6шт.

3

J901597

PIN

piston, see Figure 2-68, engine serial number 45636466 and after

6шт.

4

A77711

BEARING LINER

main, upper and lower set, standard, see Figure 2-62, engine serial number 45636466 and after

6шт.

5

A77842

GASKET KIT

valve grind, see Figure 2-70, engine serial number 45636466 and after

1шт.

6

J935585

GASKET

cylinder head, standard, see Figure 2-40, engine serial number 45636466 and after

1шт.

7

A77679

GASKET KIT

oil pan, see Figure 2-38, engine serial number 45636466 and after

1шт.
